CE Approval Carbon Fiber Shimano 12s 48V250W 500W Mountain Electric Bike with Air Fork

Product Description

Product Description

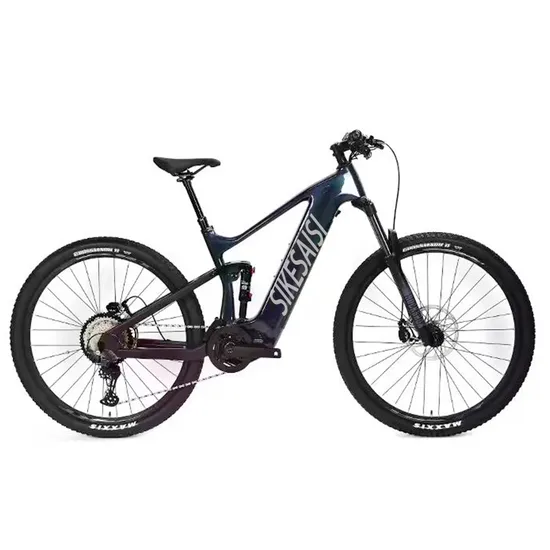

Sram 11s 29inch Bafang 48V 1000W Ultra Light Carbon Fiber Frame Mountain Ebike
The Ultra Pro is our top-of-the-line model, designed to enhance performance. It features a high-quality carbon fiber frame and 29" wheels sourced from the renowned brand Maxxis. With a front Rockshox fork and mid-shock air suspension, it offers excellent shock absorption. The Sram 11-speed derailleur ensures smooth gear shifting, while the anti-rust KMC chain provides durability. Equipped with torque-sensing electric power technology, the Ultra Pro offers a battery-assisted mode and three riding modes, catering to users of all ages.
From flat out on the trail to fully flat over a table, each generation of Sikesaisi riders redefines expectations of what a mountain biker is.
29-inch model: The frame size is suitable for heights of 17-18″175cm-185cm, 19″185cm-195cm, and 21″195cm or above.

Product Parameters

Frame Size	29(27.5)×16 / 18"
Bike Color	DarkGreen / DarkGrayBlack / RedBlack / BlueBlack
Net Weight	23.1KG	24.1KG	23.7KG	24.7KG
Frame	EM10, AM, High modulus Carbon fiber,Inner cables,Thru-axle12*148 Boost,140mm Travel, DNM rear shox200*55,Gloss+UV laser decals
Handelbar Sets	RS, Alu alloy,Matte,Handlebar 31.8×720,Stem 80, Clamps 34.9mm
Seat post	RS, Alu alloy,Matte, 31.6×350mm		KS adjustable lifting with hydraulic, Remote,31.6**395*125mm
Fork	RS, MgAl alloy, Air suspension,150mm,Manual,Thru-axle 15*110 Boost		ROCKSHOX-RECON, Air suspension,150mm,Manual,Thru-axle 15*110 Boost
Head Sets	Alu alloy CNC with sealed Bearings 52*52mm
Derailleur Lever	SHIMANO DEORE/M6100-12S
Rear Derailleur	SHIMANO DEORE/M6100-12S
Cranksets	Matching with Mid Motor, 38T
Cassettes	SUNSHINE-12S,11-50T
Chain	SUMC-12S
Brake	RS-LD400, Alu alloy CNC, 4-piston hydraulic disc, with Ceramic heat sink, 203/203mm
Hub	RS, Alu alloy,4-sealed Bearings,Slotted,Disc,32Holes,Thru-axle F15×110_R12×148mm Boost
Rim	RS, Alu alloy with Double-wall&Rivets, W24×H19mm
Spoke	SHUNJIU, Circular 14G
Tire	MAXXIS, CROSSMARK, 29/27.5×2.25"
Grips	Circular 22.2×120mm, PU leather&locking Ring
Saddle	RS, Comfortable and Thickened for MTB
Pedals	RS, Alu alloy CNC with Bearings for MTB
Motor System	Bafang Mid, M510, 48V250W (36V250W)	Bafang Mid, M600, Mid, 48V500W	Bafang Mid, M510, 48V250W (36V250W)	Bafang Mid, M600, Mid, 48V500W
Max Torque	95 N.m (Peak 130N.m)	120 N.m (Peak 140N.m)	95 N.m (Peak 130N.m)	120 N.m (Peak 140N.m)
Speed Limit	25KMh (max 45KMh)	25KMh (max 45KMh)	25KMh (max 45KMh)	25KMh (max 45KMh)
Pedal Sensor	Torque+Cadence	Torque+Cadence	Torque+Cadence	Torque+Cadence
Battery	Samsung 21700 Li-ion 720Wh, 48V15A(36V20A)	Samsung 21700 Li-ion 720Wh, 48V15A	Samsung 21700 Li-ion 720Wh, 48V15A(36V20A)	Samsung 21700 Li-ion 720Wh, 48V15A
Endurance	140-160KM (pedal assist)	130-150KM (pedal assist)	140-160KM (pedal assist)	130-150KM (pedal assist)
Charging Time	8-9 Hours	8-9 Hours	8-9 Hours	8-9 Hours
Charger	2A, DC2.1	2A, DC2.1	2A, DC2.1	2A, DC2.1
HMI	Bafang, LCD digital, 0-5 Modes	Bafang, LCD digital, 0-5 Modes	Bafang, LCD digital, 0-5 Modes	Bafang, LCD digital, 0-5 Modes
Waterproof	IP X5	IP X5	IP X5	IP X5
Max Load	150 KG	150 KG	150 KG	150 KG

Electric system:

Motor System	Bafang Mid, M510, 48V250W (36V250W)
Max Torque	95 N.m (Peak 130N.m)
Speed Limit	25KMh (max 45KMh)
Pedal Sensor	Torque+Cadence
Battery	21700 Li-ion 720Wh, 48V15A (36V20A)
Endurance	150-170KM (pedal assist)
Charging Time	8-9 Hours
Charger	2A, DC2.1
HMI	Bafang, LCD digital, 0-5 Modes
Waterproof	IP X5
Max Load	150 KG

Bike configuration:

Frame	EM10, AM, High modulus Carbon fiber,Inner cables,Thru-axle12*148 Boost, 140mm Travel, DNM rear shox200*55,Gloss+UV laser decals
Handelbar Sets	RS, Alu alloy,Matte,Handlebar 31.8×720,Stem 80, Clamps 34.9mm
Seat post	KS adjustable lifting with hydraulic, Remote,31.6**395*125mm
Fork	ROCKSHOX-RECON, Air suspension,150mm,Manual,Thru-axle 15*110 Boost
Head Sets	Alu alloy CNC with sealed Bearings 52*52mm
Derailleur Lever	SHIMANO DEORE/M6100-12S
Rear Derailleur	SHIMANO DEORE/M6100-12S
Cranksets	Matching with Mid Motor, 38T
Cassettes	SUNSHINE-12S,11-50T
Chain	SUMC-12S
Brake	RS-LD400, Alu alloy CNC, 4-piston hydraulic disc, with Ceramic heat sink, 203/203mm
Hub	RS, Alu alloy,4-sealed Bearings,Slotted,Disc,32Holes,Thru-axle F15×110_R12×148mm Boost
Rim	RS, Alu alloy with Double-wall&Rivets, W24×H19mm
Spoke	SHUNJIU, Circular 14G
Tire	MAXXIS, CROSSMARK, 29/27.5×2.25"

Detailed Photos

Packaging & Shipping
1)Material:Carton package and plastic film packaging, carton packaging outside.
2)Size: 156cm*28cm*77cm. 1bike per carton.
3)Container size: 200CTN into a 40HQ 85CTN into a 20GP
Attention
Customization is Available
MOQ: 01 pc Our Services International Warehouses (Poland and USA) Quality Controls (ISO 9001, CE) Finished Product Inspection Warranty Available 2 Years Options The Alloy, Titanium, and Carbon Fiber frame is lightweight and easy to ride. Powerful up to ranges from 250-1000-watt rear hub motor in a smaller package. 8Ah-41Ah long-lasting removable Li-ion battery. 100 km maximum mileage & 45 km/hr. maximum speed in a single charge. The pedal-assist mode could be 160KM range. Excellent quality alloy frame/ carbon fiber and titanium. The tires from famous brands like e.g., Kenda, Maxxis, CST, and Continental are used for MTB and Snow Bikes. With SHIMANO or SRAM transmission system. Equipped with Torque-sensing electric power technology. Air suspension fork/Oil suspension fork, Spring suspension fork. Three Riding Modes: ° Electric Mode: Select the Pas assist mode and rotate the throttle to obtain speed without using pedals.
° Assist 5 Modes: Select Pas assist mode, and use the pedal, do not need to select throttle.
° Manual Mode: Use the pedal directly without opening the meter.
