Full-Function CNC Lathe Ad-35/Ad-35b/Ad-45

Product Description

Full-function CNC lathe AD-35/AD-35B/AD-45

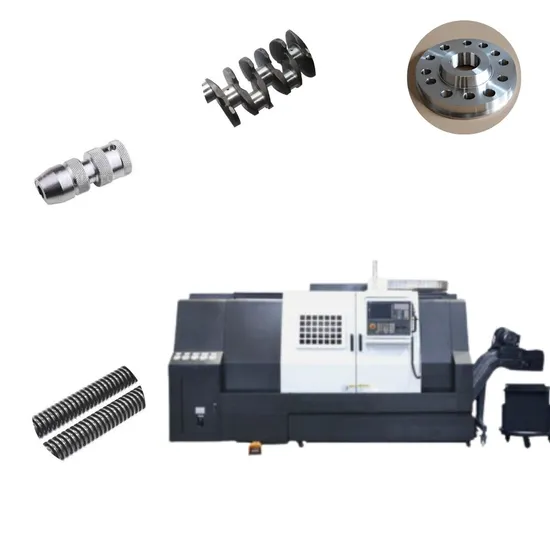

The AD series CNC lathe is a high-peed precision CNC machining equipment produced by introducing Japanese technology. t is suitable for machining various kinds of the shaft, sleeve, and dish-type parts with complicated shapes. such as turning cylindrica-conical surface. circular surface. end surface groove cutting, chamfering, hole reaming,etc. Main structural features as following:
1. The machine bed is cat with a box-shaped structure,adopts one-piece casting technology,completely machined by the pentahedral machining center at a one-time clamping process.the accuracy is maintained well.
2.Adopt high rieidity 45 inclined machine bed. The sliding surface of the cross slide adopts plastic veneer technology to make the feed system rigid,frictional resistance,and other dynamic and static characteristics ln the best condition.A separate sink is attached to prevent leakage and easy to maintain.
3.The hydraulic turret is adopted. and the tool holder can be interchanged at any position. lt can rotate nearby to change the tool at wil. The tool changespeed isfast and the action is stable and reliable.
4.High rigidity spindle structure.there is no gear structure in the spindle box.reatlv reducine noise and vibration.
5.Equipped with hydraulic chuck and high-speed cylinder,and equipped with foot switch,workpiece clamping is convenient, safe, and reliable.
6. Theand -axis eed drives use are-dameter. high-precision bal screws. and are preoaded and pre-drawn. ensure movement and position accuracy.
7.The lathe has ful-chip protection. electric contro cabinet satety device.sate operation door, and reinforced glass desien ofthe operation door to ensure thesafety ofmachinery and personal.
Specification:

Model No.
Item No.	AD-35	AD-35B	AD-45
Specifications
Swing over bed	700 mm	700 mm	850 mm
Max.dia.cutting	550/500 mm	550/500 mm	800/650 mm
Max.length of workpiece	890/1640/2000/3000 mm	1640mm	1500/2000/3000 mm
Max.turning length	780/1530/1890/2890 mm	1530 mm	1420/1920/2920 mm

Feed motion
X-axis travel	305 mm	335 mm	450 mm
Z-axis travel	855/1605/1965/2965 mm	1605 mm	1450/1950/2950 mm
Rapid travel of X	12 m/min	12 m/min	12 m/min
Rapid travel of Z	15 m/min	15 m/min	15 m/min
X/Z feed speed	1260 mm/min	1260 mm/min	1260 mm/min
Spindle
Spindle speed	25~2500 rpm	25~1000 rpm	10~2000 rpm
Spindle power	30/22 kw	22 kw	30/22 kw
Spindle nose	A2-8	A2-11	A2-11
Spindle bore(Dia.)	92 mm	92 mm	131 mm
Size of chuck	12 inch	12 inch	15/18 inch
Front bearing dia.	160 mm	160 mm	200/240 mm
Tool post&Tailstock
NO.of staions	12	12	12
Indexing time	1 s	1 s	1 s
Size of turret	25x25 mm	32x32 mm	32x32 mm
Dia.of bar shank	50 mm	60 mm	60 mm
	706/1456/1816/2816 mm	1456 mm	1400/1900/2900 mm
Quill Dia./travel	110/100 mm	110/100 mm	140/130 mm
Quill taper hole	MT-5	MT-5	MT-6
Other
Main power	46 kw	50 kw	130 kw
Weight	8.0/10.1/11.5/15.5 t	10 t	15/16/18 t
Length	3620/4725/5825/7000mm	5614 mm	6360/6860/7860 mm
Width/Hight	1820/2130 mm	2031/2174 mm	2350/2600 mm
Accuracy/roughness	IT6/Ra0.8 μm
CNC system	Fanuc 0i-TF /GSK988TD/Siemens828

Standard Accessories	Special configuration
Domestic motor;X/Z motor is GSK motor	Other system
Hydraulic tailstock, hydraulic turret, hydraulic chuck	Special hydraulic tailstock, hydraulic rotatingtailstock
X/Zimported precision ball screw	Special required chuck and turret
Spindle bearings and ball screw bearings are Japan NSK	Hydraulic steady rest
Imported electrical components, hydraulic components.(AD25 domestic)	Chip removal machine
Fully enclosed chip guard, air conditioning for electric cabinet	AD35B configuration:GSK 988TD system
	Hydraulic tailstock, tool rest, chuck
	Domestic screw and bearing
	Hydraulic 2-speed transmission
	Full protection
