X6325 China Hot Sale Vertical Turret Milling Machine with Price

Product Description

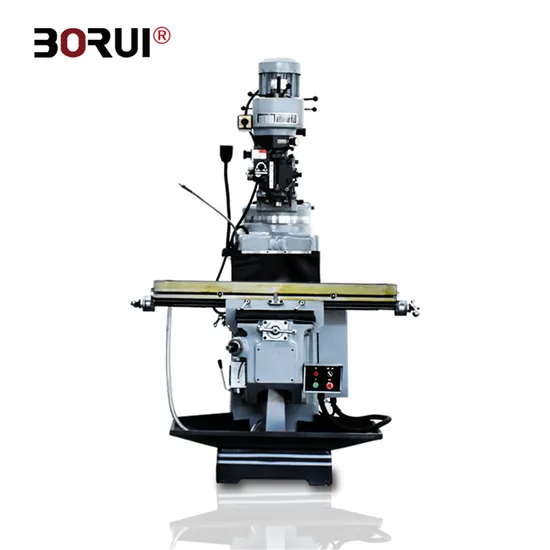

X6325 China Hot Sale Vertical Turret Milling Machine With Price
Product Description
The machine can be widely used for milling, boring, drilling, reaming, tapping and other machining process.
The machine is capable of doing all kinds of processing: milling head can be installed on the arm and so to rotate in both vertical and horizontal directions, and the arm can move forward and backward and rotate 360°on the machine bed, for the processing range can be greater than the table size.
The speed of milling head is rather high and it makes the machine especailly good working with small cutters.
This machine is also equipped with a variety of special tool accessories in order to adapt to different sorts of processing.
The main feature :
1. Robust construction and heavy duty design.
2. The machine body is made of Meehanite cast iron
3. The milling head is made of SCM-21.Imported from Taiwan.
4. The milling head can swing 90° right and left side,45° front and back side.
5. The ram can swing 180° horizontally.
6. The working table and guide rail are heating treated and precision grinding.
7. DRO and dividing head are for option.

The main specification :

SPECIFICATIONS OF TURRET MILLING MACHINE X6325
Item	Unit	X6325	X6325A	X6325B	X6325C	X6325D	XU6325
Table size	mm	254x1270 (10 254x1370 (10					250x1270(10
Longitudinal travel	mm	850 950					770
Cross travel	mm	380	380	400	400	400	400
Vertical travel	mm	400	400	400	400	400	400
T-slot		3x16	3x16	3x16	3x16	3x16	3x16
Distance from spindle nose to table	mm	0-400	0-400	0-400	0-400	0-400	0-400
Ram Travel	mm	470	470	470	470	470	470
Spindle taper		Standard: R8; Optional: ISO30/ISO40			ISO40		R8
Spindle travel	mm	127	127	127	127	127	127
Spindle speed	Rpm	Standard: 16-steps, 50Hz 66-4540; 60Hz 80-5440
		Optional: Variable 60-4200			Variable 60-3600		60-4200
Spindle feed		3-steps: 0.04/0.08/0.15 mm/rev
Main motor	kw	2.25/3HP	2.25/3HP	2.25/3HP	3.75/5HP	3.75/5HP	2.25/3HP
Head Swivel (Right-Left)		90°	90°	90°	90°	90°	90°
Head Swivel (Front-Back)		45°	45°	45°	--	45°	45°
Single milers package	mm	1516x1550x2080
Two milers package	mm	1650x1790x2170
Three milers package	mm	1650x2285x2235
Weight	kg	1450	1280	1320	1490	1490	1450

The Differences Between the X6325 Models
Model	Guideway	Milling Head
X6325	X axis dovetail guideway, Y/Z axis rectangular guideway	3HP Radial milling head (Right-left & Front-back)
X6325A	X/Y/Z axis dovetail guideway	3HP Radial milling head (Right-left & Front-back)
X6325B	X/Z axis dovetail guideway, Y axis rectangular guideway	3HP Radial milling head (Right-left & Front-back)
X6325C	X axis dovetail guideway, Y/Z axis rectangular guideway	5HP Radial milling head (Right-left)
X6325D	X axis dovetail guideway, Y/Z axis rectangular guideway	5HP Radial milling head (Right-left & Front-back)

Standard Accessories:
1.milling chuck sets
2.Reducing sleeve 7:24ISO50/MS4 and 40/MS4 3.Hexagonal Spaner 5 and 10
4.Stay wrench S21-24 and S27-30
5.Horizontal milling cutter arbor 7:24 ISO50 27 6.Horizontal milling cutter arbor 40
7.Draw bar M24 (on the machine)and M16
8.work lamp
9. cooling systerm 10.universal milling head XC63T4A
Optional Accessories: 1.X/Y power feed
2.Z axis lifting motor
3.three axis sino dro
4.QH200 flat vice
Details Display
Packing shipping
For machine: usually by sea;
For documents: by international express, eg. DHL,TNT or EMS.
For packing :Free fumigation plywood packaging steel base
our service
1. Technical support online service provided.
2. Technical files service provided.
3. Machine operation video provided
4. On-site training service provided.
5.Spare parts replacement and repair service provided.
6 All of the questions will be replied within 8 hours
7. If you need to develop products with your own specification, we can help you to work it out.
8. Always be honest, never lie to customer, and never declare anything we don't have

Company Profile
Since 1996,20 years' history for machine tool manufacturing
10 years' history for export
Total 2 manufacturing bases in china
Sino-germany technology cooperation
Production of 8 categories, more than 130 kinds of products
Set up design&research center at TAIWAN
Exported to total 48 countries in the world covered most areas
One-stop shopping for nearly all other types' machine tools
1:How can I choose the most suitable machines ?
A: Please tell me your specifications ,we can choose the best model for you , or you can choose the exact model You can also send us the products drawing ,we will choose the most suitable machines for you .
2: What's your main products of your company?
A: We specialized in all kinds of machines ,such as CNC Lathe Machine ,CNC Milling Machine ,Vertical Machining Center ,Lathe Machines ,Drilling Machine ,Radial Drilling Machine ,Sawing Machine ,Shaper machine and so on .
3: Where is our factory located? How can I visit there?
A : Our factory is located in Tengzhou City ,Shandong Province,277500 China. You are warmly welcomed to visit us.
4. What is your trade terms?
A : FOB, CFR and CIF all acceptable.
5: What's the Payment Terms ?
A : T/T ,30% initial payment when order ,70% balance payment before shipment ;
Irrevocable LC at sight .
5: What's the MOQ?
A: 1 set .(Only some low cost machines will be more than 1 set )
We want to know:
1.What's your Industrial Voltage?
2.We strongly suggest you to tell us size, material of your workpiece for our evaluation, if possible, better to send us workpiece drawing, so that we can recommend you most suitable model!
3.If need CIF Price, please kindly tell us the port of destination.
