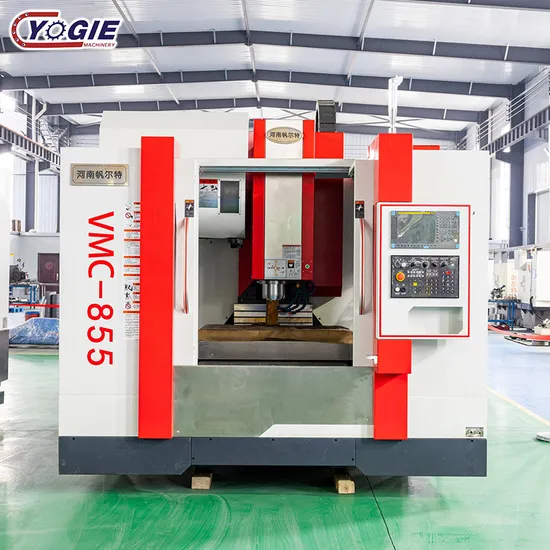

High Efficiency High Speed Vmc 855 Vertical CNC Machining Center 8000 Rpm

Product Description

Product Description

Main Structure
Our company's vertical machining center adopts a two-linear guide rail and one hardened rail structure,which has excellent mold processing performance and strong heavy-duty cutting ability. The base is integrally cast to be strong and stable,powerful and imported wear-resistant plate with low friction coefficient, which is durable. The column is cast in a herringbone shape,which greatly increases rigidity and supports the head for heavy cutting to ensure rigidity and precision.
Spindle
Constant temperature oil spray lubrication of precision gears and bearings to ensure long-term safe use; Japanese-made Hamada brand chrome-molybdenum alloy steel gears, precision grinding, to ensure high-speed high temperature and durable use.
Column
Fully enclosed "Y" type casting structure with the most stable honeycomb rib structure, high quality standard casting machine, two electric furnace aging and two vibration aging.
Base
Super-sized double-layer box-type base, fine shoveling of each joint, multi-point hard contact to ensure the stability and durability of the whole machine. The use of larger-sized screws and line rails than the peers ensures high mechanical rigidity and machine precision.Integrated built-in structure of oil-water separation and chip removal ensures that the whole machine is environmentally friendly and economical.

Product Parameters

Item		Main Parameter
CNC operating system		KND/FANUC/SIEMENS
Working table size	mm	500×1000
Left and right stroke(X)	mm	800
Back and forth stroke(Y)	mm	550
Up and down stroke (Z)	mm	550
Distance from spindle center to column guide	mm	560
Distance from spindle end to worktable surface	mm	110-610
T-slot of worktable (Number/size/spacing)	mm	5-18×90
Spindle taper(model/sleeve diameter)		BT40/Φ150
Spindle Speed(rpm)	rpm	8000
X axis ball screw specifications	mm	40×10
Y axis ball screw specifications	mm	40×10
Z axis ball screw specifications	mm	40×10
Machine tool positioning accuracy (GB/T 20957.4-2007 standard)	mm	0.01
Repeated positioning accuracy of machine tools (GB/T 20957.4-2007 standard)	mm	0.01
X/Y/Z axis rapid shift	m/min	8/12/10
Spindle transmission mode		Synchronous toothed belt drive
Spindle power	KW	7.5
Recommended selection of servo motor parameters	N·M	14/16/16
Bed cushion height	mm	30
Workbench load bearing	kg	500
Light machine net weight	kg	5t

Company Profile
1.professional r&d team with 20 years of experience provide the over all solution for machine and processing.
2.Exporting to more than 50 countries worldwide
3.We own ISO certificate and SGS certification to prove our quality.
Henan Front Intelligent Equipment Co., LTD .
Henan FRT Group (Henan Front Intelligent Equipment Co.,Ltd.),its subsidiaries Luoyang Yujie Industry and Trade Co.,Ltd.,and Luoyang E-find Precision Bearing Manufacturing Co.,Ltd.,benefit from Luoyang's heavy-duty manufacturing advantages.Henan FRT Group has eighteen years experience of exploration and active innovation,has developed into a leading science and technology enterprise integrating scientific research and development, production and manufacturing, sales, technical services, and import and export trade.
FRT Group has been in the machinery industry for eighteen years and is committed to the three major fields of mechanical equipment, mechanical parts and precision bearings. The group has a group of experienced mechanical design teams, production and processing teams, assembly teams, and sales teams, and has excellent production equipments and processing technology, excellent testing instruments, complete product quality assurance system and after-sales service, consistently put product quality and users value first, adhere to integrity and long-termism, the group's core values allow customers achieving success is rooted in the hearts of company personnel.
Our Customers


FAQ
Q:What is your minimum order quantity and warranty?
A:MOQ is one set, and warranty is one year.
Q:How can I choose the most suitable machines ?
A:Please let us know your machining demand or machine size ,we can choose the best model for you , or you can choose the exact model by yourself. You can also send us the products drawing ,we will choose the most suitable machines for you .
Q:What is the payment Terms ?
A:T/T ,50% initial payment when order ,50% balance payment before shipment ; Irrevocable LC at sight .
4.Can your company send the technical personnel to our company and direct our workers for free?
A:When the machine arrive the buyer's installation site, we timely send mechanical and electrical engineers to install according to the buyer's schedule, the buyer undertakes board and lodging of personnel abroad in the process of installation, and also USD200.00 per day per person. The seller will cooperate with the buyer to deal with visa and installation preparation before going abroad.
