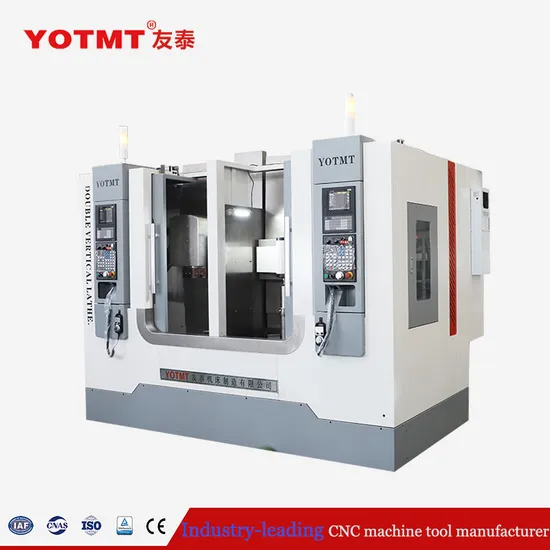

Composite CNC Vertical Lathe End Face Inner Hole Outer Circle Drilling and Tapping

Product Description

Efficient dual spindle threaded parts CNC lathe multi station turret Product Display
Product Details
Backrest type pillar
Vertical structure layout, with a backrest type column placed on the bed, increasing the rigidity of the vertical car by more than 50% and enhancing stability.
Volume lubrication method Stable lubrication for longer distances, protecting the guide rail and screw, and extending their lifespan.
Independent hydraulic oil pump
Capable of providing continuous and stable hydraulic power to ensure the stable operation of the hydraulic system of the machine tool during operation, thereby improving machining accuracy and efficiency.
Product Parameters

ITEM	UNIT	TS-VTL600	TS-VTL750
MAX. rotation diameter	mm	460	560
MAX. machining diameter	mm	350	450
MAX. part height	mm	550	750
MAX. spindle speed	r/mim	3000	2500
XZ positioning accuracy	mm	±0005	±0008
XZ repeat positioning accuracy	mm	±0.003	±0.005
Spindle motor power	kw	11-15	15-18.5
Spindle Specification	-	A2-6	A2-8

Company Profile
Packaging & Shipping
FAQ
· Where is your company ? Can we come to your factory for inspection? Our company is located at 999 Hengyuan South Road, Shannan Street Economic Development Zone, Tengzhou City, Shandong Province. We warmly welcome your visit.
·What are the main products of your company and what are their advantages? We have independently developed industry equipment such as facing and centering machines, CNC double-sided lathes, CNC vertical lathes, dual spindle CNC vertical lathes, cylinder specific CNC lathes, vertical deep hole drilling machines, and double head horizontal machining centers. We have a comprehensive science and technology enterprise specializing in the design, manufacture, sales and service of these products.Our products have high precision, high efficiency, high stability and low energy consumption. We can also customize products according to customer needs.
· Which machine is suitable for my workpiece? Please tell me the specifications of your workpiece so that we can choose the most suitable model for you. If there are drawings, that would be the best, and we can provide better technical solutions.
· How do you ensure the quality of your products and what are your quality certifications? We have a strict quality control system from raw material procurement to finished product inspection. We have advanced testing equipment and professional technicians to ensure the accuracy and performance of our products. We have passed ISO9001 quality management system certification and CE certification. We provide 12 months warranty for our products from the date of shipment.and lifetime after-sales service. We also provide online technical support, spare parts supply, training and maintenance service for our customers. We have a professional after-sales team to solve any problems you may encounter.
· How do you deliver your products and what is your delivery time? We can deliver our products by sea, air or land according to your preference. We have a fast delivery time of 30-60 days depending on the order quantity and product type.
· What are your prices and payment terms? Our prices are competitive and reasonable in the market. T/T, L/C, D/P, D/A, etc.We can also provide you with trade assurance service to protect your order and payment.
