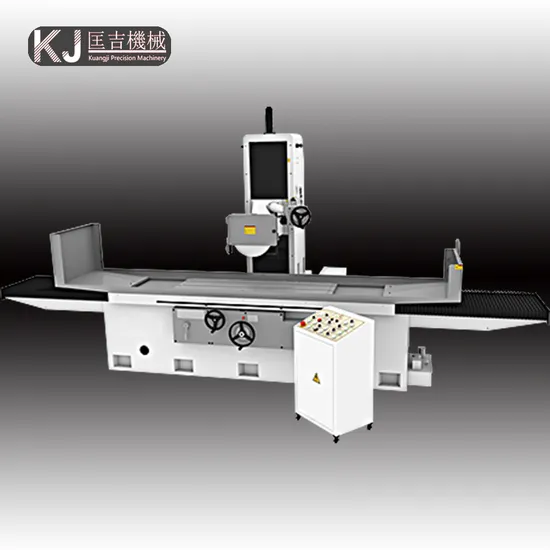

CNC Precision Surface Grinding Machine Psg-7015wms Flat Grinder Movable Column Three-Axis Automatic Series Products

CNC Precision Surface Grinding Machine Psg-7015wms Flat Grinder Movable Column Three-Axis Automatic Series Products

US$75,800.00 1 Piece (MOQ)

Basic Info.

Model NO.
PSG-7015WMS
Type
Surface Grinding Machine
Abrasives
Grinding Wheel
Controlling Mode
CNC
Automatic Grade
Automatic
Precision
Precision
Certification
CE, ISO 9001
Condition
New
Voltage
380V
Trademark
Kuangji
Origin
Shanghai
Production Capacity
300

Product Description

PSG-7015WMS Standard model configuration: Three-axis automatic, up and down Mitsubishi/Siemens servo, direct turbo worm, water tank, electromagnetic suction cup (magnetic strength can be adjusted), front and rear use ball screw (frequency conversion control) electric cabinet 7 inch touch screen, magnetic separator, large wall panel, external handwheel
Technical parameters
Item Specification Unit PSG-5010WMS PSG-5012WMS PSG-6015WMS PSG-7015WMS PSG-6020/7020WMS PSG-7025WMS
Capacity Overall table working area mm 1000x500 1200x500 1500x600 1500x700 2000x600 2000x700 2500x700
Longitudinal table travel mm 1140 1280 1600 1600 2230 2230 2730
Cross feed table travel mm 560 560 660 750 660 750 750
Distance spindle center to table mm 600/(Standard)900/(Extended) 600/(Standard)900/(Extended) 600/(Standard)900/(Extended) 600/(Standard)900/(Extended) 600/(Standard)900/(Extended) 600/(Standard)900/(Extended)
Table load including magnetic chuck kgs 1000 1000 1200 1200 1500 1500
Table & Cross feed T-slot mmxn 16x3 16x3 16x3 16x3 16x3 16x3
Longitudinal table speed m/Min 7-25 7-25 7-25 7-25 7-25 7-25
Slide way 1V1Flat 1V1Flat 1V1Flat 1V1Flat 1V1Flat 1V1Flat
Cross feed on hand wheel lgra mm 0.02 0.02 0.02 0.02 0.02 0.02
lrev mm 5 5 5 5 5 5
Auto cross feed per stroke mm 0.5~12 0.5~12 0.5~12 0.5~12 0.5~12 0.5~12
Power cross feed 50HZ mm 1250 1250 1250 1250 1250 1250
60HZ mm 1500 1500 1500 1500 1500 1500
A few axis nc unit Z aixs servo control Z aixs servo control Z aixs servo control Z aixs servo control Z aixs servo control Z aixs servo control
Grinding wheel Wheel dimension mm 355~500x20~50x127 355~500x20~50x127 355~500x20~50x127 355~500x20~50x127 355~500x20~50x127 355~500x20~50x127
Spindle speed 50HZ R.P.M 1450 1450 1450 1450 1450 1450
60HZ R.P.M 1740 1740 1740 1740 1740 1740
Vertical movement Vertical on handwheel lgra mm 0.002 0.002 0.001-0.02 0.001-0.02 0.001-0.02 0.002
lrev mm 0.1-2 0.1-2 0.1-2 0.1-2 0.1-2 0.1-2
Spindle speedAuto down feed elevation mm 0.001(Min) 0.001(Min) 0.001(Min) 0.001(Min) 0.001(Min) 0.001(Min)
Power head increment mm/min 250 250 / / / 250
Motor Spindle motor HXP 10x4 10x4 10x4 10x4 10x4 10x4
Power elevation motor W 1/2x4 1/2x4 1KW 1KW 1KW 1/2x4
Hydraulic motor HXP 7.5x6 7.5x6 7.5x6 7.5x6 7.5x6 7.5x6
Cross feed motor W 1/4x6 1/4x6 1/4x6 1/4x6 1/4x6 1/4x6
Coolant motor HXP 180 180 180 180 180 180
Dimension & Weight" Machine height mm 2580/(Standard)3180/(Extended) 2580/(Standard)3180/(Extended) 2580/(Standard)3180/(Extended) 2580/(Standard)3180/(Extended) 2580/(Standard)3180/(Extended) 2580/(Standard)3180/(Extended)
Floor space mm 4200X2200 4200X2200 5366x2745 5366x2850 6240x2745 6840x2850
Net weight kgs 5500 5700 6350 7000 8800 9500 9600
Gross weight kgs 6500 6700 7350 8000 9800 10500 10500
