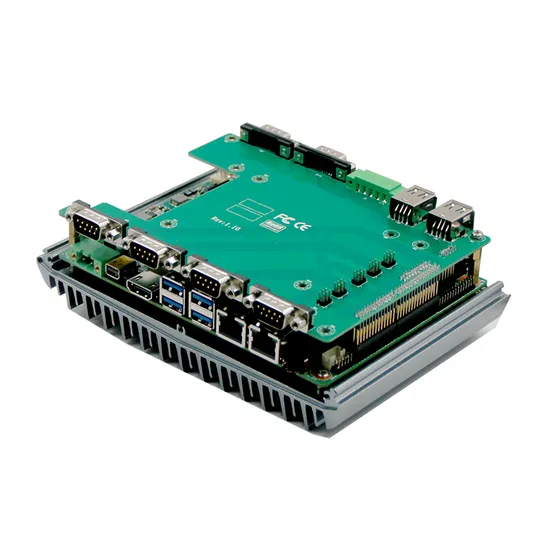

Fanless Computer I5-7200u 8USB 6COM Fanless Mini Computer DDR4 SATA 2LAN I225 HD Minidp Gpio DC9-36V Mini Industrial PC
| US$246.00 | 10 Pieces (MOQ) |
Basic Info.
Model NO.
Q-BOX-E7
CPU Type
Quad Core
Hard Disk Rack Type
Partition
Screen Size
Customization
System Expansion Slot
7 Slot
Touch Screen
Without Touch Screen
Type
IPC
Installation
Horizontal
Rack Unit
1U
Power Supply Type
DC9-36V
Transport Package
Piesia Standard Package
Specification
209*122*70.6mm
Trademark
piesia/oem
Origin
Shenzhen, China
Production Capacity
10000/Month
Product Description
Product Description| Type | Q-BOX-E7 |
| size | 209.4*122.6*70.6mm |
| cpu | Adopt Intel Whiskey Lake-U Celeron,Core i3/i5/i7 serial processor |
| chipset | Intel Whiskey Lake-U single chip |
| Ram | 1*DDR4 SODIMM 260 Socket,support up to 32GB DDR4 |
| Network card | 1*Intel I211AT,1*Intel I219-LM Gigabit LAN |
| audio | HDA ALC662 On board |
| storage | 1*SATA3.0 1*SSD on board 1*Mini-SATA (SSD on board and Mini-SATA optional) |
| color | silver |
| Rear panel i/o | 2*LAN 1*HDMI 1*DP++ 4*COM(COM1,2 can select RS232 or RS485 by jump cap and bios, COM5,6 for RS232) 4*USB3.1 1*DC 1*LINE-OUT/MIC IN 2*WIFI antenna 1*Phoenix terminal 1*DC |
| front panel i/o | 1*fast switch button 1*reset button 1*power indicator 1*hard disk indicator 4*USB2.0 2*COM RS232(COM3can select as RS422/RS485 by bios,COM4 can select RS232 or RS485 by jump cap and bios) 1*GPIO |
| Support System | Windows10 Linux |
