Antenna Protector CATV Isolation Protector

Product Description

Antenna Protector CATV Isolation Protector

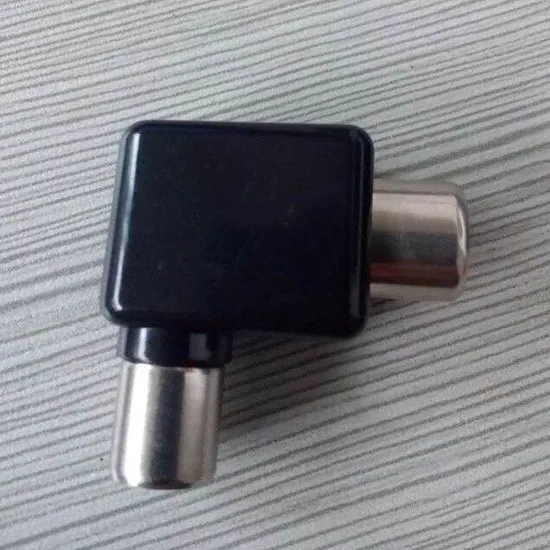

1.1 Applicable Connector: Applicable to DLK RF Isolator PAL, Angle, Slim

1.2 Scope: This specification covers the requirements for product performance and test methods of DLK's RF Isolator PAL, Angle, Slim of the part numbers specified as bellow.

2.0 Condition

2.1 Temperature range :-10ºCto65ºC.

2.2 Humidity range: 90%to95%.

2.3 Atmospheric Pressure : 60~106kPa

3.0 External appearance and material:
3.1 The surface of products are flat, no burr and flash, etc. The surface of punching and terminal shall not be found metabolic, coating shall not be fell off.
3.2 Up to the table of material origin.

3.3 Outward appearance shall be good without such injurious problem structure shall be meet the design and dimensional requirements of drawing

Item ()	Test Description ()	Test Methods ()	Requirement ()
4.1	Signal Loss ()	Frequency Range:48.5MHz~470MHz (:48.5MHz~470MHz)	-1.5dB maximum (-1.5dB)
		Frequency Range:470MHz~870MHz (470MHz~870MHz)	-2.5dB maximum (-2.5dB)
4.2	Insulation Resistance ()	Under the application of DC 500V between the signal terminal and ground terminal (DC 250V)	100MΩ minimum (100)
4.3	Dielectric Strength ()	Under the application of 1000V AC (5mA) between the signal terminal or ANT terminal and out put terminal, lasting 1 minute. (ANTAC 300V 50HZ (5mA),1)	No abnormality (,)
