Manufacturer Supplies Single Shaft Paddle Blender Mixer for Powder Mixture
| US$5,000.00-20,000.00 | 1 Piece (MOQ) |
Basic Info.
Model NO.
TDS-300
Application
Granules, Powder
Application Area
Agricultural Chemicals, Chemical, Food, Pharmaceutical
Certification
CE, ISO
Condition
New
Main Material
Stainless Steel
Mixing Capacity
100-250L
Mixing Drum Shape
Circular Groove
Power
5-10KW
Special Features
Safety Interlock System, Timer Control
Speed Range
50-59 R/min
Working
High Speed Mixer
Mixer Type
Powder Mixer
Stirring Type
Gravity
Layout Type
Horizontal
Operating Type
Continuous Operating
Warranty
1 Year
Transport Package
Wooden Case
Specification
300L
Trademark
TANDY
Origin
Shanghai, China
HS Code
8479
Production Capacity
60PCS/Month
Product Description
Manufacturer Supplies Single Shaft Paddle Blender Mixer For Powder Mixture Main Technical Data| Model no. | Effective volume(L) | Loading coefficient | Power(KW) | Rotate speed(R/min) | Dimension(mm) | Weight(kg) |
| TDS-200 | 200 | 0.6-0.8 | 4.0 | 53 | 1800X900X1110 | 430 |
| TDS-300 | 300 | 0.6-0.8 | 5.5 | 53 | 1900X1000X1250 | 680 |
| TDS-500 | 500 | 0.6-0.8 | 7.5 | 45 | 2050X1200X1250 | 890 |
| TDS-1000 | 1000 | 0.6-0.8 | 11.0 | 45 | 2500X1200X1350 | 1360 |
| TDS-1500 | 1500 | 0.6-0.8 | 15.0 | 39 | 2950X1350X1400 | 1780 |
| TDS-2000 | 2000 | 0.6-0.8 | 18.5 | 39 | 3330X1500X1650 | 2260 |
| TDS-3000 | 3000 | 0.6-0.8 | 30.0 | 31 | 3650X1880X1950 | 3150 |
| Pls feel free to contact us if you need more technical parameters! | ||||||
2. Location : Songjiang district , Shanghai
3. Selling markets: Europe, American, Australia, Asia, Africa
4. Customized: Available for customized designs
5. Delivery time: 15 - 30days
6. Warranty period: 1 year
Product Description

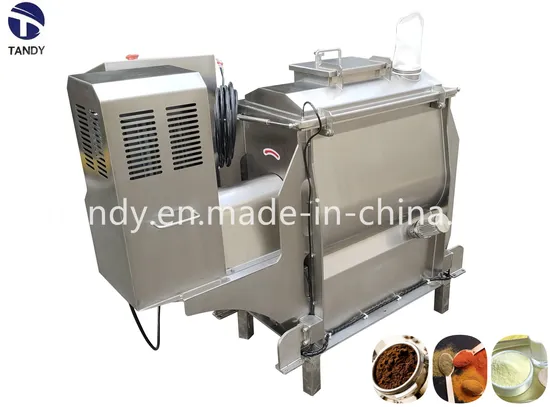

The single shaft paddle mixer is suitable for powder and powder, granule and granule or add a little liquid to mixing. It is widely applied in nuts, beans, feed or other kinds of granule material. The machine have different angle of blade inside thrown up the material thus cross mixing. Main Features 1. Rotate reversely and throw material to different angles, mixing time 1-3 minutes.
2. Compact design and rotated shafts be filled with hopper, mixing uniformity up to 99%.
3. Only 2-5mm gap between shafts and wall,open-type dischrging hole.
4. Patent design and ensure the rotating axle & dischrging hole with zero leakage.
5. Full weld and polishing process for mixing hopper, without any fastening piece like screw, nut.
6.The whole machine is made by 100% stainless steel to make its profile elegant except bearing seat.
