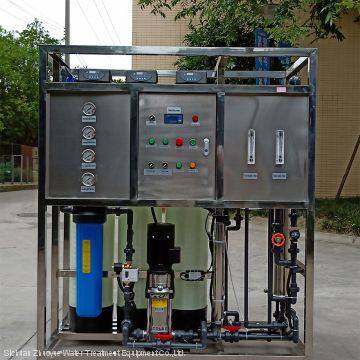

PLC Touch Screen Double Stage Reverse Osmosis Water Treatment Machinery

Product Details

Product Description

Product Description
Product Description
ZYRO water plant uses reverse osmosis technology to remove more than 99% ions, bacteria, salt, microorganism, heavy ions, colloid,emdotoxin and other particles in the water. It can efficiently purify tap water, borehole water, spring water or well water to pure water for chemical industry, pharmacutical, hospital cleaning room, food making, drinking, etc. Meanwhile, as an factory, we can accept customize.
Feed Water Requirements of RO Water Plant
1.Total water inlet : ≥ 1 m³/h, Raw water pressure:≥0.3MPa (If less than 0.3MPa,the raw water tank and constant pressure system are needed)
2.Water yield : 1/2 m³/h @25℃
3. Pure water quality: Condustivity ≤15µs/cm @25℃
4.Full automatic operation : The system realizes automatic operation by means of liquid level interlocking, in which the pretreatment system is fully automatic (or manually operated)
Technical Process of Water Fillter System
1. Raw water pump-- provide the pressure to quartz sand filter/active carbon filter.
2. Quartz sand filter-- get rid of turbidity, suspended matter, organic matter, colloid, ect
3. Active Carbon filter--Remove the color, free chloride, organic matter, harmful matter, ect.
4. Softener filter--exchange "ions" of calcium and magnesium with the most common and easiest method.
4.1. Brine box-- regeneration
5. Security filter--prevent large particles, bacteria, viruses into RO membrane, accuracy is 5um.
6. High pressure pump-- Provide the high pressure to RO membrane.
7. RO membrane-- remove more than 99% ions, bacteria, salt, microorganism, heavy ions, colloid,emdotoxin and other particles in the water.
8. UV lamp/ ozone generator-- disinfection and sterilization.
Model List of RO Water Plant

No.	Model	Water Yield (L/H)	Voltage/ Power (V/Kw)	Body Size (L*W*H mm)	Water Tank (L/Material)
1	ZYRO-250	250	380/1.2	1500*600*1500	250/PE/SS
2	ZYRO-500	500	380/1.3	1500*600*1500	500/PE/SS
3	ZYRO-1000	1000	380/1.4	1500*800*1500	1000/PE/SS
4	ZYRO-1500	1500	380/1.95	1600*800*1600	1500/PE/SS
5	ZYRO-2000	2000	380/3.15	1600*800*1600	2000/PE/SS
6	ZYRO-3000	3000	380/5.6	1800*1000*1800	3000/PE/SS
7	ZYRO-4000	4000	380/5.65	1800*1000*1800	4000/PE/SS
8	ZYRO-5000	5000	380/9.15	1800*1000*2000	5000/PE/SS

Features and Advantages of RO Water Plant
1. Standard integrated appearance, compact structure saving floor space
2.Standard blue glass steel pretreatment tank, beautiful appearance, higher cost of appearance
3.Manual and automatic control in case of any emergency to facilitate the usage in emergency situations. Higher cost of electronic control
4, Electrical control with stainless steel 304 rack and shell, with a full closure plate shape, compared to the semi-closed plate shape, higher cost
5, The entire department uses ultra-pure water for ultra-clean PVC pipe fittings, low dissolution, prevent the secondary pollution of pure water
6. The electronic control device adopts one power and one control. Each electronic component has independent layout and does not interfere with each other. The failure rate is lower, and the extended function wiring port is reserved to facilitate the customer's new functions and use later.
7. The pre-treatment regeneration washing function is interconnected with the host electronic control to ensure that the pre-treatment system is flushed and reproduced more fully, and the replacement frequency of consumables is reduced, and the service life is longer.
More Details of RO Water Plant
Water Application of RO Water Plant
The ultrapure water equipment in the chemical industry is mainly used in the solvent industry for solvent water, chemical analysis, chemical materials, product cleaning, material separation, concentration, purification, waste recovery and other occasions.
1. Hospital
2. Pesticide, fertilizer and other chemical pure water equipment
3. daily chemical pure water equipment
4. chemical reagents pure water equipment
5. fine chemical pure water equipment
6. shampoo, hand soap
7.beauty hair dye, toothpaste daily necessities
Company Information
RO Water Plant
Sichuan remarkable water treatment equipment co. ,ltd is a comprehensive water treatment enterprise that covers scientific research, design, market, installation and after selling and specialized in researching lab-using ultrapure water filter, medical-using pure water filter, industry-using pure water filter and some related water treatment filter. The code of integrity first and customer supreme consistently be our market conception from starting. We have provided lots of high-class water treatment solutions for colleges and universities, research and development institution, agriculture, environmental protection, medical treatment, biology, architectural material industry, chemical engineering, foods, electron and energy and so on.
Packaging & Shipping
RO Water Plant
FAQ
1.Q:Are you a factory?
A:Yes,our factory is in Sichuan, China,warmly welcome to visit us.
2.Q:Do you provide after-sale service?
A:Sure, we have a good after sale service.
3.Q:what is your advantage?
A:We have the high quality ,and the good factory price.
4.Q:How can you control the quality and delivery?
A: All our machines will be tested before packaging. wooden packaing is strong and safety for long delivery .
