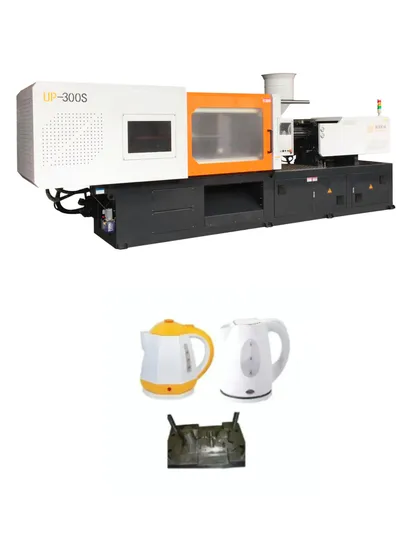

Plastic Parts CNC Molding Machine up-300t with 16kw Heating Power
| US$29,000.00-32,000.00 | 1 set (MOQ) |
Basic Info.
Model NO.
UP-300T
Type
Tube Head Injection
Structure
Horizontal
Plastic Type
Thermoplastic
Plasticizing Way
Screw Type
Clamping Way
Hydraulic
Automation
Automatic
Computerized
Computerized
Certification
CE, ISO9001:2008
Heating Power
16kw
Machine Weight
18.5t
Tank Volume
400L
System Pressure
16MPa
Transport Package
Film Packing
Specification
6.3*1.75*2.37
Trademark
UP
Origin
China
HS Code
8474809090
Production Capacity
500sets Per Year
Product Description
Ningbo Union Power Machinery Co., Ltd.
Our factory, located near Shanghai in Ningbo, specializes in manufacturing injection molding machines, molds, and auxiliary equipment. Our injection molding machines range from 50 to 3000 tons with a tensile resistance of up to 40000 g. Our machine family includes:
Standard Injection Molding Machine
PVC Injection Molding Machine
PET Injection Molding Machine
Two-Color Ejector
Fully Hydraulic Injection Molding Machine
All-Electric Injection Molding Machine
China Servo Injection Molding Machine
Key Specifications:
A. Modulus of Capacitance: Includes position, size, maximum allowable modulus, and minimum closure thickness of the injection molding machine guide pillar (Green column).
B. Nozzle Parameters: Spherical diameter, aperture, outer diameter, maximum extension length, and positioning aperture of the nozzle.
C. Code Mold Parameters: Code mold hole and slot size.
D. Ejection Mechanism: Ejection point position, ejector rod diameter, and optional ejection force and stroke.
E. Mold Opening Stroke and Maximum Opening Distance.
For high-quality injection molding solutions, trust Ningbo Union Power Machinery Co., Ltd. for reliable and efficient equipment.
| Technical Parameters | Model UP-300T | ||
| Injection Unit | A | B | C |
| Screw diameter (mm) | 60 | 65 | 70 |
| Shot Volume (cm3) | 806 | 946 | 1096 |
| Injection weight (g) | 725 | 851 | 987 |
| injection pressure (Mpa) | 170 | 145 | 107 |
| Screw speed (rmp) | 220 | ||
| Clamping Unit | |||
| Clamping force (KN) | 3000 | ||
| Open stroke (mm) | 600 | ||
| Max Mold height (mm) | 620 | ||
| Min Mold height (mm) | 200 | ||
| Space between tie bars(mm) | 620*620 | ||
| Ejector force (KN) | 70 | ||
| Ejector stroke (mm) | 150 | ||
| Others | |||
| Pump pressure (Mpa) | 16 | ||
| Motor/driving power (KW) | 30(29) | ||
| Heating power (KW) | 18.5 | ||
| Machine dimension (M) | 6.3*1.75*2.37 | ||
| Machine weight (T) | 9.3 | ||
| Oiltank cubage (L) | 400 | ||
