13mm x 305m fibreglass fish conduit cable push rod detectable duct rodder

Product Description

Product Description

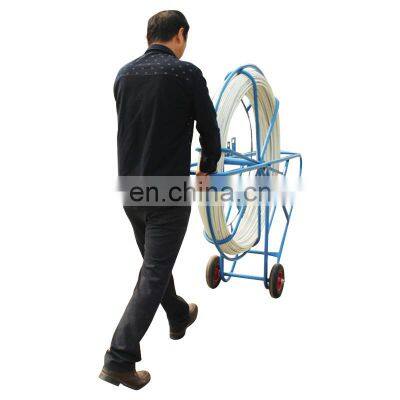

Product Description13mm x 305m fibreglass fish conduit push rod detectable duct rodder Duct rodder ,also called fiberglass duct rodder,is a powerful auxiliary tool used for rope traction in the pipe. Smooth and flexible surface of the duct rodder can easily make the rope or cable pass through the narrow channel. Glass fiber reinforced plastic wire threading appliance has the advantages of savin time, saving effort and improving efficiency. High temperature strength and bending properties, which make it to go through narrow pipes easily.Outer protect layer are made of ABS, which has good anti-UV capabilityIt is selected as the special tool for pulling cables and optical cables in many fields such as telecommunications, power industry and construction. It also can measure the length of the pipeline, pipe cleaning, acceptance of pipeline.Specification Specification of Fiberglass duct rodder Size Rod diameter (mm)φ4 φ4.5 φ6 φ7 φ8 φ9 φ10 φ11 φ12 φ13 φ14 φ15 φ16 φ18Rod Length (m)10-500mFrame size (cm)48*44*16; 64*50*17; 98*90*40; 100*111*45; 122*118*45; Material Fiberglass rod inner Extruded by fiber glass and high strength resin at high temperatureFiber glass rod outerHigh Density polyethylene coatingMetal FrameSteel with high-temperature sprayed plastic or hot dip galvanizedPhysical PropertyFiber glass content75-80%Density> 1.9gr/cm3Working environment-40° C to +80° CMinimum Pulling strength4000N +/-5%Consistency of rod137gr/mFlexural Modulus> 46.500MpaElongation at break2.5-3%Min Bending Radius388mmDetails ImagesRelated ProductsContact
