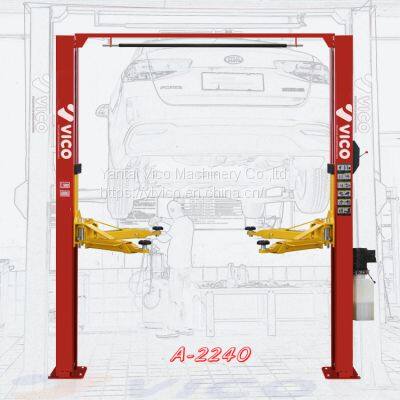

Hydraulic Car Lift Tyre Repair Machine 4.0 Tons Gantry Two Post One Side Manual Release Lifter 2 post Design # V-LZL-A-2240

Product Details

Product Description

Product Description
Product Description
V-LZW-A-2240
(1) Clear floor design, save space. (2) Adopt double cylinder, 4x4 higher and stronger chain, the wire rope balance system. (3) One side manual release. (4) Rubber pad door-opening protection. (5) Secure fence protects the toes. (6) Rubber support pad adopts double helix adjustment height and height increase joint. (7) Limit switch. (8) The arm adopts two stages or three stages design, larger range adjustment, suitable for different vehicle chassis, three-node arm optional installation.
Detail Photos
Technical specification

Hoist Model	Floor Clear /One Side Manual Release V-LZL-A-2240V-LZL-A-2240
Lifting Capacity	4000kg
Lifting Height	1850mm
Min. Height	120mm
Pass width	2500mm
Column width	2790mm
Total width	3320mm
Lifting Time	50s-60s
Motor Power	2.2kw-380v or 2.2kw-220v
Oil Pressure Rating	24MPa
Weight	650kgs

Package
Standard Export Package
Company profile
We mainly focus on offering auto body collision repair equipment and tools : Painting booths, auto body frame machines, car lifts , prep station, tire changer, tire balancer , wheel alignment machine, scissor lifts, measuring machine.
