Hollow Machine, Brick Molding Block Making Automatic Hydraulic Forming Machine
| US$120,000.00-300,000.00 | 1 Set (MOQ) |
Basic Info.
Model NO.
QP800
Type
Hollow Block Making Machine,
Condition
New
Method
Hydraulic Pressure
Brick Size
400*100*200 mm, 200*100*60 mm
Automatic
Yes
Brick Raw Material
Concrete
Key Selling Points
Easy to Operate
After Warranty Service
Video Technical Support
Core Components
PLC, Pressure Vessel, Motor
Machinery Test Report
Not Available
Processing
Brick Molding Machine
Dimension(L*W*H)
6430*2250*4760mm
Warranty of Core Components
1 Year
Local Service Location
Viet Nam, India, Kenya
Production Capacity (Pieces/8 Hours)
25600 PCS/8hours
Video Outgoing-Inspection
Not Available
Trademark
Qunfeng
Origin
China
Production Capacity
100 Set/Sets Per Year
Product Description
Product Description

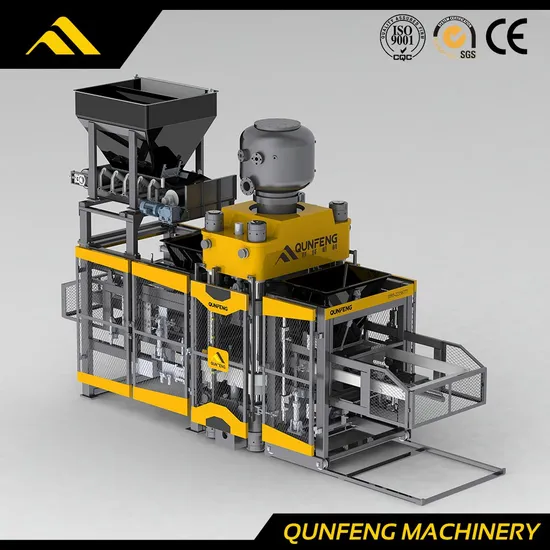

QP800 Automatic hydraulic pressing machine
Adopting servo electro-hydraulic control system, it has features of energy conservation, silent operation and high efficiency.The feeding efficiency is higher by adopting the concealed high frequency micro-vibration and variable frequency feeding system.It can produce high-strength paving bricks with topping color, slope-protect bricks, terrazzo tiles, clay bricks, etc.
Adopting servo electro-hydraulic control system, it has features of energy conservation, silent operation and high efficiency.The feeding efficiency is higher by adopting the concealed high frequency micro-vibration and variable frequency feeding system.It can produce high-strength paving bricks with topping color, slope-protect bricks, terrazzo tiles, clay bricks, etc.
Main technical features
1,Energy saving: adopt hybrid servo motor that's 30% more energy-efficient than regular one
2,Accurate material feeding:The feeding cart is able to adjust material metage according to different size of bricks .
3,Low noise, material feeding fast and well-proportioned:adopt servo motor on feeding cart and vibration table light shock,system to fasten the,feeding speed and reduce noise.
| Maximum pressure | 8000KN | |
| Dimension(LxWxH) | 6430×2250×4760mm | |
| Rated hydraulic pressure | 31.5MPa | |
| Static pressing | adopt feeding vibrating, pressing formation | |
| Adaptable block height | 45~150mm | |
| pallet size | 1100x950mm | |
| cycle time | 18-26 s/pall | |
| main machine power | 96.9 kW | |
| output | holland brick(200×100×60mm) | 28pieces |
| | solid brick(240×53×115mm) | 39pieces |
