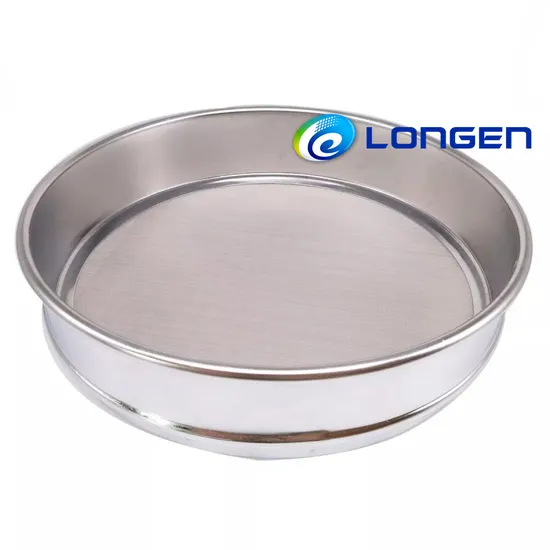

High Precision Stainless Steel Soil Sieve Set Lab Standard Test Mesh Sieve

Product Description

Wholesale Stainless Steel Woven Wire Mesh Sieves
Introduction about Test Sieve

Products	Sieve
Material	Sus304, SS316 Stainless steel, brass, or customized...
Mesh count	Plain weave 1-635 mesh Dutch weave to 500 x 3500 mesh
Micron size	1 micron - 2000 micron
Sizes	Diameter: 6 8 10 12 24 inches, 15cm 20cm 30cm 35cm 40mm or customized Height : 5mm, 8cm or customized
Applications	Lab/laboratory test sieve, sand, soil sieve and others

Structure: 1) Screen frame: Polishing or not, according to customer requirements 2) Screen cloth: Wire cloth, perforated plate, welded sheet 3) Screen cloth and frame are fixed by welding, can withstand temperatures up to 300 degree.

WOVEN WIRE SIEVES
Woven wire mesh sieves are the most widely used test sieves for all types of laboratory sampling and particle size analysis.

Type of mesh	woven wire
Diameter	100 / 200 / 300 / 400 / 450 mm 8 / 12 inches
Mesh sizes	125 mm - 20 µm
Frame material	stainless steel
Mesh material	stainless steel
Height	full and half (200 / 300 mm8 / 12 inches) height version

PERFORATED PLATE SIEVES
Perforated plate sieves can be supplied in frame materials of stainless steel or brass (*200 and 300mm) and are all manufactured to the highest engineering standards to ensure quality and accuracy.

Type of medium	perforated plate with square or round holes
Diameter	200 / 300 / 400 / 450 mm
Aperture sizes	125 - 1 mm round hole125 - 4 mm square hole
Frame material	stainless steel / *brass
Perforated plate material	stainless steel / plated steel
Height	full and half height version
