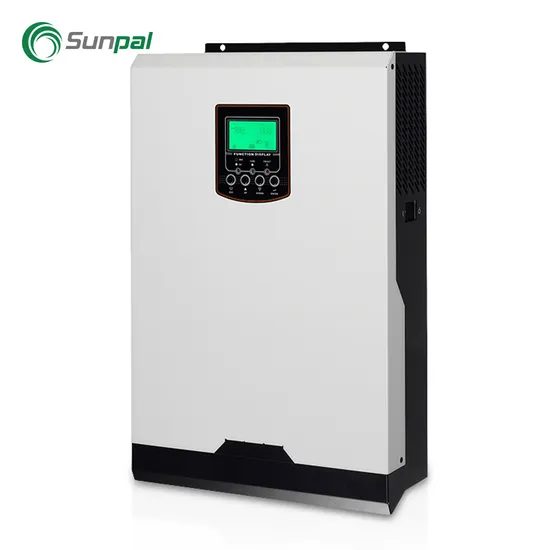

Sunpal OEM MPS-V-5000-48 5KW 230V Single Phase Pure Sine Wave Power Inverter With Wifi
Basic Info.
Model NO.
Axpert MKS
Nature of Source Flow
Active Inverter
Phase
Single
Output Power
>1000W
Certification
CE, ISO9001, CCC
Brand
Sunpal
Type
DC/AC Inverters
Power Source
Solar Power
Circuit Topologies
Full-Bridge Type
Nature of Wave String
Sine Wave Inverter
Waveform
Pure Sine Wave
AC Input Voltage Range
230 VAC
Selectable Voltage Range
170-280 VAC (for Personal Computers); 90-280 VAC (
Frequency Range
50 Hz/60 Hz (Auto Sensing)
Transfer Time
10ms (for Personal Computers); 20ms(for Home Appli
Battery Voltage
24VDC/48VDC
Floting Charge Voltage
27VDC/54VDC
Overcharge Protection
33VDC/63VDC
Maximum Charge Current
80A/60A
Maximum PV Array Power
4000W (5000W Optional for 5kw Model)
MPPT Range @ Open Circuit Voltage
120~450VDC
Maximum PV Array Open Circuit Voltage
500VDC
Maximum Charging Current
80A
Maximum Efficicency
98%
Communication Interface
USB / RS232
Transport Package
Cartons
Specification
100*300*440mm
Trademark
Sunpal
Origin
China
HS Code
8504403090
Production Capacity
100000PCS/Year
Packaging & Delivery
Package Size
13.00cm * 30.00cm * 46.00cm
Package Gross Weight
10.000kg
Product Description
Product DescriptionTechnical Specifications
| MODEL | MPS-V- 3000-24 | MPS-V- 5000-48 |
| Rated Power | 3200VA / 3200W | 5000VA / 5000W |
| INPUT | ||
| Voltage | 230 VAC | |
| Selectable Voltage Range | 170-280 VAC (For Personal Computers) ; 90-280 VAC (For Home Appliances) | |
| Frequency Range | 50Hz/60Hz (Auto sensing) | |
| OUTPUT | ||
| AC Voltage Regulation (Batt. Mode) | 230VAC ± 5% | |
| Surge Power | 6000VA | 10000VA |
| Efficiency (Peak) | 97% /94% | |
| Transfer Time | 10 ms (For Personal Computers) ; 20 ms (For Home Appliances) | |
| Waveform | Pure sine wave | |
| BATTERY& AC CHARGER | ||
| Battery Voltage | 24 VDC | 48 VDC |
| Floating Charge Voltage | 27 VDC | 54 VDC |
| Overcharge Protection | 33 VDC | 63 VDC |
| Maximum Charge Current | 80A | 60A |
| SOLAR CHARGER | ||
| Maximum PV Array Power | 4000 W(5000W optional for 5KW model) | |
| MPPT Range @Operating Voltage | 120~450 VDC | |
| Maximum PV Array Open Circuit Voltage | 500 VDC | |
| Maximum Charging Current | 80 A | |
| Maximum Efficiency | 98% | |
| PHYSICAL | ||
| Dimension,DxWxH (mm) | 100 x 300 x 440 | |
| Net Weight (kgs) | 9 | 10 |
| Communication interface | USB / RS232 | |
| Monitoring | WIFI / GRPS (optional) | |
| OPERATING ENVIRONMENT | ||
| Humidity | 5% to 95% Relative Humidity (Non-condensing) | |
| Operating Temperature | 0°C to 55°C | |
| Storage Temperature | -15°C - 60°C | |
Product specifications are subject to change without further notice. Our Factory
