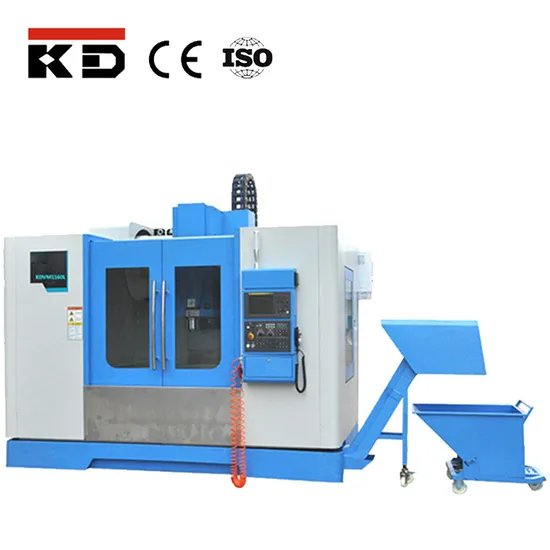

Vmc1160L High Rigidity Mini Vertical CNC Milling Machine Center
| US$39,000.00-41,000.00 | 1 Set (MOQ) |
Basic Info.
Structure
Bed type
Milling Cutter Type
Vertical Milling Cutter
Milling Cutter Structure
Indexable Type
Controlling Mode
CNC
Automatic Grade
Automatic
Precision
High Precision
Certification
CE, ISO 9001
Condition
New
X Travel
800mm
Y Travel
530mm
Z Travel
530mm
Table Size
930 X 510mm
Spindle
Bt40
Spindle Speed
8000rpm
Main Motor
7.5/11kw
Atc
24 Tools Capacity
Travel Speed
24m/Min
Motor Torque
11/11/11nm
Transport Package
Wooden Pallets(Ht)
Specification
CE, ISO9001, SGS
Trademark
KD
Origin
Zhejiang China
HS Code
84571010
Production Capacity
523
Product Description
PRODUCT SPECIFICATIONS
| MODELS | KDVM855L |
| TRAVEL | |
| X axis | 800mm |
| Y axis | 510mm |
| Z axis | 510mm |
| Spindle center to column | 595mm |
| Spindle end to table | 120-670mm |
| TABLE | |
| Tablesize | 1000×550mm |
| T-slot(width×number×space) | 18mm×5×90mm |
| Max.table loading | 600kg |
| SPINDLE | |
| Taper bore of spindle | BT40 |
| Spindle power | 11/15kw |
| Spindle speed | 8000rpm |
| FEED | |
| X/Y/Z fast feed | 48/ 48/ 36m/min |
| Torque axis motors | 11/ 11/ 20Nm |
| ATC | |
| Tool number | 24 |
| Max. tool size (With adjacent tool) | Ф78mm |
| Max. tool size (Without adjacent tool) | Ф120mm |
| Max.tool weight | 8kg |
| Time (tool-tool) | 1.8s |
| ACCURACY | |
| Positioning | ≤0.010 |
| Repeatability(X/Y/Z)(ISO) | ≤0.004mm |
| OTHERS | |
| Min.Input | 0.001mm |
| Overall dimension (LxWxH) | 2800x2400x2700mm |
| Net weight | 5250kg |
