Deburring Solutions for Dumpers and Grommets - China Pege Machine

Product Description

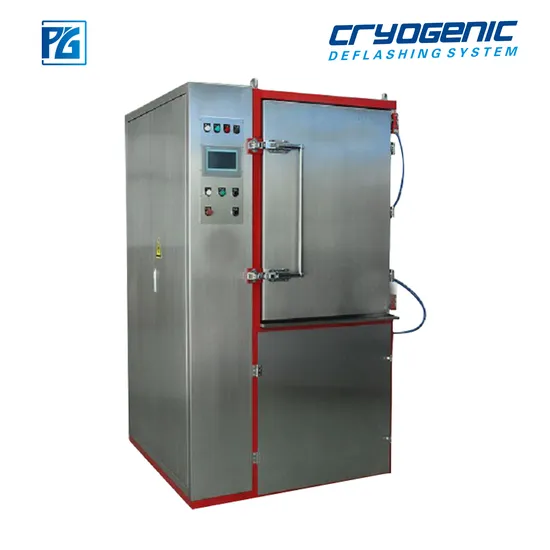

Experience unparalleled precision and efficiency with our Automatic Rubber or Plastic Burr Cleaning Machine, expertly crafted in our leading-edge factory in China.
Product Description As temperatures decrease, rubber and plastic parts undergo a transformation, becoming hardened, brittle, and crystallized, losing their natural flexibility. Under these conditions, they are susceptible to breaking from external forces. The flash of molded products, being significantly thinner, becomes brittle before the main product itself at low temperatures. Our cryogenic deflashing machine leverages this principle, operating precisely when the flash is brittle but the product remains flexible. Utilizing high-speed, projected special plastic media, it meticulously clears out brittle burrs without damaging the product, ensuring high-quality results.
FUNCTIONS
Our state-of-the-art machine is designed for the effortless removal of flash from small rubber and plastic parts such as O-rings, gaskets, and other molded components, streamlining your production process.
Harnessing cryogenic processing technology, the flashes are initially frozen and subsequently eliminated by high-speed projection media, specifically Polycarbonate blast. This process significantly enhances the surface quality of molded rubber and plastic parts, ensuring superior finishes.
SPECIFICATIONS

TECHNICAL INFORMATION
MODE	PG-60T	PG-80T	PG-100T/120T	PG-150T
MACHINE PHOTO
SIZE(L*W*H)	1000*1000*1950MM	1100*1200*2000MM	1200*1250*2200MM	1300*1350*2250MM
WEIGHT	700KG	850KG	1000KG	1500KG
POWER	Ac380v 50Hz	Ac380v 50Hz	Ac380v 50Hz	Ac380v 50Hz
ELECTRICTY	6Kw*3Ph	7Kw*3Ph	8Kw*3Ph	9Kw*3Ph
TEMPERATURE	-130 - +50ºC	-130 - +50ºC	-130 - +50ºC	-130 - +50ºC
PRESSURE	0.5-0.7Mpa	0.5-0.7Mpa	0.5-0.7Mpa	0.5-0.7Mpa
BARRAEL CAPACITY	60L	80L	100L or 120L	150L
EFFECTIVE CAPACITY	20L	30L`	40L`	50L`
WHEEL SPEED	3000rpm - 7200rpm	3000rpm - 7000rpm	3000rpm - 7000rpm	3000rpm - 7000rpm
COOLING MEDIA	Liquid Nitrogen	Liquid Nitrogen	Liquid Nitrogen	Liquid Nitrogen
OPETATION MODE	Touch Screen	Touch Screen	Touch Screen	Touch Screen
FRAME	SUS304 WITH SOME RED PAINT ON CERTAIN AREA
WHEEL DIAMETER	AL φ250mm	AL φ300mm	AL φ350mm	AL φ350mm
BLASTING SPEED	105.7m/s	123.3m/s	143.3m/s	143.3m/s

MACHINE INNER COMPONENT PICTURES
APPLICATIONS
A. Perfectly suited for O-rings and irregular rubber parts across various materials and sizes.
B. Ideal for micro electronic product parts, offering precision and care.
C. Exceptional for precision elastomeric parts, ensuring consistency and reliability.
D. Precisely tailored for precision injection moulding plastic parts, enhancing perfection.
E. Excellent for R & D part runs, facilitating innovation and testing.
F. Perfect for die casting products such as zinc aluminum and magnesium alloy, delivering meticulous results.
FEATURES
High Efficiency: Revolutionize your workflow as this cutting-edge machine replaces the labor of approximately 60-80 workers in flash removal.
High Precision: Achieve unparalleled precision by removing small and hardened flashes that handworkers can't, vastly improving product accuracy.
Low Cost: Benefit from significantly reduced costs compared to traditional handworker processes, maximizing your profit margins.
