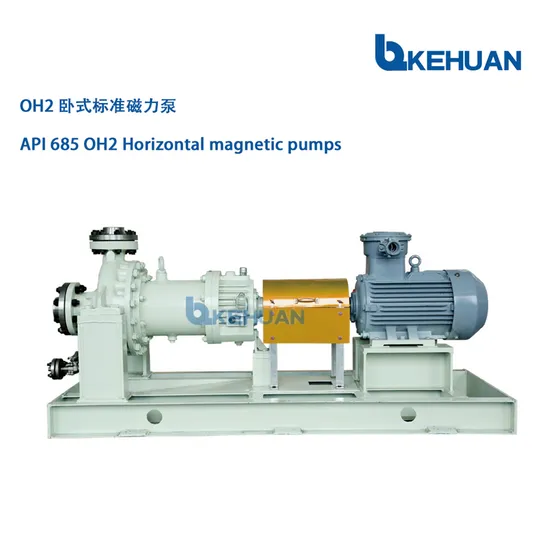

API685 Oh2 Horizontal Sealless Magnetic Coupling Centrifugal Pumps for High-Temperature Fluid

Product Description

Product introduction
API685 Oh2 Magnetic Pumps Single-stage, single suction, overhung structure.
Foot-mounted structure or Center line supported structure.
The pump and motor are separated with standard normal motor, so the pump can be changed parts at site and needs not be returned factory.
The pump hydraulic model is from Europe with high efficiency. Two sets of hydraulic model is equipped at same outlet port. The flow range at BEP best efficiency point is wide.
Leakage-free is realized by static sealing gasket for all the sealing points and magnetic coupling driven. The nitrogen sealing is also not used, so the operation of pump is safe, economic and reliable.
The modular theory design makes compact structure, parts generalization and easy maintenance.
The magnet material is made of special rare earth alloy with demagnetizing temperature up to 450 Degrees Celsius through special technology. So the pumps are guaranteed 15 years of operation life;
The slide bearing material is high purity of 99% silicon carbide, and all the friction couples of bearing are high quality silicon carbide.
The pump standard confirms to API 610, API 685 etc. Material
Carbonsteel; chromed steel; austeniticstainlesssteel; duplexsteel; Titanium and Titanium Alloys; Hastelloy C-276 and other special materials; It depends the customer's request

PARTS NAME	S-6	A-8	D-1	TITANIUM	HAST C276
Casing	Cast steel	316 AUS	DUPLEX	Ti	HAST C
Impeller	12%CR	316 AUS	DUPLEX	Ti	HAST C
Containment shell	Hastelloy C276	Hastelloy C276	Hastelloy C276	Hastelloy C276	Hastelloy C276
Inner magnet rotor	304/SM2C017	316/	316/ SM2C017	Ti /SM2C017	HAST C/ SM2C017
Pump shaft	12%CR	316 AUS	2205	Ti	HAST C
Slide bearing	304/SSIC	316/SSIC	316/SSIC	Ti/SSIC	HAST C/SSIC

Containment shell
The containment shell is made fromHastelloy c-276formed by special technology without axial welding seam. So it ensures the sealing and chemical stability for containment shell.
The double layer of containment shell functions reliable double protection. It will be alarmed when the first layer of containment shell is leaked while the medium is still completely sealed without any leakage.
Slide bearing
The material of slide bearing is made from 97.5% purity rate of silicon carbide (SSIC),The working life of the wear resisting and high strength material is 10 times of normal silicon carbide baring and carbon bearing.
Ball bearing
Lubrication: Grease or Oil, It depends the customer's request
Magnetic material
The magnet material of Kehuan magnetic pump is permanent-magnet alloy with unidirectional temperature up to 450oc. It is a medium to pass on the moment of torsion in magnetic driven pump. It guaranteed a wide operating range and is highly resistant against demagnetization.
Company profile
Established in2002,Dalian Kehuan PumpCo.,Ltd.is leading manufacturer on pump design and manufacture that meet the most exacting quality requirements.DalianKehuanPumpCo.,Ltd has two plants,one is manufacturing assembly and testplants,another is packing and delivery workshop.Plants covers an area of 20,000s quaremeters,and the plants areas12000 squaremeters, office building covers an area of 3000 squaremeters.
Quality is the life of the company. Over the years Dalian Kehuan Pumps had been continuously improving and perfecting Quality Management system. In 2002 ISO 9001:2000 Quality management system certification was obtained. In 2008 ISO 9001:2008 Quality management system certification was obtained. In 2018 ISO 9001:2015 Quality management system certification was obtained.
We are well-known in domestic market because of our High quality products and reliable quality assurance system, high
efficiency performance and excellent solutions If pumps and rotating equipment are critical to your operations, you seek specific qualities when selecting external service support:We are-A service partner you can trust-Reliability-Responsiveness-rapid turn around-Innovative solutions
Market and Service
Regarding testing equipment, apart of advanced and powerful testing bench, there are more than 30 sets of testing equipment , including Dynamic balancing machine, electric pressure testing pump etc. to perform hydro- test, physical and chemical test, measurement control, dynamic balance test etc. to ensure that our customers get reliable and efficient pumps.
The testing bench adopts advanced and powerful Computer Assisted Testing System, which can realize automatic data acquisition and processing (identifying , drawing curves, printing reports, etc.).
Application in all kinds of pumps ranging from centrifugal pumps, magnetic driven pumps, mix flow pump to axial flow pump and turbine pumps.
Automatic pumps testing process with more convenience, accuracy and reliance.
Compliance with the accuracy requirements in GB3216 Grade B, ISO9906 Grade 2B.
Test pool volume 800m2, two test loops: open and close test loop, 6 test positions, Max .testing flow 11,000m3/h, Max. Motor power 600kw.
We are well-known in domestic market because of our High quality products and reliable quality assurance system, high efficiency performance and excellent solutions
If pumps and rotating equipment are critical to your operations, you seek specific qualities when selecting external service support:
We are
-A service partner you can trust
-Reliability
-Responsiveness
-rapid turn around
-Innovative solutions
