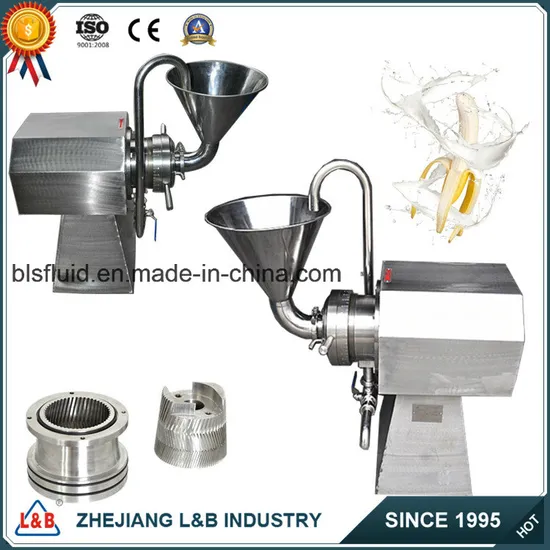

Horizontal Homogenizer Colloid Mill Machine, Banana Milk Machine

Product Description

Horizontal Homogenizer Colloid Mill Machine, Banana Milk Machine
Product Description
Emulsion colloid mills works with shearing, grinding high-speed stirring .Grinding process occurs in relative movement between the two teeth with one revolving in high speed and another still, which makes the material between the teeth receive strong shearing and abrasion in addition to high frequency vibration and high speed swirl. The above forces effectively evenly disperse, emulsify, smash material.

Fineness: 2-40 micron
Material: stainless steel 304,316L
Brand name: L&B

Name:	Horizontal Homogenizer Colloid Mill Machine, Banana Milk Machine
Brand name:	L&B
MOQ:	one set
Material:	high-intensity stainless steel 304 and 316L ( ss304 suit acid or alkali weak; ss316 suit acid or alkali a bit strong)
Advantages:	anti-corrosion, anti-abrasion ability, without pollution
Main parts:	grinding head, pedestal driving part and special motor
Grinder types:	solid, liquid
Model:	JMW
Inlet Dim:	48-66mm
Outlet Dim:	25-32mm
Output:	0.3-4T/H
Motor power:	3kw, 5.5KW, 7.5KW
Speed:	2800rpm
Feed hopper:	4L, 7L, 10L etc
MOQ:	one set
Motor:	ABB is optional
Rotary vane:	V-type head or spiral head
Seal:	oil seal
Machine type:	Wet-type equipment of wet type super micro grain processing
Outlet connection:	union(tri-clamp is optional)
Outlet type:	pipe or square type
Factory:	ISO9001 certified factory 20-year production experience, 10-year exported experience.
Patent:	national invention patent No. 200510123583.8, international application patent PCT/CN2006/001481.

Technical parameters of colloidal mill:

Model	Emulsified size (um)	Output T/h	Millstone Dim(mm)	Cooling water pipe(mm)	Outlet Dim (mm)	Inlet Dim (mm)	Speed (rpm)	Power (kw)
JMW-80	2-40	0.3-1	80	12	25	48	2800	3
JMW-100	2-40	0.5-2	100	12	25	66	2800	5.5
JMW-120	2-40	0.5-3	120	12	32	66	2800	7.5
JMW-140	2-40	0.5-4	140	12	32	66	2800	7.5

Principle:
The basic working principle of colloid mill is shearing, grinding as well as high-speed stirring applied
force, grinding is finished depending on the relative movement of tooth-form slope, one of them
rotates at high speed, while the other stays still to make materials that passing between tooth-form
slopes receive great shear force and friction, and to grind, emulsify, smash, homogenize and mix them
under complex forces such as high-frequency shake, high-speed vortex and others at the same time,
so as to achieve the effect of fine and super micro.

Application:
JM series colloidal mill is a new-type equipment of wet type super micro grain processing,
suitable for the homogenization, emulsification, separation, smash and milling of various emulsions.
It widely used in foodstuff (fruit jam, juice, albumen milk, soy milk, milk tea, dairy, beverage,etc.),
pharmacy, dairy chemical, chemical industry, emulsion asphalt, coal floating agent, ceramic glaze,
emulsion , nanometer material, etc.
Patent:
The colloid mill in Our factory has been applied all new technology, which has won national invention
patent No. 200510123583.8, the international application patent PCT/CN2006/001481, greatly extend the service life of the colloid mill, and improve the quality of the colloid mill products.
Warranty:
1. Since the acquisition date, the mechanical seal within three-months warranty, and other parts with 12-month warranty under normal circumstances.
2. Beyond the time limit, a paid maintenance service is provided for life. Normal wear is not included.
3.Under warranty,no free repair in any circumstances below:
a. No purchase vouchers(Invoice or Receipt)
b. Damage caused by disassembling or modification
c. Due to the careless error use or improper use man-made damage
d. Under the condition of not usually use(e.g, long time used in harsh place) caused by the fault or damage
e. Product packaging is not complete, the exterior pollution for use
