CE Approved Yc Ycl Series Single Phase Induction AC Capacitor Start Electric Motor

Product Description

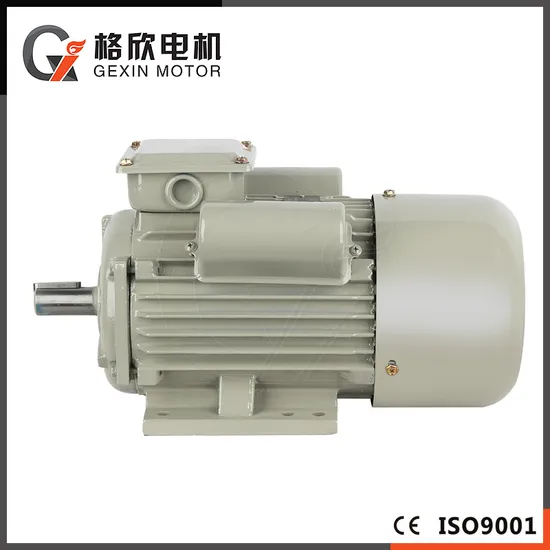

GEXIN YC Series Single-Phase Asynchronous Induction Electrical Motor
Gexin Electromechanical Co.,Ltd.is a company specializing in the production and processing of YC MS,YD, YCT, YEJ, YVF, YBE4, Y. YE2,YE3 ,YE4 and other three-phase asynchronous motors. It has a strong R&D team, and the motor produced by the company is brand new, with national standard stator and rotor and all copper. Product 3c certification, strict technology, each processed part has passed the incoming QC, and the manufacturing process inspection. With rich production experience and advanced production equipment, the company has established long-term cooperative relations with many enterprises with strong strength, reasonable price and high-quality service. Business is sincere, and being the first person in business is our aim. PRODUCT OVERVIEW
YC/ YCL Series Motors are fully enclosed single- phase asynchronous Motors with the latest design . With features like simple structure, reliable performance, easy maintenance and achievement of technical-economic targets, the motors have widely used in the air compressor,pumps, refrigerator, washing machine, medical equipment, wood-working machinery, all kinds of agricultural and so on. YC motor series have protection Class of E or B, Cooling method of IC411.Under reted voltage and 50Hz,the starting torque is three times more than the rated torque and 60Hz is more than 2.75 times.Motors for 4 HP and over are of capacitor start and run type.They all have the advantage of high starting torque,smooth running,low temperature rise,low noise and greater overload performance.

OPERATING CONDITIONS
Ambient temperature	-15ºC≤θ≤40ºC
Altitude	Not exceeding 1000m
Rated voltage	380V or any voltage between 220-760V
Rated frequency	50Hz,60Hz
Protection class	IP55
lnsulation Class	F/H
Cooling method	ICO141
Duty	S1 ( continuous)
Connection	Start-connection for up to 3kw, delta-connection for 4kw and above.

PRODUCT DESCRIPTION

INSTALLATION DIEMSIONS
TECGNICAL DATE

Model	Rated Output		Speed(r.p.m)	Current(A)	Eff.(%)	Powerfactor(cos)	lst/ln	Tst/Tn	Tmax/Tn
	kW	HP
YC711-2	0.18	1/4	2800	1.9	63	0.7	6.5	3	1.8
YC712-2	0.25	1/3	2800	2.4	65	0.72	6.5	3	1.8
YC80A-2	0.37	1/2	2840	3.5	66	0.74	6.5	3	1.8
YC80B-2	0.55	3/4	2850	5.04	67	0.74	6.5	3	1.8
YC80C-2	0.75	1	2850	6.68	68	0.75	6.5	3	1.8
YC90S-2	1.1	15	2850	8.93	70	0.8	7	2.5	1.8
YC90L-2	1.5	2	2870	11.4	73	0.82	7	2.5	1.8
YC100L-2	2.2	3	2900	16,50	74	0.82	7	2.5	1.8
YC112M1-2	3	4	2900	21.4	76	0.84	7	2.2	1.8
YC112M2-2	3.7	5	2900	24.8	79	0.86	7	2.2	1.8
YC711-4	0.12	1/6	1450	1.9	48	0.58	6	3	1.8
YC712-4	0.18	1/4	1450	270	50	0.6	6	3	1.8
YC80A-4	0.25	1/3	1450	3.52	52	0.62	6	3	1.8
YC80B4	0.37	1/2	1450	4.69	56	0.64	6	3	1.8
YC80C-4	0.55	3/4	1450	6	60	0.65	6	3	1.8
YC90S4	0.75	1	1450	7,50	63	0.72	6.5	2.5	1.8
YC90L-4	1.1	1.5	1450	10.4	67	0.72	6.5	2.5	1.8
YC100L-4	1.5	2	1450	13	72	0.73	6.5	2.5	1.8
YC112M-4	2.2	3	1450	18.5	73	0.74	6.5	2.5	1.8
YCL132SA-4	3	4	1450	22.4	76	0.8	6.5	2.2	1.8
YCL132SB4	3.7	5	1450	26	79	0.82	6.5	2.2	1.8
YCL132M1-4	5.5	7.5	1450	32.5	85	0.9	6.5	2	1.8
YCL132M2-4	7.5	10	1450	40	85	0.9	6.5	2	1.8

APLLICATION
ADVANDAGE
* 100% Copper wire,100% Power Output;
* 100% test after each process and final test before packing;
* 20Years Manufacture Experience;* Energy saving;* Superior Life;* Quiet Operation;* Easy maintance;* Be made of selected quality materals.latest design in entirety;
* OEM Service ;
* CE/ISO Approved;
* 20-30days lead time;
* Main Market: South America, Middle East, Southest Asia, Europe,Africa and so on;
* Have Rich Experience and Strong ability to Develop New Products;
* Have Ability to Design the Products Based on Your Original Samples;
Quality Assurance:
1 year quality warranty and fast after-sales service. Manufacturing process:
Stamping of lamination Rotor die-casting Winding and inserting - both manual and semi-automatically Vacuum varnishing Machining shaft, housing, end shields, etc… Rotor balancing Painting - both wet paint and powder coating Motor assembly Packing Inspecting spare parts every processing 100% test after each process and final test before packing PACKING
CERTIFICATIONS
FOREIGN EXHIBITION
Worm Gearbox RV series
For more information, please click on the product link below:
https://china-gexin.en.made-in-china.com/product/rTmYWKkGOvVl/China-Nmrv-Series-Precision-Aluminum-Worm-Gearbox-Reducer-Motor-for-Industry-Transmission.html
FAQ
Q1: Are you a factory or just a trading company?
A1: Manufacturer,and we focus on the development and production of electric motors for more than 20 years.
Q2: Is customized service available?
A2: Of course, OEM & ODM both are available.
Q3:Can I buy one as sample?
A3: Yes, of course.
Q4: How about your quality control?
A4: Our professional QC will check the quality during the production and do the quality test before shipment.
Q5: What is your payment term?
A5: 30% T/T in advance, 70% balance when receiving B/L copy Or 100% irrevocable L/C at sight.
Q6: What is your lead time?
A6: About 20-30 days after receiving advance deposit or original L/C.
Q7 What certificates do you have?
A7: We have CE, ISO. And we can apply for specific certificate for different country such as SONCAP for Nigeria, COI for Iran, SASO for Saudi Arabia, etc.
Q8: What warranty do you provide?
A8: One year, during the guarantee period, we will supply freely of the easy damaged parts for the possible problems except for the incorrect operation. After expiration, we supply cost spare parts for alternator maintenance.
