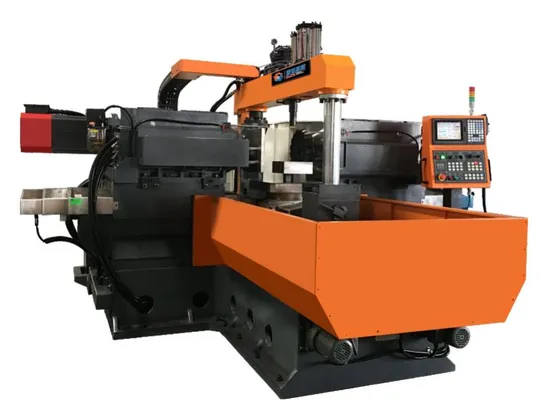

Jjr-700NCR Heavy Milling Gear Box CNC Duplex Machine CNC Twin Head Milling Machine

Product Description

GOODA JJR-700NCR

Cutting lengh x Width of workpiece	60~700mm	Max thickness of workpiece	290mm(OP330mm)
Max cutting capacity	2x4.0mm	Table size	520x520mm
Max loading weight	1200KG	X/Y/Z Axis traver	390/390/1000mm
X/Y/Z Axis rapid feed speed	8000mm/min	Cutter diameter	300mm(OP350mm)
Spindle speed	0~350rpm	Shape of spindle end	Φ47.625mm
Spindle servo motor	2x15KW(OP22KW)	X/Y/Z Axis servo motor	3/3/3KW
Machine weight	12000KG	Space	4.6mx4.2m

CNC Duplex Milling machine is a machine that specialize in square metal, plastic & plate high speed and high accuracry milling equipment.
Merit:
1)High-speed 2F/4F milling.
2) Mass production efficiency.
3)One setting, machine fully automatic till the workpiece milling completely.
4)High precision of pieces measurment with cleaned surface. ≤Ra3.2um.
5)Environmental Dry and safty.
Design Concept & Function:
1)Full cover box design, make your workpace clean and safe.
2)The opposite axis X&Y at the same level and same speed, surface A=C B=D, getting the accuracy up.
3)Leading in Japan Mitsubishi or Fanuc system servo motor, don't worried about the break.
4)Reference tolerance ±0.01/300mm
5)Vertical oil clamping structure, stability milling.
FAQ:
1. What is your minimum order quantity and warranty?
MOQ is one set, and warranty is one year.
2.What CNC system do you use?
FANUC, SIEMENS, MISTSUBISHI etc. It depends on your choice.
3.When is the delivery time?
Conventional Machines,We will delivery then within 30-45 working days after received your
deposit,if some special machines will be some longer.we will give you the answer accordingly.
4. What is the package of the machines?
Packing: PE bag cover inside+ Plywood box + Steel beam frame.
5.How can I choose the most suitable machines ?
Please let us know your machining demand or machine size ,we can choose the best model
for you , or you can choose the exact model by yourself. You can also send us the products
drawing ,we will choose the most suitable machines for you .
6. What is your trade terms?
FOB, CFR,CIF or others terms are all acceptable.
7. What is your payment terms ?
Payment Terms : T/T 30% advance , 70% before shipment.
Products & Concept
Company Profile
We are the manufacturer to produce the high-end CNC machine in China, who focusing on developing and supplying the high efficiency, high accuracy, and high quality of CNC Duplex Milling Machine, Exchange-Pallet Vertical CNC Milling Machine,CNC Gantry Grinding Machine,5-Axis High Speed Gantry Machining Center , CNC High Speed Saw Machine and CNC Chamfering Machine.
Our aspiration is to be flexible in implementing customer requirements, guarantee the high reliability of the milling machine, ensure that spare parts are available at short notice and facilitate the prompt availability of service engineers.
GooDa's five factories in China
Cooperative Partner
Maintenance & Service
The benefits of GOODA maintenance contract (After sales 3 years):
Basic requirement in a certified QS system Guarantee for the accuracy of the measuring and test results Calibration, maintenance and, if necessary, repair with just one visit Fixed prices with a clear breakdown of costs Preventive maintenance helps you avoid expensive faults and ensures a high level of quality that lasts The maintenance contract includes: Travelling time and expenses for our technician Maintenance and calibration work Small items required for carrying out the specified maintenance work Calibration with a corresponding maintenance and test report, allowing the results to be used to demonstrate compliance with national standards
