Basic Info.
Transmission
Hydraulic Transmission
Drive Type
Internal Combustion Drive
Maximum Digging Height
12735mm
Maximum Digging Depth
7150mm
Maximum Dumping Height
6130mm
Bucket Rod Digging Force
417kN
Bucket Digging Force
480kN
Rotating Speed
0~6.9r/MIM
Transport Package
13720*4200*4990mm
Product Description
Overview

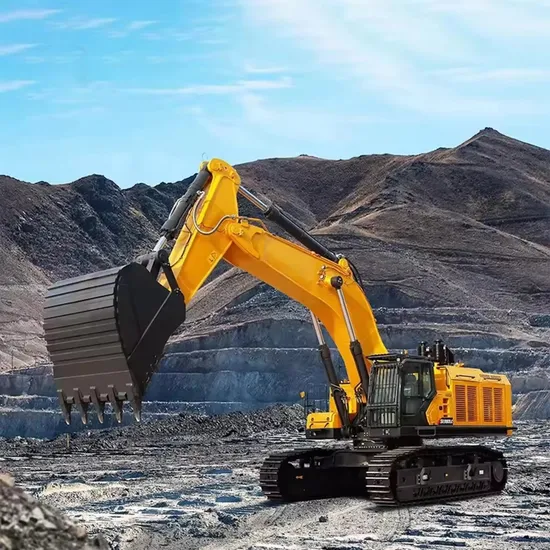

SHANTUI New SE980LCW 6.5CBM Digger 98Ton Large Crawler Excavator With Imported Engine Configuration selling point
Equipped with a high-power engine, the machine delivers robust power, exceptional efficiency and energy savings. Additionally, it is equipped with a large-displacement main pump and a fully electronic control hydraulic system to achieve precise matching for optimal performance.
Ease of maintenance and operation comfort
The machine is equipped with a 10.1-inch intelligent touchscreen, offering multiple working mode selections, as well as features such as an electric heating air-suspension seat and a high-power air conditioning system. The machine provides a spacious maintenance area, allowing for easy access during inspections and maintenance.
Adaptability to diverse working conditions
It can be configured with a range of working devices such as rock buckets, ultra-powerful booms, rippers, and a variety of buckets to meet different working condition requirements
Specification
Parameter
| SE980LCW
|
Operating weight(kg)
| 97800
|
Engine power(kW/rpm)
| 571/1800
|
Bucket capacity(m³)
| 6.5
|
External dimensions(mm)
| 13720*4200*4990
|
Bucket rod digging force(kN)
| 417
|
Bucket digging force(kN)
| 480
|
Rotating speed(r/min)
| 0-6.9
|
Travel speed(km/h)
| 2.8/4.1
|
Maximum digging height(mm)
| 12735
|
Maximum digging distance(mm)
| 12620
|
Maximum digging depth(mm)
| 7150
|
Emissions (Indicated as per international standards)
| Eu stage IIIA
|
