Automatic Paper Diecutting & Stripping Machine for Paper Sheet 1060*760mm

Product Description

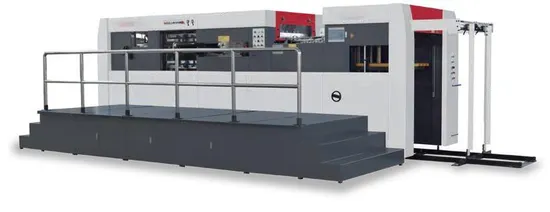

Auto Die-cutting Stripping Machine
Technical Specification:

Model	MY-1060P
Max. paper size(mm)	1060×760
Min. paper size(mm)	400×360
Max. cutting size(mm)	1040×750
Max. running speed(s/h)	7500
Sheet thickness(mm)	Corrugated board: ≤4 Cardboard:0.1-3
Max. pressure(t)	350
Total power(kw)	21
Net weight(t)	19
Overall dimension(mm)	7650×4130×2230
Air Requirement (Buyer provide)	0.8Mpa, >0.36m³/min

Paper Feeding Unit and Paper Conveying Unit
Paper Feeding Unit: The enlarged paper feeding head (Feeder head) has 9 suction nozzles applicable for paper in different thicknesses and 5 paper feeding nozzles which can be independently adjusted for parallel paper feeding. It also has 4 paper lifting nozzles which can move up and down in a large stroke especially applicable for small corrugated paper. The large power wind pump provides a high suction force. It can be conveniently adjusted; paper can be divided reliable, and it runs fast and stably. By the special secondary paper feeding and preliminary paper stacking, the primary and secondary can be shifted to ensure uninterrupted paper feeding. To improve the working efficiency, paper feeding and collecting are realized by dual-speed reduction motor which provides a long service life and a high torsional force, and it saves time due to its high lowering speed. Paper Conveying Unit: The paper conveying part is made of stainless-steel plate to prevent rust and provide stable and correct paper conveying. Paper is positioned by a pushing unit and a pulling unit which can be shifted conveniently for different specifications of paper. The paper pressing structure adopts the adjustable structure of multiple groups of pressing wheels and hair wheels, which is convenient for operation and stable for paper pressing. Die-cutting Unit Die-cutting unit eliminated castings wallboard due to casting wallboard has small pull, large deformation and without limitation, instead it uses steel wallboards like Japan. To increase pulling force is to increase pressure, and it is strong and durable, changeless form. This machine is upgraded to a brand high level by the automatic pressure regulation and automatic front scale regulation. The addition of this function upgrades it into a convenient and favorable digital device with high controlling speed. High pressure oil pump is used to lubricate the oil circuit under strong pressure, so as to reduce the wear of parts, increase the oil temperature cooler to cool the lubricating oil, and regularly lubricate the main chain, so as to improve the equipment efficiency. The novel transmission mechanism, high-speed die cutting and high-precision swing bar platform improve the speed of the base plate and effectively solve the common problem of uneven pressure.. The quick plate locking device can help to fix the upper plate frame more firmly. The die-cutting machine produced by our company also fastens around the next version, making it more accurate and faster. According to many years of production and manufacturing experience, the paper tooth row chain is strictly selected to ensure its service life and stable die cutting accuracy. Intermittent mechanism with special angle design is the main driving element of die-cutting machine, which can improve die-cutting speed, die-cutting accuracy and reduce equipment noise. The torque limiter is equipped with overload protection. The primary and secondary units can be separated at any overload to ensure the machine can be operated safely. Satisfies European standards, clutch rapidly, great strength smoothly, long life and low noise. The main transmission mode is driven by synchronous gear belt, which is much higher cost than the mode of driven by chain. Its advantages are: the performance is more stable, the operation noise is smaller, the defect of the chain will be avoided, and the precision of the machine is higher, the life is longer and the quality is more stable. This kind of design is appearing only at the high-grade quality machines at present. Paper Stripping Unit By the stripping system, irrelative paper scrapes and waste edges(except the gripper edge) can be stripped in die-cutting. The up, down and middle die cam tri-link transmission system is stable, harmonious, and correct for high power and fast loading, unloading and calibrating. The stripping frame is pneumatically lifted with a centering unit, and it can be operated easily to shorten the preparation time. The stripping process is reasonably designed to eliminate the defect of low speed and plate deviating during stripping. Paper Collecting Unit Paper can be collected automatically and orderly. Adopts the advanced automatic electric non-stop sub-delivery device instead of manual non-stop paper grille in the delivery unit. The efficiency is improved by an uninterrupted paper collecting grid plate, and when paper is stacked to the specified height, the paper collecting grid plate will be replaced by another plate for uninterrupted paper collecting. By the pneumatic sampling, the die-cut paper can be conveniently inspected at any time. Electrical Control Unit The electrical control system is PLC computer automatic control for fully detecting and controlling, and the frequency converter with main motor provides high power for paper feeding, paper conveying, die-cutting, and paper collecting. The human-machine interface can display various working conditions, indicate fault positions and give solutions. The machine is equipped with various safety protection units. A visible and audible alarm will be given at any fault, and the machine will be automatically shut down to protect personal and device safety.
