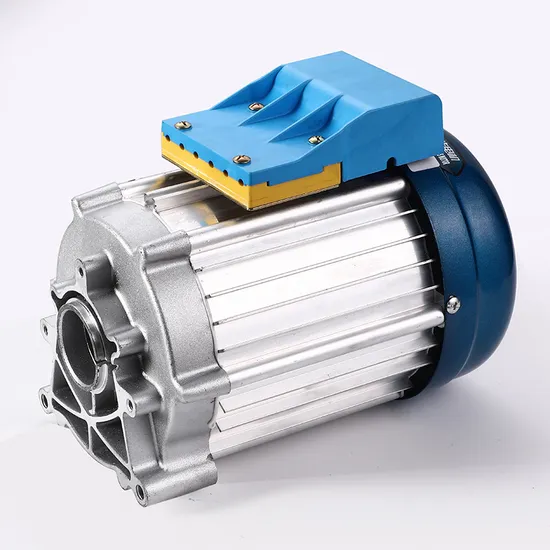

Datai 60V2000W Motor and Controller 220 Mechanical Brake Full Floating Rear Axle Differential Drive System

Product Description

Product DescriptionDifferential motor drive system have motor, controller, gearbox, rear axle, forward and backward switch, 123 speed switch, throttle handle or throttle pedal.
Gear ratio can select 1:8.6 or 1:11.
Suitable for small and medium-sized passenger or cargo electric vehicle.Load not exceeding 1 ton.

Product Parameters

Rated Power	Rated Voltage	Eco Mode Speed	Normal Mode Speed	Sport Mode Speed	Max Torque	Protection Class
1500W	48V	1870RPM	2280RPM	2850RPM	60n.m	IP67
1500W	60V	2350RPM	2850RPM	3680RPM	60n.m	IP67
1500W	72V	2650RPM	3450RPM	4220RPM	60n.m	IP67
2000W	48V	2400RPM	2700RPM	3100RPM	60n.m	IP67
2000W	60V	2800RPM	3300RPM	3800RPM	60n.m	IP67
2000W	72V	3500RPM	4000RPM	4500RPM	60n.m	IP67

Voltage	48V,60V,72V	Maximum Current	120A
Temperature	-20ºC to 50ºC	Cooling Mode	Natural Air Cooling
Applicable	Datai Six-phase Motor	Protection Class	IP67
Applicable power	1500-2500W
Undervoltage	41.5±0.5V/48V ,50.5±0.5V/60V ,63.5±0.5V/72V
Specialty	Dual mode drive, high efficiency, stable performance, long life
Function	Low level brake, three speed control function, speed signal, anti-slip slope, downhill constant speed, regenerative braking

Differential rear axle, conjoined rear axle with only one speed ratio.
Adopts the gearbox independently developed and manufactured by Datai company, with mature technical structure and national invention patent.
Gear machining precision, stable performance, low noise;
Full floating rear axle structure design increases the load capacity, convenient and quick replacement of parts, no need to remove the rear wheel, big drum oil brake system, better braking performance;
Suitable for passenger tricycles, micro electric vehicles, light load electric tricycles and so on.

Length	830mm/930mm/1030mm/1080mm/1130mm/other
Gear Ratio	1:8.6/1:11.2
Brake Hub	Brake Mode	Structure	Tube Diameter
Φ200	mechanical brake	Taper	Φ60*4
Φ220	mechanical brake	Taper	Φ60*4
Φ220	mechanical brake	Full floating	Φ60*4
Φ220	hydraulic brake	Taper	Φ60*4
Φ220	hydraulic brake	Full floating	Φ60*4

Packaging & Shipping
Company Profile Datai is a Chinese electric motor and clean energy company based in Taizhou City, Zhejiang Province. Datai designs and manufactures electric HPDC(high-power direct current) permanent magnet motors, modular controllers, and rear axles for vehicles. The products are widely used in all kinds of electric vehicles, such as electric tricycles, electric buses, electric sanitation vehicles, electric sightseeing vehicles, low-speed four-wheel electric vehicles, electric street sweepers, electric forklifts, electric lifting platforms, and so on. Combining safety, performance, and efficiency, Datai products satisfy customers with high quality, customized production, and professional after-sales service.
Datai has a highly educated and professional technical team and devotes its efforts to help expedite the move of sustainability, obtained through electric motors. In the past 10 years, to meet various demands of customers worldwide, Datai has successfully researched and developed various reliable driving systems for gear motors, differential motors, variable motors, electric forklifts, electric crawlers, etc. At the same time, Datai has obtained 4 invention patents, 9 utility model patents, and 4 appearance patents and passed ISO 9001:2015 certification, CE certification, and China Compulsory Certificate.
With the rapid demand for electric sanitation vehicles, Datai grasps the opportunity, and its products dominate more than 80 percent share of the domestic market, meanwhile, Datai exports to overseas markets such as the U.S., Mexico, India, Bangladesh, Pakistan, South Korea, and other countries, especially in India and Bangladesh market. Compared with competitors in the global market, Datai has about 70 percent market share in similar products, which obtains an excellent reputation of quality and customer service based on our customers and others in the same industry. Last but not least, Datai is willing to develop with the market, grow with customers, and make progress with society on the road of reform and development.
FAQQ:Why choose Datai?
A:We are professional BLDC PMSM motor ,controller ,rear axle manafacturer.We are the top quality and performance products in e-tricycles field, and have rich experience to export, Best products with reasonable price.
Q:Are you trading company or manufacturer?
A: We are factory.
Q: How long is your delivery time?
A: depands on the quantity.We have the product capacity of 800 motor ,600 rear axle ,1000 controller per day !
Q: What is your terms of payment ?
A: 30% Advance payment by T/T after signing the contract.70% before delivery.
