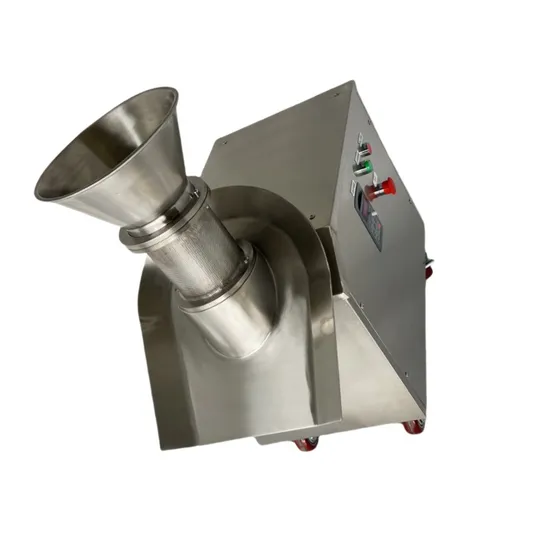

Jzl-125 (NEW VERSION) Hot Sale Rotating Granules Machine Wet Powder Granulating Machine

Product Description

JZL-125 ( NEW VERSION ) Hot Sale Rotating Granules Machine Wet Powder Granulating Machine
This machine is mainly for pelletizing moist powder, and also fr smashing dry blocks into granulaters.
In chemical medicine field, it can be used to granulate the mixed powder into granule, and compressed granule into tablet after being dried. In food industry, it can be used to deal with the candy and sugar mixture as well as barley milk products.
Sieve cylinder diameter: Ø125mm
Particle diameter: Ø0.8 ~ Ø3mm (screen can be changed according to user needs)
Production capacity: ~50 kg/h
Grinding tool speed: ~60 rpm (frequency conversion speed regulation)
Motor power: 1.5kw
The machine changes speed and direction through the gear box of the reducer, so that the grinding knife and the pressing blade rotate opposite, the material is pressed down through the inclined plane when pressing the material, the grinding knife extruded the material to the outside of the screen cylinder, thus forming the required particles;
The machine adopts reducer with two input shaft, two output shaft, grinding knife and press blade are driven by different motors, press blade motor adopts frequency conversion control, speed (feeding speed) can be adjusted, can adapt to different materials, so that the feeding speed of the equipment and granulation speed match, can make the equipment better to use, screen should not be extrusion damage, large output.
The machine is simple to operate, easy to maintain, easy to clean and contact with the material parts are made of stainless steel material, can be selected according to the need of the sieve cylinder aperture, and can complete automatic discharge, reduce the particle breakage caused by manual discharge.
This machine is suitable for pharmaceutical, food, chemical, pesticide, fertilizer, light industry and other industries, the wet powder is not ground into different particle size particles.

JZL-125 Oscillating Granulator Technical Paramaters

Device model:	JZL-125
Sieve cylinder diameter:	Ø125mm
Particle diameter:	Ø0.8 ~ Ø3mm (screen can be changed according to user needs)
Production capacity:	~50 kg/h
Grinding tool speed:	~60 rpm (frequency conversion speed regulation)
Motor power:	1.5kw
Input power:	220V,50HZ
weight	96kg

JZL-125 Small Oscillating Granulator Features

1. The JZL-125 drum and screen are easy to disassemble for easy cleaning.
2. The JZL-125 transmission system is enclosed inside the machine body and embedded with a lubrication system to ensure smooth operation of the equipment.
3. The JZL-125 screen adopts metal wire mesh or stainless steel plate mesh, which ensures good granulation effect, high efficiency, and long service life of the screen.

Finished Desired Powders Shows

The machine is suitable for pharmaceutical, foodstuff, chemical, solid drink and so on industries.
It can make the stirred raw materials become granule with needed size or crush the blocked raw materials into small granule. The machine is mainly used for making granule with different specifications of pharmaceutical industry , chemical industry ,foodstuff industry ,etc .After dried ,the granule can be pressed into all kinds of shaped products. The machine can also used for crushing dried raw materials that are cohered.

JZL-125 Small Oscillating Granulator Shipping

1. we will use good packaging to pack the small oscillating granulating machine in order to make sure they are completely protected perfectly .

2. we will check the machine to be good condition, and made small adjustment to make sure you can use the machine smoothly once you receive it

Shipping:	Strong Packaging
Payment:	Escrow Payment T/T WU MG
Delivery:	HKEMS, EMS, HK Air Post, UPS FEDEX at your option.
Country:	Europe Region, Canada, Australia, UK, USA and so on

Other Oscillating Granulator for choice

Model	YK-60	YK-90	YK-160
Roller Diameter (mm)	60mm	90mm	160mm
Production Capacity (kg/h)	20-30 kg/h	50-100 kg/h	200-300 kg/h
Swing Range (degrees)	>360 degrees	>360 degrees	>360 degrees
Rolling Swing Times (t/m)	46 times / min	50 times / min	55 times / min
Motor Powder (w)	550w	750w	2200w
Weight (kg)	55kg	150kg	250kg
Dimension (mm)	460*550*570mm	750*460*840mm	1100*750*1270mm

FAQ ( Frequently Asked Questions )

Q: What's your MOQ ?
A: It is ok if you need 1 piece of this Oscillating Granulator for a test .
Q: How can I pay ?
A: We have western union, bank transfer and Online payment ways ( VISA,MasterCard,JCB,Discover,AMERICAN EXPRESS ) with trade assurance.

Q: What's the shipping time
A: Different countries have different shipping time, you can tell me which city you are in, and we would tell you the accurate shipping time .
Q: What's the shipping service
A: We can help complete Customs-clearance, and also cover tariff since many friends don't want to contact Customs to do Customs-clearance in person .
Q: Which Machines are in stock ? I need quick delivery after my payment .
A: Oscillating Granulating machines, Capsule filling machines, Tablet presser machines, Tablet deduster machines, Counting machine and relevant machines are in stock for quick shipment.
Q: How long does it take to do maintenance on the Oscillating Granulator?
A: It takes about 1-2 hours to clean, disassemble, and grease it. We recommend that this is done at the end of every run to ensure the maximum life of your machine
Q: How can You guarantee the quality ?
A: 1. we have 100% test before shipping out order ;
2. quality guaratee of 12 months ;
