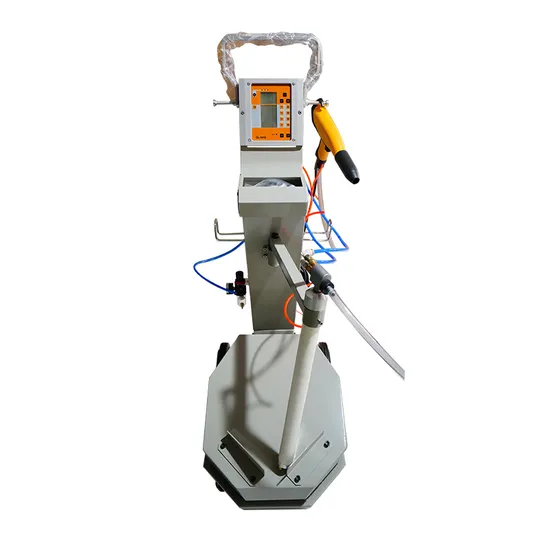

Manual Electrostatic Spraying Machine Powder Coating Machine for Metal Surface Finishing

Product Description

Manual Electrostatic Spraying Machine Powder Coating Machine for Metal Surface Finishing for wheel, Aluminum profile
COLO-191S manual electrostatic powder painting spraying machine is characterized with its digital valve control, which is the world's latest technology applying in the powder coating industry. Giving an extremely quality finish while saving powder material. Taking advantage of all powerful functions, the professional COLO-191S is well-performed for both beginners and specialists.
We supply box feed type and hopper type powder coating machine. Box feed powder coating machine is ideal for quick and easy color changesyour perfect choice, it could convey powder directly from the original powder box. Hopper type powder coating machine suits for contimuous powder coating production, the well-sealed fluidizing hopper prevents powder from accumulation and dampness.

COLO-191S Powder Gun Controller
1. Three preset standard programs designed for beginners, perfectly configured to coat flat parts, complicated parts, recoat parts.
2. Up to 20 coating programs can be stored in the control unit, and easily selected via the display pilot
3. Digital air flow technology for accurate pneumatic data setting, ensures better atomization.
4. A precise powder output regulate makes it possible to control the thickness of coating film, ensures quality consistency.
5. Offers flexible adjustements to 0-100kv high voltage & Max180μa current.
6. An powerful LCD display gives clear showing of all those parameters and functions.
COLO-08 Manual Powder Spray Gun
1. Built-in 100kv negative cascade for high transder efficiency
2 Nozzle assortment including:
Extensions nozzles to penetration corner, fan spray nozzles, and round nozzles to optimize different applications.
3. Back cover has remote control of powder flows and programs selection.
4. Robust and durable design esnures long service life.
5.The ergonomic gun lies balanced in the hand, enables you to coat efficiently and faster.
Specifications of COLO-191S Electrostatic Powder Painting Spraying Machine

Voltage	AC 220V / 110V
Frequency	50-60Hz
Power	50W
Output Voltage	DC24V
Max Voltage	0-100 KV adjustable
Max Powder Injection	600g/min
Max input air pressure	10kg/cm
Optimum input-air pressure	6kg/cm
Minimum input-air pressure	4kg/cm
Maximum water vapor content or compressed	1.4g/Nm3
Maximum oil vapor content of compressed air	0.1ppm
Maximum compressed -air consumption	13.2m3/h
Temperature Range in Use	-10 ºC-50 ºC
Gun Weight	500g
Maximum Output Current	180Ua
Polarity	negative

Advantages of Powder Coating compared with traditional wet painting
1. Tough and durable finish.
2. Environmental protection, not cause pollution.
3. High usage of coating material
4. Corrosion resistence, aging resistance.
5. High efficiency and perfect coating effect.
Application area
COLO powder coating machine can be used for Hub, Furnitur , Metal Rail, Metal products, Glass products, Metal or Glass Cup, Any Metal or Glass you want, Add Color,Powder Color Test , Samll and Complex piece.
