Sw-10 Automatic Three Dimensional 3D Powder Mixer for Pharmaceutical Chemical Industrial Dry Powder

Product Description

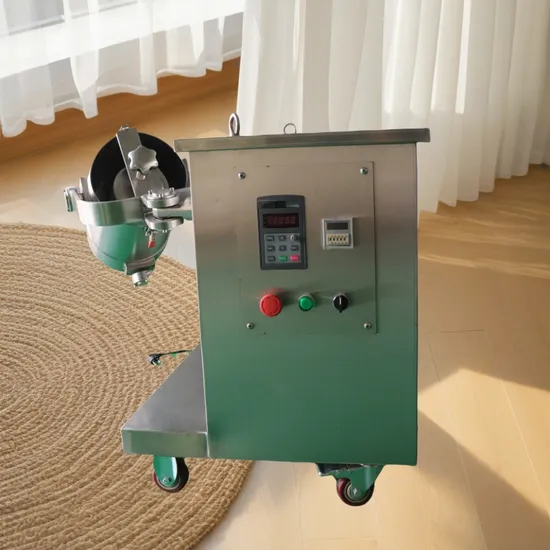

SW-10 Automatic Three Dimensional 3D Powder Mixer for Pharmaceutical Chemical Industrial Dry Powder
Product Name : Powder Mixer Machine
Model: SW-10
Barrel Capacity: 10L
Material Processed: Chemicals, Food, Medicine
Max. Loading Volume (L): 9L
Range of Spindle Speed(r.p.m): 1 - 12 r.p.m
Max. Loading Capacity: 4KG/TIME
Weight (KG): 115 KG
Material: SUS304
Voltage: 220V OR 110V
Dimension(L*W*H):860*800*860mm
Power (kW): 0.37 kW
Warranty: 1 Year
After-sales Service Provided:Video technical support
This 3D mixer is suitable for pharmaceutical, chemical, food, feed, ceramics, metallurgy and other industries of dry powder, granular material mixing.Simple structure,easy to operate.
It is convenient to maintain and clean. It is an ideal equipment for enterprises.
This machine is suitable for mixing dry powder and granular materials in pharmaceutical, chemical, food, feed, ceramics, metallurgy and other industries.
The loaded cylinder is driven by the driving shaft to perform compound movements such as translation, rotation and tumbling over and over again, prompting the material to perform three-way compound movements in the circumferential, radial and axial directions along the cylinder, thereby realizing a variety of materials.
The mutual flow, diffusion, accumulation, and doping achieve the effect of uniform mixing; during operation of the machine, due to multi-directional mixing, the flow and diffusion are accelerated, and the material gravity segregation and diffusion caused by the centrifugal force of general mixers are solved. Accumulation phenomenon, no dead ends in mixing, can effectively ensure better quality of mixed materials.
For example: coffee powder, white sugar, Chinese herbal medicine, flour, food powder, spices, chemical fertilizers, iron powder metal powder, color masterbatch, feed, etc.
Multi-directional movement, short mixing time, high efficiency, loading coefficient up to 0.8 (ordinary mixers are around 0.5)

Model	SW-10 3D Mixer
Barrel volume (L)	10
Working volume (L)	9
Max loading (Kg)	4
Motor power (Kw)	0.37
Hybrid speed (r/min)	1-12
Overall size(mm)	860*800*860
weight (Kg)	115
Best mixing time per time (min)	15-20

This SW-10 3D Mixer Machine Details
1. Compact structure, easy to operate and maintain.
2. Made of stainless steel
3. Elegant design of V-like machine body to blend stuff with no dead corner.
4. Works very steady and quite.
5. Digital control the blending time.
Application: This machine is suitable for mixing dry powder or granular materials such as pharmaceuticals, chemical industry and food.
Chemical products: iron powder, copper powder, magnesium powder and other chemical powder.
Feed: It can be mixed with various feeds, such as fishery feed, poultry feed, wildlife feed, fowl feed and so on.
Food: such as condiments, additives, vitamins, and various sugar products.
Structure:
Low noise, beautiful and concise appearance, convenient operation and maintenance, no residue, no cross-contamination.
The machine is made of 304 stainless steel for the contact part and shell with medicine. The cylinder body is made of stainless steel. It is corrosion-resistant and has long service life.
Technical Parameter of other models:

Model	SW 10	SW 20	SW 50	SW 100
Barrel volume	10L	20L	50L	100L
Maximum charge volume	9L	17L	42.5L	85L
Maximum charge weight	4kg/time	17kg/time	42.5kg/time	85kg/time
Spindle speed	12r/min	12r/min	0-10.6r/min	0-10.6r/min
Motor power	0.37kw(220v,50hz)	0.55kw(220v,50hz)	0.75kw(220v,50hz)	1.5kw
Dimensiom(L*W*H)	860*800*860mm	800*800*650mm	890*1150*1250mm	1350*1400*140mm

Model	SW 200	SW 400	SW 600	SW 1000
Barrel volume	200L	400L	600L	1000L
Maximum charge volume	180L	340L	540L	800-850L
Maximum charge weight	180kg/time	204kg/time	540kg/time	480-510kg/batch
Spindle speed	0-11r/min	1-8r/min	0-8.5r/min	0-6r/min
Motor power	2.2kw	4kw	5.5kw(220v,50hz)	11KW
Dimensiom(L*W*H)	1450*1500*1400mm	1650*1900*1900mm	1750*2100*2100mm	2180×2500×2200mm
Weight	568kg	1000kg	1200kg	1500 kg

FAQ ( Frequently Asked Questions ) Q: What's your MOQ ?
A: It is ok if you need 1 piece of this 3D mixer machine for a test .
Q: How can I pay ?
A: We have western union, bank transfer and Online payment way with trade assurance, it is similar to ****** .
Q: Do you have 220V motor and 110V motor for Choice ?
A: We have 110V and 220V motor for choice, and meanwhile we have different plug for different countries, our clients can use it directly after receiving it .
Q: What's the shipping time
A: Different countries have different shipping time, you can tell me which city you are in, and we would tell you the accurate shipping time .
Q: What's the shipping service
A: We can help complete Customs-clearance, and also cover tariff since many friends don't want to contact Customs to do Customs-clearance in person .
