Panel Furniture CNC Cutting Machine 1325 Carpentry Furniture CNC Wood Milling Machine DSP Controller for CNC Router

Product Description

Product Parameters

Woking area	600*900*200mm or 600*900*500mm
Table style	Aluminum T-slot table with PVC
Table surface	Welded steel tube,cast iron vertical shafts and steel gantry
Spindle	3.0KW water cooling spindle
Spindle rotating speed	0-24000rpm
Collect size	ER20
Guide rail	Taiwan Hiwin linear square guide rail
Driving method	X,Y axis by helicia gear rack,Z axis by TBI ball screw
Motors and drivers	Stepper motor 450B and leadshine drivers MA860H
Control system	NCstudio control system
Invert	Fuling invert
Max.working speed	12m/min
Instruction formate	G code*.u00*.mmg*.plt
Woking voltage	AC220V/AC380V,single phase/3 phsae,50-60Hz
Standard software	Artcam 2010
Compatible software	Type3
Control Cabinet	Independent
Other	Tool sensor;Oiling system;Water pump;Tool Box,English manuals etc.
Optional parts	1)4.5kw water cooling spindle; 2)Rotary axis(80mm//100mm/150mm) diameter; 3)Mach3/DSP control system; 4)Dust collector; 5)Vacuum table with 5.5kw vacuum pump.

Machine can be customized according to customer requirements. Product Description
Wayne CNC router machine is an intelligent cutting and milling equipment. Designed to meet diverse complicated processing requirements, highly versatile with routing, drilling, cutting, sawing, slotting and other functions.Wayne CNC Router machine has carousel tool magazine, which can be installed beside the spindle or on the side of the fuselage. By changing different tools automatically, the CNC router machine can complete multiple and complex processes at one operation.It can realize cutting, engraving, drilling, routing, grooving, and pocketing of wood, MDF, acrylic, PVC, plastic, foam, and other materials.
Wayne CNC router machine is the first choice for enterprises with large production volume. Compared with the traditional manual tool change production method, this type of wood CNC machine has an independent tool magazine with different tool bits. It can automatically change the required tools by computer program control without stopping work during processing.
1.Wood Processing: processing of various furniture such as door, window, cabinet, screen and so on 2.Advertisement: engraving and cutting various labels and number plate.
3.Art crafts: engraving characters of any languages and graphics on gifts and souvenirs
Main Feature
1. Z axis feeding height 200mm
2. Square tube welded steel frame structure-8mm thickness
3. Aluminum T-slot table or Vacuum table +5.5kw Vacuum pump
4. X axis rack and pinion drive, Y axis 2 way rack and pinion drive and Z axis 2510 Ball screw
5. X, Y, Z axis Taiwan square rails PMI
6. 450B stepper motor and MA860H Leadshine driver or servo motor and driver
7. 3.0KW water cooling spindle and 3.7kw Fuling inverter, other spindles are optional
8. Nc-Studio-5.4.49 control system, DSP or Mach 3 is optional
Options
1)4.5kw water cooling spindle;
2)Rotary axis(80mm//100mm//150mm diameter);
3)Mach3/DSP control system;
4)Dust collector;
5)Vacuum table with 5.5kw vacuum pump

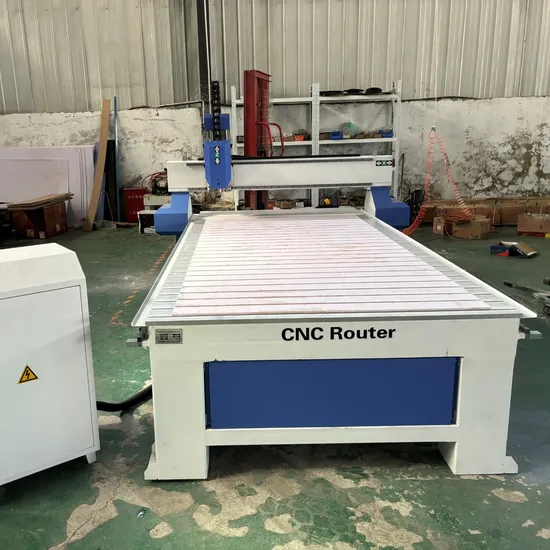

Detailed Photos
Packaging & Shipping
Company Profile
Liaocheng Wayne new materials Co., Ltd. is famous in CNC Router and Laser engraving & cutting machine , located in Liaocheng city, Shandong.Our main products: Large-scale ATC Woodworking Router Machine, 5axis CNC router machine, CNC advertising router machine, CNC marble engraving machine, CNC plasma cutting machine, CNC metal mold machine, CNC lathe machine ,Swiss type lathe machine,Fiber laser cutting machine, CO2 laser cutting engraving machine and laser marking machine ,laser welding machine ...Ect.Depend on high-tech and high-quality products to build the world brand ′Wayne′′,Our machines exported to more than 100 countries and regions like the United States, Germany, Indonesia, Canada, Australia, Russia, Southeast Asia, and etc.
Our main aim is do better service for our customer . Stock or custom configurations are our specialty. Components for our machines are sourced from world class suppliers and innovators in machine control. These machines are used in many industries, crafts and arts businesses around the world. These include woodwork, metal and stone work, aluminum fabrication, boat building, shop fitting, mold making, to name a few. Our dedicated and highly skilled after sales service department, sales team, and thorough quality assurance procedures mean that you can buy with confidence. We welcome customers and potential business associates from around the world. We can work together cooperatively for mutual benefit. "Best Service ,Best quality ,Best price " Wayne is your best choise,We are sincerely looks forward to working with you to create greater value.Waiting for your requirement ,lets talk with me ,i am waiting for you .
FAQ
1. Is it all right to make customer's own brand name?
A: yes. we are available with OEM
2. Are you a manufactuer or trading company?
A:We are the manufacturer with Laser machine and CNC lathe machine
3. Can you do the design for us?
A: yes. if you want a different control system design or higher column , we are available.
4 . What is your terms of delivery?
A: FOB Qingdao.
5. What's your payment term?
A: T/T OR L/C at sight.
