Flange Facer Portable Flange Facing Machines Resurfacing Pipe and Tube on-Site Pipe/Flange Rtj Grooves Machining
| US$4,000.00 | 1 Piece (MOQ) |
Basic Info.
Model NO.
CM1500
Drive
Pneumatic ,Hydraulic, Electric
Mounting Method
ID Mounted
Speed
10-33 Rpm
Clamping Range
145-813mm
Processing Range
152-1016mm
Weight
53kg
Transport Package
Plywood Cases
Specification
depends on size
Trademark
CAMINIX
Origin
China
HS Code
9031809090
Production Capacity
5000000PCS a Year
Product Description

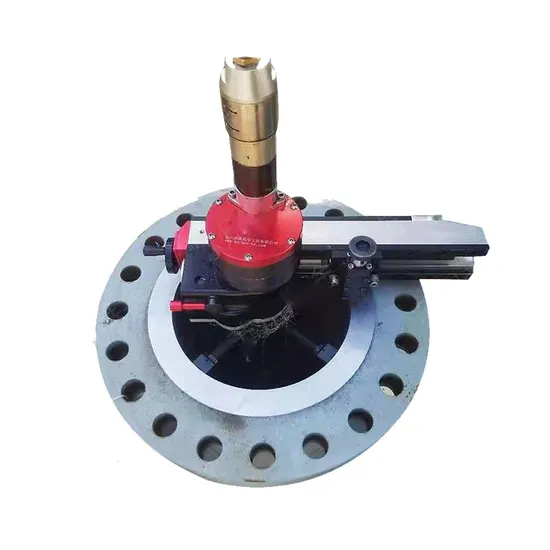

Portable Flange Facing Machine Model CM1500Portable flange surface processing machine CM610 is mainly used for on-site processing of flange sealing surfaces such as flange smooth surface, water line, straight groove, RTJ sealing groove, lens sealing surface, heat exchanger sealing surface, etc. It can be located at any angle. processing.
Processing material: cast iron, alloy structural steel, stainless steel, aluminum and other metal materials.
| Mounting Method | Inner Diameter Mounted CM1500 |
| Motor | 4.0 HP |
| Rpm | 10-33Rpm |
| Weight | 50KG |
| Clamping Range | 145-813mm |
| Processing Range | 152-1016mm |
| Tool Travel Range | 102mm |
Features: Inner Clamp Installation, High Rigid Support, Suitable Big Cutting processing requirements , High efficiency The tool holder angle can rotate, wide application Two mode selection, Pneumatic or Electric mode Feed Handwheel with scale , accuracy feeding Tool Axial and radial automatic feeding with high precision The tool can be adjusted in 50mm. Surface roughness below Ra 0.8 um Rotating Speed wide adjustable ,meet different processing requirements Horizontal, Vertical, Upside, Tilting all can be installed . Processing Flat face, water line, Groove etc .
