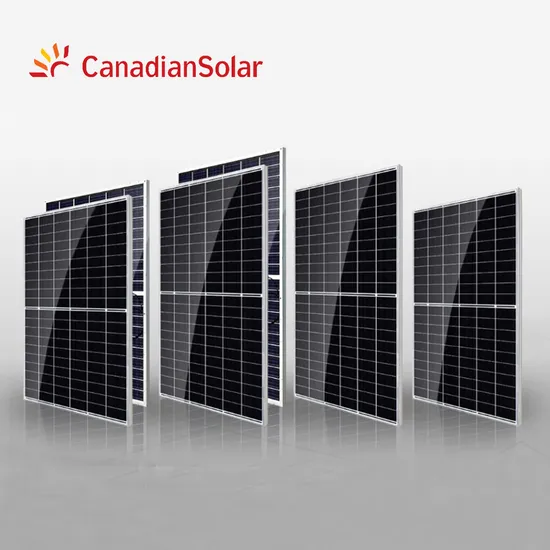

Trina Hot Promotional Canadian Jinko Ja Longi Mono Photovoltaic Panel High Efficiency 210mm Half Cell 540W 550W 555W Solar Panels for Solar Home Module System

Product Description

Solar PV Module N Type Bifacial 630W Solar panel

High Quality&Efficiency Crystalline Silicon Cells: A grade solar cells
A Wide Range of Products:Mono-crystalline solar panel and poly(multi)-crystalline solar panel(depending on configurations)
High Reliability:Guaranteed mechanical resistance to severe weather conditions for reliable power output.Compliant with IEC 61215 and IEC61730.Certified by TUV,CE,ISO and etc.
Tight Tolerance:Guaranteed positive tol erance from 0-3% ebsures power ♦output reliability.
Traceability:We provide flash report and embedded bar code ID for each module for complete traceability
A Wide Range of Applications: Independent systems(household,powder supplies for remote areas, remote systems, ete.)and grid-connected photovoltaic power stations(residential,commercial, industrial power supply systems)
Warranty:10-year limited product warranty and 25-year limited power guarantee

Product Specifications Electrical Specification(STC*) TYPE JAM72D42-615/LB JAM72D42-620/LB JAM72D42-625/LB JAM72D42-630/LB JAM72D42-635/LB JAM72D42-640/LB Rated Maximum Power(Pmax) [W] 615 620 625 630 635 640 Open Circuit Voltage(Voc) [V] 51.87 52.07 52.27 52.47 52.67 52.87 Maximum Power Voltage(Vmp) [V] 43.31 43.51 43.71 43.90 44.10 44.29 Short Circuit Current(lsc) [A] 15.06 15.11 15.16 15.21 15.26 15.31 Maximum Power Current(lmp) [A] 14.20 14.25 14.30 14.35 14.40 14.45 Module Efficiency(%) 20.0% 22.2% 22.4% 22.5% 22.7% 22.9% Power tolerance 0~+3W Temperature coefficients of Isc +0.046%/ºC Temperature Coefficient of Voc -0.260%/ºC Temperature Coefficient of Pmax -0.290%/ºC STC lrradiance 1000W/m², cell temperature 25°C, AM1. 5G ELECTRICAL CHARACTERISTICS WITH 10% SOLAR IRRADIATION RATIO Rated Max Power(Pmax) [W] 664 670 675 680 686 691 Maximum Power Voltage-VMP (V) 43.31 43.51 43.71 43.90 44.10 44.29 Maximum Power Current-IMP (A) 15.34 15.39 15.44 15.50 15.55 15.61 Open Circuit Voltage-VOC (V) 51.87 52.07 52.27 52.47 55.67 55.87 Short Circuit Current-ISC (A) 16.26 16.32 16.37 16.43 16.48 16.53 Irradiation Ratio (rear/front) 10% Mechanical Specification: Solar Cell Type: Mono-crytalline Number of Cells: 144 cells Module Size: 2465*1334*30mm Weight: 34.6KG Glass: 2.0 mm Junction Box: IP 68, 3 diodes Cable: Photovoltaic Technology Cable 4.0mm2 (0.006 inches2), Connector: MC4 EVO2A / QC 4.10-351

product processing

Package&Delivery
Project Case
Cerficication
FAQ 1. Who are we?
We are ANHUI SHANGXIA SOLAR ENERGY CO.,LTD
2. How can we guarantee quality?
We have the most advanced fully automatic production equipment
Always final step by step Inspection system before shipment;
3.What can you buy from us?
Solar Panel, the complete sets for System
4. Are you manufacturer? Or trade company?
Manufacturer
5. What services can we provide?
Accepted Delivery Terms: FOB,CIF,EXW,Express Delivery;
Accepted Payment Currency: USD,EUR,HKD,CNY; etc
Accepted Payment Type: T/T,Cash;
Language Spoken: English,Chinese,French
6. What is the lead time?
Normally 15 working days after advance payment. Why Choose Us Anhui Shangxia solar energy Co.,Ltd (AS solar)is a professional manufacturer specialized in Solar Panels with more than 15 years of experience. Our main products include: poly and mono solar panels, solar batteries,solar power system, solar charger controller, solar inverters, solar lights, solar air-conditoning etc...we is specialized in customizing services for solar systems and faces the world. Our export products are mainly sold to more than 60 countries and regions in Europe, Asia, Americas and the Africa. A trustable and reliable supplier for your business. We have already exported our products around the world includes Australia,Africa,Russian, Middle East, South American, Asia and so on.Welcome for bussiness with us!
