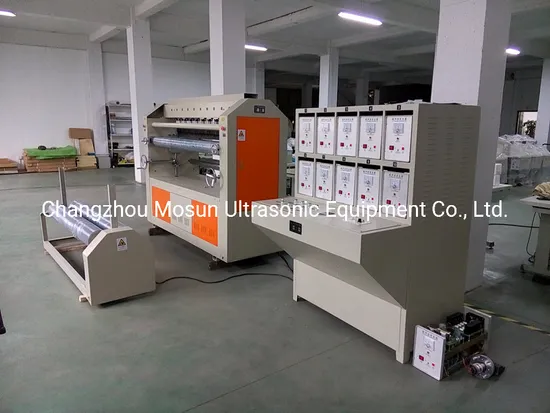

Economic Ultrasonic Quilting Machine for Bedding Sheet (CE certificated)

Product Description

Economic ultrasonic Quilting Machine for bedding sheet
Model: MS-2600
* Technical specifications:

Good Description:	Ultrasonic quilting machine
Model:	MS-2600
Voltage Supply:	380V±5V 50Hz (60Hz)
Installed Power:	12KW
Ultrasonic Frequency:	20KHz, 18KHz available.
Working Speed:	0-13m/min, adjustable.
Quilting Work Width:	2600mm
Pattern Roller Sizes:	2650MMxØ(155-175)MM
Materials Suitable:	polyester, nylon, polyester wadding, and non-woven fabrics.
Usages:	Ultrasonic non-needle & non-thread quilting for bedding cloth, mattress material, garment lining, non-woven lamination and so on.
Packing Volume:	About 13.50M3
Gross Weight:	About 1800.00KGS

1. Basic Equipment:
1) This machine adopts the latest ultrasonic control cabinet with stable and strong power, which is suitable for long operation. There is computer core plate in it; The multi-line ultrasonic protection system guarantees stable operation of mainframe.
2) Structure of whole machine: (1). Embossing compound mainframe; (2). Ultrasonic control cabinet; (3) Finished products rewinding machine; (4). Bracket for putting materials.
2. Characteristic:
1). Without needlework that omits the bother of replacing line; The product is beautiful;
2). It has better outlook that is suitable for times.
3). It can replace pattern at random according to request.
4). It has high stitching capacity with high efficiency.
3. Applied Example:
Producing kinds of fiber textile, artificial leather, spraying rubber cotton, non-woven fabrics or the compound of needle-punched cotton; It can design pattern at random; The lining production of costume, bedspread, pillow, sofa and the production of inner decoration.
