High Quality Finger Joint Shaper China Supplier
| US$2,000.00-6,000.00 | 1 Set (MOQ) |
Basic Info.
Model NO.
MXB3530
Voltage
380V
Tool Holder
Single-tool Holder CNC Lathe
Automatic Grade
Semiautomatic
Precision
High Precision
Setting Mode
Table
Controlling Mode
CNC
Power Source
Joint Drive
Processing Accessory
Centre CNC Lathe
Certification
CE
After-sales Service
Free Service on Internet
Max. Working Width
500mm
Working Thickness
20-300
Min. Working Length
250mm
Motor Power of Shaping
22kw*2
Shaper Spindle Diameter
70
Shaper Spindle Speed
6500rpm
Motor Power for Cutting-off
5.5kw
Cutting-off Saw Speed
2800rpm
Saw Blade Diameter for Cutting-off
350
Scoring Saw Power
0.75kw
Transport Package
PE Film
Specification
3292*1510*1595mm
Trademark
CHANCSMAC
Origin
China
HS Code
8465910000
Production Capacity
20 Sets/ Month
Product Description

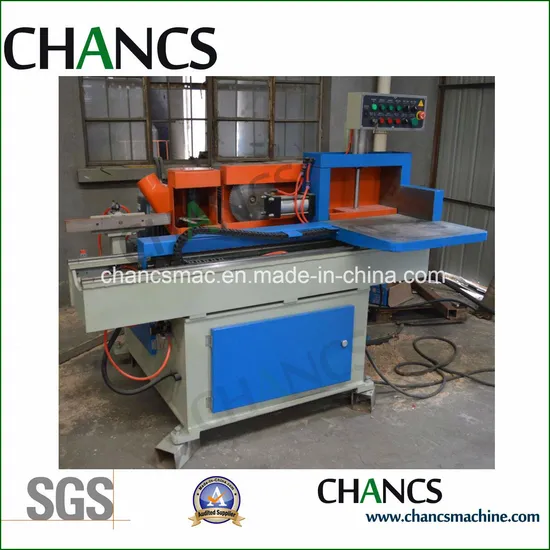

Finger Joint Shaper
1.Features:
1. Multi-function: trimming, scoring/ deburring, tenoning/teeth milling.
2. Dual shaft design: There are two high speed tenoning/teeth milling shafts to meet deeper milling requirements
3. High precision: Machine lathe equips imported bearing, rack and rails. To make sure machine running more stable and durable
4. Dual air pressure clamp design: In order to mill thick and long timber, we design double press with air pressure and detective sensor. Can assure the teeth milling precision, stability, and safety.
5. Finger shaper for glulam adopts hydraulic system and oil cylinder, very suitable for beam tenoning, can drive the working table powerfully, smoothly, stably and effectively
2.Parameter:
| Model | MXB3525 | MXB3530 |
| Max. working width | 500mm | 500mm |
| Working thickness | 20-250 | 20-300 |
| Min. working length | 250mm | 250mm |
| Motor power of shaping | 15kw*2 | 22Kw*2 |
| Shaper spindle diameter | Φ70 | Φ70 |
| Shaper spindle speed | 6500rpm | 6500rpm |
| Motor power for cutting-off | 5.5kw | 5.5kw |
| Cutting-off saw speed | 2800rpm | 2800rpm |
| Saw blade diameter for cutting-off | Φ350 | Φ350 |
| Scoring saw power | 0.75kw | 0.75kw |
| Scoring saw diameter | Φ150 | Φ150 |
| Scoring saw speed | 2800rpm | 2800rpm |
| Hydraulic system power | 2.2kw | 2.2kw |
| Hydraulic system pressure | 1-3Mpa | 1-3Mpa |
| Air pressure system | 0.6Mpa | 0.6Mpa |
| Working table size | 700 * 650mm | 700 * 650mm |
| Total weight | 1600kg | 1800kg |
| Overall dimensions(L*W*H) | 3292*1510*1595mm | 3350*1610*1630mm |
3.Detailed Images:
4 FAQ:
List some questions customers care about, if you have more quotations, please feel free to contact with us
1. Q: What's the MOQ?
R: One set will be ok.
2. Q: Provide customized machine Yes or NO?
R: Yes. We have professional designers and engineers to supply customized machines.
3. Q: What is payment terms?
R: 30%T/T in advance, the balance paid before shipment after insepction.
4. Q: What is warranty time?
R: One year.
