CNC-Cgp-3000 Plasma Cutting CNC Machine with Air Compressor with High Rigidity

Product Description

Product Description

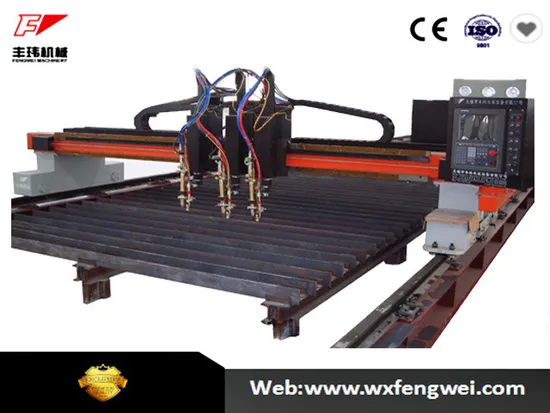

CNC Flame & Plasma Cutting Machine, also known as Gantry-type Flame & Plasma Cutting Machine, is effectively used to cut Metal Work Pieces into random shape with over 6-mm thickness
The machine consists following features:
1. Both driving end and cross beams adopt box-beam welding structure whose stress has been relieved, it features compact structure, light weight, good rigidity, small deformation and artistic appearance.
2. The driving of the main longitudinal end beam and moving of transverse torch adopts Japan Panasonic servo driver and motor which drives Japan SHIMPO reducer through rack-and-pinion gearing.
3. The side of driving end beam equipped with horizontal guiding wheels which can make the guiding wheel press rail tightly by adjusting its eccentric shaft to ensure the stability and accuracy.
4. The longitudinal guide rails are all made by high intensity track, all the contact surface of track has
precision machining and accurate grinding racks are installed outside the guide way.
5. The longitudinal guide rails are firmed by pressing plate backing board and connecting sleeve, which can ensure the longitudinal straightness and parallelism of rail.
6. Automatic igniter and height controller of torch can be chosen according to customer's requirement,
with convenient operation.
Technical Parametre
