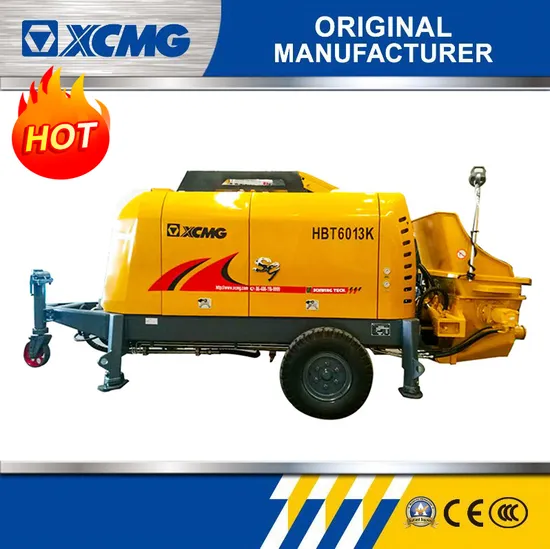

XCMG Hbt6013K 118kw Used Concrete Trailer Pump Lightweight Concrete Pump Price
1,By comprehensively incorporating Schwing switch-over control technology, the extraction and control of switch-over signal is totally done by hydraulic pressure, avoiding the unreliability brought by frequent electrical contact and harsh environment and reducing customers' later maintenance cost. .
2,By adopting exclusive invariable reversing buffering technology in the industry, the pump displacement keeps unchanged during pumping and reversing and the main system unloads in low pressure, which thoroughly avoid such problems as long reversing time, great reversing impact and low service life of pump caused by frequent change of displacement during traditional reversing.
3,The use of equivalent bending moment design ensures uniform force, reliable sealing and greatly prolongs the service life of bearing ring, spectacle wear plate and cutting ring. The feature of unilateral wear makes the theoretical service life of rock valve once higher than that of S-valve.
4,Independently controlled electrical lubrication technology can realize grease supply intermittently during pumping and save grease consumption by 50% on the basis of ensuring lubrication effect.
5,Piston change is easy, convenient and time-saving. Traditional piston needs to be changed by repeatedly mounting and dismounting linkage and pumping at low speed.
6,The system ensures the cleanness of hydraulic oil and thus generates higher operational reliability of hydraulic system, pump and other hydraulic elements.
Product Parameters

Description		Unit		Parameter value
Overall performance		Overall dimensions	mm	6115×2100×2810
		Total curb mass	kg	7000
		Concrete delivery value	m3/h	65/40
		Max. output pressure	Mpa	13
		Pulling speed	km/h	Three-level road 8km/h
				Road above two-level16km/h
		Delivery distance(vertical/horizontal)	m	150/600
		Hopper capacity/filling height	m3/mm	0.6/1370
		Concrete slump range	mm	80-230
		Concrete delivery cylinder diameter/stroke	mm	200/1400
Power system	Main motor (diesel engine)	Model		WP4G160E331
		Rated power	kw	118
		Rated rev	r/min	2200
		Manufacturer		WEICHAI
Hydraulic system	Type			Open type
	Pressure of hydraulic system	Mpa		32
	Main oil pump	Model and type		A11VLO130
		Rated working flow	L/min	260
		Manufacturer		Rexroth
	Pumping oil cylinder diameter /stroke		mm	125/1400
	Capacity of hydraulic oil tank		L	600
Mixing system				Large torque at low speed
Lubrication system				Energy-saving type automatic centralized lubrication
Cooling system				Air cooling
