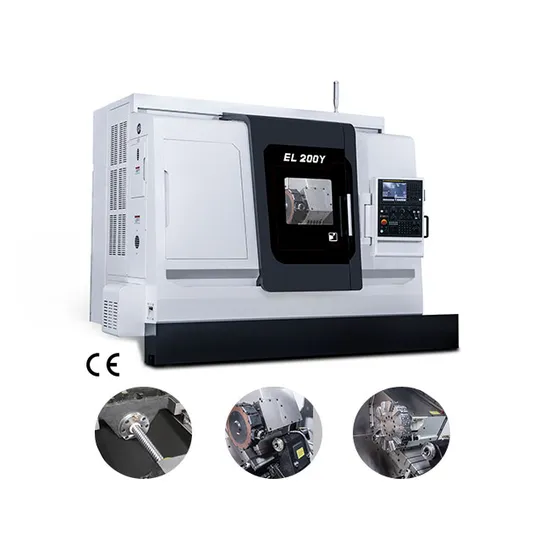

China Machine Automatic Torno CNC Slant Bed Lathe CNC Lathe
| US$15,000.00 | 1 Piece (MOQ) |
Basic Info.
Model NO.
EL200
Type
Vertical Lathe
Processing Accessory
Centre CNC Lathe
Guide Rail
Horizontal Guide Rail
Tool Holder
Single-tool Holder CNC Lathe
Power Source
Electric
Controlling Mode
CNC
Automatic Grade
Automatic
Setting Mode
Floor-type
Precision
High Precision
Certification
CE
Condition
New
Max. Swing Diameter
650
Max. Swing Diameter of Saddle
330
Max. Cutting Diameter
450
Max. Spindle Speed
3500
Turret Capacity
12
Transport Package
Wooden Case
Trademark
Fagor
Origin
China
Production Capacity
100 Pieces/Year
Product Description
| Parameter(FANUC Oi-TF) | Unit | EL200(L) | EL 280(L) | EL 200Y(LY) | EL280Y(LY) |
| Max. swing diameter | mm | Φ650 | Φ650 | Φ650 | Φ650 |
| Max. swing diameter of saddle | mm | Φ330 | Φ330 | Φ330 | Φ330 |
| Max. cutting diameter | mm | Φ450 | Φ450 | Φ350 | Φ350 |
| Max. cutting length | mm | 570(720) | 540(690) | 500(650) | 470(620) |
| Spindle | |||||
| Spindle motor power(Continuous/30min) | kw | 11/15 | 11/15 | 11/15 | 11/15 |
| Max. spindle speed | rpm | 4200 | 3500 | 4200 | 3500 |
| Spindle nose | A2-6 | A2-8 | A2-6 | A2-8 | |
| Diameter of spindle hole | mm | Φ76 | Φ91 | Φ76 | Φ91 |
| Max. bar diameter | mm | Φ65 | Φ80 | Φ65 | Φ80 |
| Chuck size | inch | 8" | 10" | 8" | 10" |
| Feed shaft | |||||
| Max. X/Z/Y axis travel | mm | 250/580(730) | 250/580(730) | 250/543(690)/100 | 250/543(690)/100 |
| X/Z/Y axis motor power | kw | 1.8/1.8 | 1.8/1.8 | 3.0/1.8/3.0 | 3.0/1.8/3.0 |
| X/Z/Y axis fast moving speed | m/min | 30/30 | 30/30 | 30/30/10 | 30/30/10 |
| X/Z axis slideway type | Linear guide rail | Linear guide rail | Linear guide rail | Linear guide rail | |
| C axis(Optional) | |||||
| Min. spindle positional accuracy | -- | -- | ±0.001° | ±0.001° | |
| Dynamic accuracy | -- | -- | ±0.002° | ±0.002° | |
| Power turret | |||||
| Turret capacity | 12 | 12 | 12 | 12 | |
| Square tool | mm | 25 | 25 | 25 | 25 |
| Round tool | mm | Φ40 | Φ40 | Φ40 | Φ40 |
| Power turret motor power | kw | -- | -- | 3.0 | 3.0 |
| Power turret tool model | -- | -- | BMT55-ER32 | BMT55-ER32 | |
| Power turret speed | rpm | -- | -- | 4000 | 4000 |
| Tailstock | |||||
| Mandrel diameter | mm | Φ70 | Φ70 | Φ70 | Φ70 |
| Mandrel travel | mm | 150 | 150 | 150 | 150 |
| Tailstock travel | mm | 460(610) | 460(610) | 460(610) | 460(610) |
| Taper of tailstock sleeve | MT#5 | MT#5 | MT#5 | MT#5 | |
| Mandrel/tailstock control programmable | YES/NO | YES/NO | YES/NO | YES/NO | |
| Tailstock move way | Saddle drive | Saddle drive | Saddle drive | Saddle drive | |
| Specification | |||||
| Positional accuracy(X/Z) | mm | ±0.005 | ±0.005 | ±0.005 | ±0.005 |
| Repeated positioning accuracy(X/Z) | mm | ±0.003 | ±0.003 | ±0.003 | ±0.003 |
| CNC system | FANUC | FANUC | FANUC | FANUC | |
| Chip conveyor | Side | Side | Side | Side | |
| Dimension | mm | 2519X1750X1695 | 2519X1750X1695 | 3211X1750X2207 | 3211X1750X2207 |
| Weight | kg | 3700/4200 | 3900/4500 | 4500/5000 | 4700/5200 |
