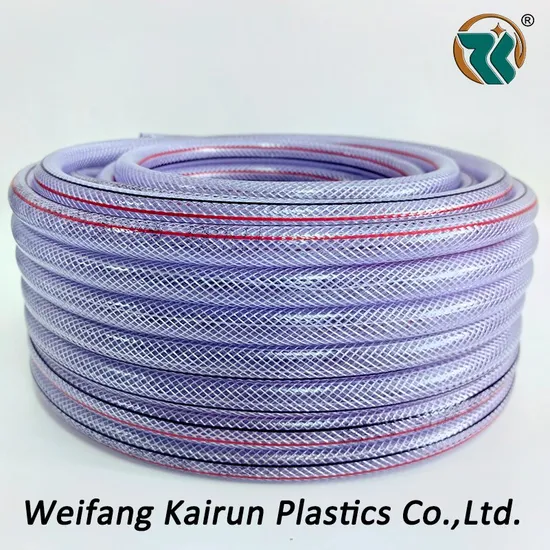

ISO Standard PVC Material ID 12mm Irrigation Water Garden Reinforced Hose

Product Description

Product DescriptionISO Standard and PVC Material ID6 mm PVC Irrigation Fiber Reinforced Hose

Size	4mm-75mm
Length	10m,20m,30m,50m,60m,70m, 100m or Customized
Color	Clear, blue,red,yelor black,green ,any color
Standard of Quality	ISO9001:2015
Sample	Allowed

SIX ADVANTAGES,
1. Directly Factory Supply
2.Quality Guarantee
3.Advance Technology
4.Superior Materila
5.Non-Toxic No Smell
6.UV Protechtion Anti-CrackingAPPLICATIONS:
The product is used for conveying water , oil ,gas under normal working condition in the factory , farm , ship , building and family.
CHARACTERISTICS:It is flexible, transparent ,durable ,non−toxic without odor ,anti−erosion and adaptable to high pressure condition. By adding colorful symbol lines on the surface of hose ,it looks more beautiful.
WORKING TEMPERATURE:−5ºC−−−65ºC
SPECIFICATIONS OF PVC FIBER REINFORCED HOSES

		Metric Measurement					Weight	Packing Measurement	Volume
					W.P.	B.P.
Item No.	Inch	(I.D)	(O.D)	Length	At23ºC
		mm	mm	m/roll	Mpa	Mpa	kg/roll	DxH mm	m³
KR-5x2	13/64	5	9	170	1.2	3.6	10	420x130	0.023
KR-6x2	1/4	6	10	148	1.2	3.6	10	430x150	0.025
KR-6X2.5		6	11	112	1.2	3.6	10	400x150	0.024
KR-6x3		6	12	88	1.2	3.6	10	400x150	0.024
KR-8x2	5/16	8	12	118	1.2	3.6	10	440x150	0.029
KR-8x2.5		8	13	90	1.2	3.6	10	425x145	0.026
KR-8x3		8	14	72	1.1	3.3	10	420x145	0.025
KR-9x2	3/8	9	13	108	1.1	3.3	10	430x150	0.027
KR-9x2.5		9	14	83	1.1	3.3	10	425x150	0.027
KR-10x2	13/32	10	14	100	1.1	3.3	10	440x150	0.03
KR-10x2.5		10	15	76	1.1	3.3	10	425x155	0.028
KR-10x3		10	16	61	1.1	3.3	10	430x140	0.026
KR-12x2	1/2	12	16	169	0.8	2.4	20	560x180	0.056
KR-12x2.5		12	17	130	0.8	2.4	20	560x200	0.062
KR-12x3		12	18	105	0.9	2.7	20	560x185	0.058
KR-13x2	1/2	13	17	158	0.8	2.4	20	560x195	0.061
KR-13x2.5		13	18	122	0.8	2.4	20	570x190	0.062
KR-13x3		13	19	99	0.9	2.7	20	560x200	0.063
KR-14x2.5	35/64	14	19	115	0.8	2.4	20	560x210	0.066
KR-14x3		14	20	93	0.8	2.4	20	540x220	0.064
KR-15x2	5/8	15	19	138	0.8	2.4	20	630x195	0.077
KR-15x2.5		15	20	108	0.8	2.4	20	580x220	0.074
KR-15x3		15	21	87	0.9	2.7	20	580x220	0.074
KR-16x2	5/8	16	20	131	0.7	2.1	20	580x220	0.074
KR-16x2.5		16	21	102	0.7	2.1	20	580x220	0.074
KR-16x3		16	22	83	1.0	3.0	20	570x205	0.067
KR-18x3	45/64	18	24	75	0.8	2.4	20	570x195	0.063
KR-19x2	3/4	19	23	112	0.6	1.8	20	640x215	0.088
KR-19x2.5		19	24	88	0.7	2.1	20	600x210	0.076
KR-19x3		19	25	72	0.8	2.4	20	580x210	0.07
KR-19x3.5		19	26	60	0.9	2.7	20	570x210	0.068
KR-20x2.5	25/32	20	25	84	0.7	2.1	20	615x210	0.079
KR-20x3		20	26	68	0.7	2.1	20	610x185	0.069
KR-20x3.5		20	27	58	0.8	2.4	20	590x210	0.073
KR-22X4	55/64	22	30	46	0.8	2.4	20	580x220	0.074
KR-25x2.5	1	25	30	69	0.5	1.5	20	640x230	0.094
KR-25x3		25	31	56	0.6	1.8	20	650x220	0.093
KR-25x3.5		25	32	47	0.6	1.8	20	610x250	0.093
KR-32x3.5	1-1/4	32	39	57	0.5	1.5	30	770x230	0.136
KR-32x4		32	40	49	0.6	1.8	30	760x290	0.167
KR-32x4.5		32	41	43	0.6	1.8	30	750x250	0.14
KR-38x3.5	1-1/2	38	45	49	0.5	1.5	30	770x240	0.142
KR-38x4		38	46	42	0.5	1.5	30	770x240	0.142
KR-38x4.5		38	47	37	0.6	1.8	30	780x280	0.17
KR-45x5	1-3/4	45	55	47	0.5	1.5	50	960x340	0.313
KR-50x4	2	50	58	55	0.4	1.2	50	980x240	0.23
KR-50x4.5		50	59	48	0.5	1.5	50	980x240	0.23
KR-50x5		50	60	43	0.5	1.5	50	980x240	0.23
KR-50x6		50	62	35	0.6	1.8	50	930x380	0.33
KR-64x7	2-33-/64	64	78	24	0.5	1.5	50	1050x280	0.308
R-75x7.5	3	75	90	20	0.5	1.5	50	1080x300	0.35

* Other spercifications of the hose can be customized according to customer requirements
Detailed Photos
Product Advantages:
1.All new PVC raw materials ans superior material we use it.
2.Hi-Intensity Fiber Reinforced Hose
3.Soft and easy to operate
4.Strict quality control,and advance technology
5.Hose is non-toxic and no smell
6.Directly factory supply
Packaging & Shipping
Company Profile
WEIFANG KAIRUN PLASTICS CO.,LTD. is a professional manufacturer and supplier in plastics hose buiness. The company running a wide range, and our main products include PVC braided hose,PVC steel wire hose, PVC high-pressure spray hose, PVC garden hose, PVC suction hose, PVC layflat hose, PVC clear hose and so on; specification complete, excellent quality. Our products are mainly used for drawing and conveying air, water, oil and powder in agriculture, industry,engineering ,foodstuffs and so on.
With strong technical force and powerful products innovating capacities, all specifications of products can be customized according to customer requirement.
The company have cover an area of 100acres,with modern standard workshop 10000 square meters ,50 production lines, annual output capacity of 16000 tons.
We have already exported products to foreign market, including Europe and America, Southeast Asia ,South Asia ,Middle East and South Africa.
