1.69 0.96 1.22 1.28 1.3 1.44 1.54 1.7 1.72 inch China Top3 LCD Display Module Manufacturer Smart Wearable Watch Round Square TFT LCD

Product Description

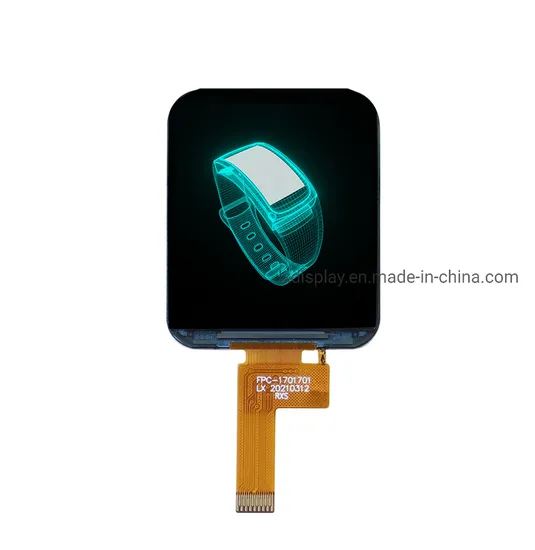

China TOP 3. LCM Supplier for Wearable Devices 1.69" 240X280 LCD module

Item	Contents	Unit
Model No.	LX170A1701	/
LCD Type	TFT TRANSMISSIVE	/
Viewing direction	Full/Free	O' Clock
Module outline (W x HxD)	30.07x37.43x1.60	mm
Active area (WxH)	27.97 x 32.63	mm
Number of Dots	240(RGB) x280	/
Driver IC	GC9307	/
Backlight Type	3 LEDs Parallel	/
Interface Type	4-SPI	/
Input voltage	2.8	V

Lianxun is one of the Top 3 manufacturers who started to produce Small Size of TFT LCDs for Smart Wearable Products in 2015. High Luminance, IPS Viewing Angle. Various Solutions Available, they are also widely used in Consumer Electronics, Small Medical Devices, Smart home , Customized projects.

Similar sizes of TFT LCDs are also very very Popular, including: 0.96", 1.22", 1.3", 1.54"...
LXDisplay owns successful experience of 150+ big projects,
LXDisplay provides instant delivery for standard products from stock,
5-7days for new samples, 7 days for new FPC,
15 days for new Backlight,18 days for new Capactive touch panels,
Lead time for mass production of standard products could be as fast as 10days,
Lead time for special products is as fast as 3 weeks.

Options:	Resistive Capacitive (PCAP)
CTP Structure:	GF,GFF,G+G,P+G
Cover lens Thickness:	0.55,0.7,0.9,1.1,1.8,2.8(mm)...
Cover lens Surface treatment:	Anti-fingerprint(AF), Anti-glare(AG), Anti-reflection(AR)
Driver IC:	Focal-tech, Goodix, ILitek, Atmel...
Lamination of LCD Module+CTP:	Gasket ,OCA,LOCA

FAQ
Q1. How can I trust your product quality?
A:
--Our Raw materials are all ROHS compliant .
--LXDisplay is an ISO9001:2008 and ISO9001:2015 Certified company, we've been adhering to the ISO standards strictly in our production.
--Our products are 100% Visual and Function test before shipments.
Meanwhile, we do necessary Aging test and Reliability tests to our TFT Display modules, eg. Store and Operate in High and Low Temperature & High Humidity Environment, ESD and anti-interference test , Drop(with package) and Vibration Test.
Our Touch Screens goes through Salt spray test, Hardness test, Steel ball Drop test, Flatness test, Thermal shock test…
--Our experience and proficiency make the qualification rate always being 99.7% or above.
--We work with : JADO China, MI, A.O.Smith, Avnet

Q2. Which sizes of LCDs and Touch Panels do you provide?
A:
--Small sizes which include: 0.96", 1.22", 1.3", 1.44", 1.54", 1.77", 2.0", 2.4", 2.7", 2.8", 3.0", 3.2", 3.5", 3.95", 3.97", 4.3", 5", 5.6", 6.86".
--Middle sizes which include: 7", 8", 9", 10.1", 10.2", 13.3".

Q3. Can I have a sample order of before formal order?
A: Yes, sample order is always welcome for new projects or replacement of running projects. We have stock of many standard models of TFT LCD modules and Touch screens from 0.96inch to 13.3inch , which means delivery is able to be made the same day as order.

Q4. What is the lead time for Sample order and Mass Production order?
A:
--For LXDisplay standard products, the lead time for samples is usually 1-7 days, for mass production it could be as fast as 10 days.
--For Customized products,
We are able to get new FPC ready in 7days, new Backlight in 15days, and new Capacitive touch panel or Resistive touch panel in 18days.
Mass production of special products could be as fast as 3weeks.
--In summary, based on our years of big output, we have been keeping good relationship with LCD panel, IC and other material suppliers, we had a steady supply even when there was heavy shortage of materials.

Q5. Do you have MOQ requirement?
A: Yes, it depends on different sizes of products. Please refer to our sales, thanks.

Q6. How do I work with you on Customized products?
A: Firstly please provide us the description of your special requirements, any Drawing or Specification---Our engineers will work out the compatible solution and also mould cost (if any)---We provide Drawing and Specification for Approval---We provide samples for approval after reliability test and aging test---We make modification if necessary---We do small quantity of trial order (if required)---We do mass production.

Q7. Can I have my own silk screen Logo, Part Number or small label?
A: Yes, Definitely. It may requires MOQ, please refer to our sales, thanks.

Q8.How long is the warranty and what is your after-sales service?
A: Usually 12 Months.
If there is any defect within 12months from receiving products, please contact our sales, we will respond within 24hours. If we require any product to be returned to us, the shipping cost will be fully paid by us.

Q9. Do you have any shipping account and can you quote favorable shipping cost?
A: Yes, we have been working with DHL, Fedex more than 11 years, our shipping accounts were granted discount as much as 85% off . Please feel free to ask our sales no matter it is sample or formal order shipment.
