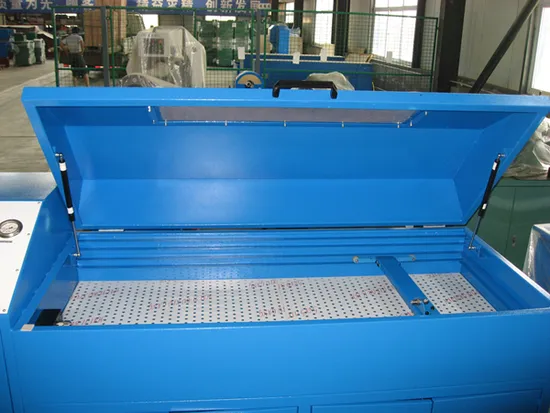

Hydraulic Hose Pressure Test Bench Burst Test Bench

Product Description

KM-150 series hose test benches are our new products.We have introduced the German technology to produce this high-performance test bench.The machine has a pneumatic pump and no electricity needed.The machine is easy for operation with low noise and fast boosting.Testing liquid can be recycled.It played a important role in the improvement of quality and reliability.
Technical Date Of Hose Pressure Test Bench KM-150

Type	KM-150
Testing fluid media	emulsion
Full range of pressure rage	1600bar
Rated input air compression	7bar
Rated testing pressure	1200bar
Rated maximum testing pressure	1300bar
Rated minimum testing pressure	200bar
Effective volume	40L
Dimensions of testing compartment	1680*800*240mm
Height of testing compartment	250mm
Machine dimensions	2000*800*1200mm

Advantages Of Hose Pressure Test Bench KM-150
1. Low noise, fast booting.
2. Equipped with imported pump and valve, safety and steady.
3. Testing liquid can be recycled used.
Application Of Hose Pressure Test Bench KM-150:
SAE100 R13 2" 4-layer steel wire hose
EN856 2" 4SP hose;
EN856 2" 4SH hose
Hose crimping machine why not choose kangmai ? 1. Kangmai hose crimping machine CE& ISO PATENT Approved and SGS Audited. 2. The fitting and hoses crimped by kangmai machine never leakage the oil and never broken. The reasons like below:
(a)The machine head process by CNC machine,roundness and taper is within 0.1mm.
(b)The machine die base and dies adopt special die steel and process by advanced craft, the hardness is above 55 HRC. The die hardness is enough so that the die life is very long and easy to crimping high pressure hydraulic hose, 4SP even 6SP.
(c)The technical of machine head is forging or casting. Casting is cheap but has small hole on machine head. The piston will divide from casting machine head.
