CE Certification Farm Use Grass Straw Chopper Hay Cutter for Poultry Feed

Product Description

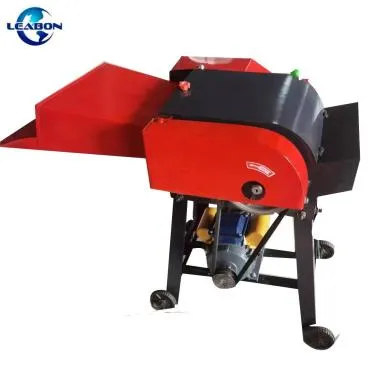

CE Certification Farm Use Grass Straw Chopper Hay Cutter For Poultry Feed
Product Description
This series of hay cutter has the characteristics of reasonable structure, convenient use, simple operation, beautiful shape and strong adaptability. Suitable for chopping corn stalk, rice straw, cereal grass, wheat straw, green weeds and other materials.
Product Parameters

Model	LB-5
Chain width	275
Capacity	5t/h
Motor(kw)	4kw 3Phase
Weight	105kg
Dimension(mm)	1800*550*980mm

Other Type Hay Cutter
1.LB-0.4

Model	LB-0.4
Capacity(kg/h)	400-800kg/h
Motor(kw)	2.2
Packaged dimension(mm)	800*580*1150

2.Chaff Cutter
The machine is powered by a motor. The power is transmitted to the main shaft, and the gear at the other end of the main shaft transmits the speed-regulated power to the grazed grass through a gear box, a universal joint, etc. When the material to be processed enters between the upper and lower pressure grasshoppers, it is pressed. Holding and feeding at a certain speed into the cutting mechanism, after the high-speed rotary cutter is chopped and thrown out of the machine through the grass.

Technical Parameter

Model	Power(KW)	Weight	Dimension(mm)	Capacity(T/H)
LB9Z-3.0	5.5	180	1250*1150*1670	2.5-3.5
LB9Z-5.0	5.5	350	2690*1210*2390	4.5-5.5
LB9Z-8.0	7.5	480	3110*1500*2860	6-8
LB9Z-10.0	15	1000	3510*1800*4210	8-10
LB9Z-12.0	18.5	1285	3810*1900*4230	12-18
LB9Z-15.0	22	1500	4100*1950*4350	15-20
LB9Z-20.0	30	2000	4350*2050*4550	20-30
LB9Z-30.0	45	3000	4850*2350*4550	25-38

Model	LB-4	LB-6
Supporting Power	4KW	7.5-11KW
Machine Weight	160kg	210kg
Output	2000-4000kg/h	4000-6000kg/h
Moving Blades Quantity	4	4

Capacity(t/h)	2.5t	4.8t	6.5t
Power(kw)	3kw/4kw	4kw/4.5kw	7.5kw/9kw
Voltage(v)	220V/380V	220V/380V	380V
Speed(r/min)	2800	1400	1400
Weight(kg)	92	118	180

Suitable Raw Materials
Chopping corn stalk, rice straw, cereal grass, wheat straw, green weeds and other materials.
Applicable Animals
Packaging & Shipping
Normally, we adopt wooden case or container.If export to European countries,the wooden box will be fumigated.If container is too small,we will use PE film for packing or pack it according to customers special request.
Our transport operators & delivery facilities are ready on time and when the contains arrive at the factory , they are guaranteed to ship according to the scales .
Company Profile
After Sales Service
1) We can offer you one year warranty, except spare parts.
2) Professional and timely 24-hour after-sales service.
3) The relevant video of the machine installation and usage instructions will be provided to you.
4) We can provide you with different models to meet your different requirements.
5) We can also meet special voltage requirements.
Customer Feedback
FAQ

Q1:What is your applicable raw material ? ------Suitable for chopping corn stalk, rice straw, cereal grass, wheat straw, green weeds and other materials.

Q2:What is this capacity? ------5t/h.

Q3:What's the machine application? ------Suitable for the following animals:cows, sheep, horses and so on.

Q4:How many size we can produce with this machine? ------You can choose any size according to you need.

Q5: What's your payment terms? ------Payment terms: T/T; L/C; Western Union; Money Gram.
