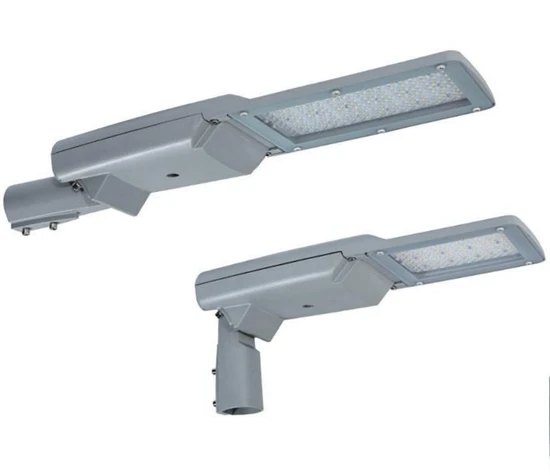

Powerful LED Street Lamp for Outdoor Lighting with CREE Chip
Basic Info.
Model NO.
Richard-LED01
Lamp Body Material
Aluminum Alloy
Power
80W, 100W, 120W, 150W, 200W, 220W
Application
Square, Highway, Garden, Parking Lot, Street
IP Rating
IP66
Certification
CCC, CE, EMC, LVD, RoHS, SASO
Input Voltage
110V, 220V, 277V, 100V-240V
With Light Source
With Light Source
LED Chips Brand
Semileds
Luminous Flux
≥150lm/W
Optional Beam Angle
60*150°/70*150°/80*150°
Power Factor(PF)
>0.95
CRI
Ra>70, Ra>80
Photocell
Optional
SPD
10kv/20kv
Ik Class
Ik10
Lens Type
Type II/Type III/Type IV/Type V
Working Temperature
-30~+60
Driver
Meanwell or Customized
Color of Houisng
Grey or Customized
Cover
Aluminum Alloy
Service Life (Hours)
80000hrs
Warranty
5 Years
Transport Package
Cartoon+Bubble Packing
Specification
660*290*190mm
Trademark
FOREVELIT
Origin
China
HS Code
9405409000
Production Capacity
10000PCS/Month
Product Description
RICHARD SERIES LED STREET LIGHTIntroducing the RICHARD SERIES LED street light by Yangzhou Forever Lighting Co., Ltd. This high-quality street light is designed to meet the reading habits of English-speaking natives, providing exceptional performance and energy efficiency.Product Highlights:
High output lumen efficiency, up to 160lm/wEnergy-saving with 70% reduction, ensuring a short ROI periodLong lifespan of up to 100,000hrs @ L70, resulting in low maintenance costUtilizes world-class, approbated quality components such as LEDs and driversSupports both horizontal and vertical mounting, suitable for different light polesTool-less opening of driver box for easy maintenanceComes with a 5-year warranty for added peace of mindStable performance, high luminous efficiency, and low luminous attenuationExperience a long service life with the Richard Series LED street lightTrust Yangzhou Forever Lighting Co., Ltd. to provide you with the best lighting solutions. Upgrade your street lighting with the exceptional quality and performance of the Richard Series LED street light.
Product Parameters
| Model | RICHARD-LED01 | RICHARD-LED02 |
| Wattage | 60W-120W | 120W-200W |
| LED Brand | CREE 3030/5050 or customized | |
| Driver Brand | Meanwell / Customized | |
| Input Voltage | 100-265V/277V/347V/480VAC | |
| Power Efficiency | >90% | |
| Power Factor | >0.95 | |
| Luminous Efficiency | ≥150 lm /w | |
| Lumen output | 7200-18000 lm (Lumen tolerance +/- 5%) | |
| Color Rendering Index | 70 | |
| Color Temperature | 2700K-6500K | |
| Optimal Operating Temperature | 25ºC | |
| Storage Temperatures | -40°C~55°C | |
| Working Environment | -40°C~+65°C, 10%~90%RH | |
| Total Harmonic Distortion | < 10% | |
| Lumen Maintenance | > 80,000 hours -L70, @25 ºC (77 ºF) | |
| Wind Index | Force 12 | |
| Body Materials | Die-casting aluminum | |
| Pole Fitter Diameter | 60mm | 76mm |
| Rating | IP66 IK08 | |
| Protection | Class I ( Class II optional) | |
| SPD | 10KV (20KV optional) | |
| Certification | CE,ROHS,LM80,LM79,IP66 IK08 etc | |
| Dimming Options | 1-10V or DALI or PWM or Timer | |
| Control Options | Photocell or Motion sensor or NEMA or ZHAGA for Smart control | |
| N.W | 5kgs | 6.5kgs |
| Size | 660*290*190mm | 760*290*190mm |
| Warranty | 5 years | |
