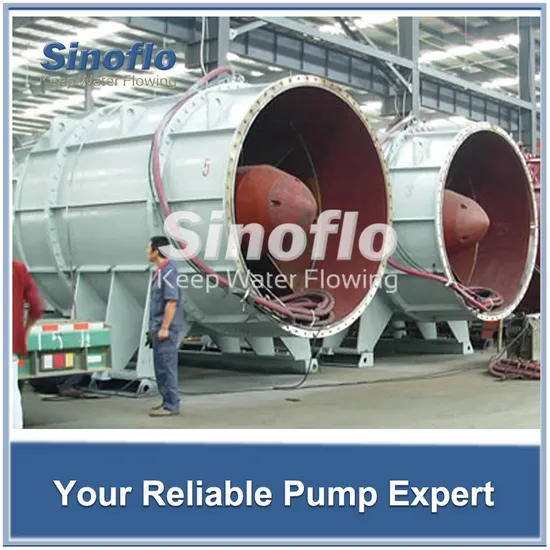

Axial Flow Tubular Impeller Pond Submersible Sump Water Booster Pumps

Product Description

Summarize of Axial Flow Tubular Impeller Pond Submersible Sump Water Booster Pumps
Installation of water flow Channel: in terms of recommended sample installation diagram
The form of water exit: flap valve or other ways
Installation ways: Floor fixed type, suspended type, floated type and diagnal installed type;
Motor of Axial Flow Tubular Impeller Pond Submersible Sump Water Booster Pumps Submersible motor Power Level: electrical performance conforms to GB756 Protection level: IP68 Voltage grade: ≤1300kw, voltage, 380v, 660v, 6000v, 10000V Insulation level: F Rated frequency: 50Hz/60Hz
Shaft seal of Axial Flow Tubular Impeller Pond Submersible Sump Water Booster Pumps
There are two or three stages of mechanical seal. The first stage called carborundum (directly contact with water). The second and third stage called graphite and carborundum.
Leak proof Equipment of Axial Flow Tubular Impeller Pond Submersible Sump Water Booster Pumps
Sinoflo Axial/Mixed Flow Pump have been equipped with leak proof sensors. When the oil tank, the inner part of motor or the junction box has been leaked by water, the sensor will signal or made the motor shut down, and retain the malfunction signal.
Over heating protection system of Axial Flow Tubular Impeller Pond Submersible Sump Water Booster Pumps
A overheating protection device is fastened on the motor winding. When the temperature exceeds the stated value, the device will signal or made the motor shut down.
Rotation direction:
Seen from the top of the motor, the impeller is rotating clock wisely.
Application of Axial Flow Tubular Impeller Pond Submersible Sump Water Booster Pumps
Sinoflo axial/mixed flow pump is widely used in industry and agriculture water lifting, urban water supply, light polluted water discharge and other water transfer project.
Working condition of Axial Flow Tubular Impeller Pond Submersible Sump Water Booster Pumps
Clean water with the temperature no more than 50 or some liquids that are similar to water.
