CNC Plasma Profile Cutter CNC Plasma Gas Cutting Machine

Product Description

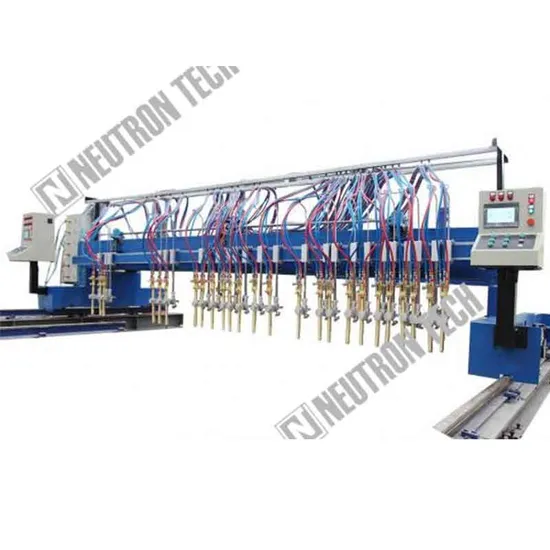

With several flame torches equipped, strips flame cutting machine is characterized of stable running and high effi ciency, can be widely applied for strips cutting of carbon steel, manganese steel and other materials.Multi-cutting torches and CNC heterotypic torch system can be customized accordingly, also, automatic height adjusting system. Strcture:The beam adopts Germany Messer technology; gantry type frame, eliminate the structural torsional moment better, beam is box type structure, not rectangular tube steel, after welding, use annealing treatment to eliminate internal stress, the deformation does not occur in the years of use Cutting torch lifting rack for torch automatic lifting. The mechanical transmission system is through precision rolling bearings and the meshing of class 7 precision gears and racks. The drive system adopts planetary reducer, the input /output error is only 16 minute of arc, at the same time, in the transverse/ longitudinal gear transmission structure, increases the device of automatic compensation gap, so that the transmission structure can accurately perform the directives issued by the Cnc system. Drive end beam: longitudinal rail clamping device adopts automatic guiding structure, not the eccentric wheel clamping structure, by the spring force of the automatic guide structure, making it steady running on two tracks, no clamping wheel tight, partial loose phenomenon, its leverage ratio is All equipment spare parts are of black, electroplating and other surface treatment.
Machine is sand blasting and primer spray, face paint using orange peel paint, color is blue or yellow.
Product parameters
Product display
Customer visit
Certifications
Company information
Packing & Shipment
FAQ:
1.Does your company accept customized offer, we have special need?
We are a company that focuses on research and manufacture of modular cnc machines. We have a very rich experience and strong machine tool research and development capability. We are very willing to offer you customized highly-efficient equipment as long as you have certain amount of needs.
2.What certificate the machine in your company get?
We've passed the ISO9001 Quality System Approval and CE Certification.

3.What's your methods of transportation?
For most countries, we will transport our machine by sea, as for inland countries, we may use railway or highway transportation. Exported cnc machine is all be packed by wooden case which can be fixed into a 40 HQ.

5.If the machine is out-of-warranty, how to charge the cost of accessories?
For the out of warranty machine which needs to replacement parts, we will charge according to the parts quotation. If you have any questions, please email us for consultation.
6.Does have maintenance manual and operation manual?
Each cnc machine leaving the factory will be along with related series or model the English instructions including maintenance manual and operation manual. Attached documentations may also include cnc controller instruction, parts instruction you bought(like rotaty table, oil cooler)
