2400mm Corrugating Medium Paper Making Machine

Product Description

2400mm Corrugating medium paper making machine
I.Technical parameter
Raw materials: waste carton
Output paper: white liner paper;high strength fluting paper
Net paper width:2400mm
Output paper weight:90-200g/m2
Capacity: 30 T/D
Working speed: 60-120m/min
Designing speed:150m/min
Wire width: 2950mm
Rail gauge:3400mm
Drive way: Alternating current frequency converter speed control, sectional drive.
11. Paper driness :
out of cylinder mould:12%-16%
before into dryer: 42%-44%
end product:92%
II.paper machine part
1.Cylinder part: 3sets Φ1500mm×2950mmx3400mm stainless-steel plate cylinder; 3sets Φ450mm×2950mmx3400mm couch roll;1set Φ500mm×2950mmx3400mm reverse roll.
2.Squeeze part: Φ400mm×2950mm squeeze roll,2 pcs, rubber hardness HS-90ºC±2, pneumatic loaded device
3.Pre-press part: Φ550mm×2950mm top roll,one pcs of natural marble stone roll; Φ500mm×2950mm bottom roll, one pcs of rubber roll; rubber hardness HS-95ºC±2, pneumatic loaded device
4.Press part :Φ750mm×2950mm, 2 pcs of natural marble stone rolls ; Φ700mm×2950mm rubber roll,2pcs; rubber hardness HS-97ºC±2, pneumatic loaded device
5.Dryer part: Φ1500mm×2950mmx3400mm alloy dryer can 12 pcs, arrangement: 8+Sizing machine +4, including 2 pcs chrome plated dryers, 12 sets of blades
6.Sizing part: sizing machine up roll Φ700mm×2950mmx3400mm, bottom roll Φ705mm×2950mmx3400mm, rubber coated hardness HS-98ºC±2
7.Calendering machine:2400mm type double roll machine

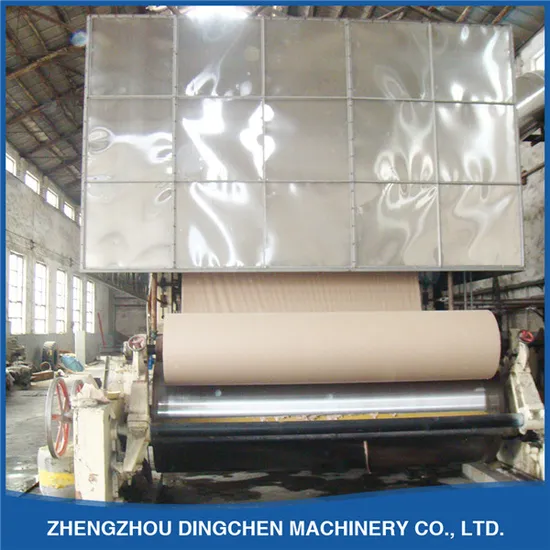

8.Reeling part: 1set 2400mm horizontal pneumatic winding machine, winding sweat cylinder Φ1500mm×2950mmx3400mm
9.Rewinding part: one set of 2400frame-type rewinding machine
Company Information
Zhengzhou Dingchen Machinery Co., Ltd., located in Central China, is a professional machinery manufacturer focusing on the R&D and production of paper making machines.Our products include paper making machines,pulp making machine,parts and paper converting machines such as kraft paper machines,corrugated paper machines,tissue/toilet paper machines,office paper machines, newspaper machines and so on. Our factory gathers and trains many essential technicians and management system to ensure all products meet the quality of ISO and update constantly!
Our products have been exported to many countries and regions, such as America, Egypt, India, Fiji, Iran, Ghana ,Paraguay, Russia, Syria,Pakistan, Tanzania, and Uzbekistan. Our products and services have won customers' consistent affirmations.
have won customers' consistent affirmations.
We have a large scale of products regarding paper machinery, including:
A.Pulping equipment (D-type hydrapulper, cleaner, DD refiner, pressure
screen, screen basket, pulp pump etc.)
B.Paper machinery (Tissue/Toilet paper machine, Multi-fourdrinier paper
machine, head box, cylinder mould, dryer cylinder, roller etc.)
C.Paper making finished devices (Paper calender, pope reel,size press,
paper rewinder etc.)
Meet customers' requirements and exceed customers' expects.
We wish to found long-termcooperation with your company
Technical Advantage
1.Experienced producing team
2.Advanced technological strength
Product Advantage
1.Through the international authentication
2.The same material the most preferential price
3.A lot of varieties for the customer to choose
Service Advantage
1.Technical consultation
2.Project evaluation
3.Detailed design of factory
4.Installing and testing the whole production line
5.Training engineers and workers
6.Supplying spare parts for long time
The business process
1.send your requirements:raw material,capacity,paper grammage
2.we make the solution to you
3.come visit and negotiate
4.sign contract
5.first payment
6.production
7.pay spare money
8.delivery
9.installation ,training,test run
10.production consultlation Packaging & Shipping Our Services FAQ
