3/4/5/6 Axles 60/80/100/120 Tons Heavy Duty Removable Gooseneck Detachable Front Loading Lowbed Lowboy Low Bed Deck Loader Excavator Carrier Truck Semi Trailer
Basic Info.
Model NO.
DR9200TDL
Type
Semi-Trailer
Load Capacity
80T
Certification
ECE, GCC, CE, ISO9001, DOT, CCC, ISO/TS16949
Wheel Base
8000-9000mm
Tread
1820mm
Grade
Heavy Duty
Types of Suspension Systems
Mechanical/Air Suspension
Shape
Lowbed
Axle Number
4
Tire Number
16
Self-dumping
Not Self-dumping
ABS Anti-lock Braking System
ABS Anti-lock Braking System
Material
Carbon Steel
Condition
New
Product Name
Lowbed Semi Trailer
Axle
2/3/4*13/16t
Suspension
Mechanical Suspension Air Suspension
Landing Gear
Jost Standard 28ton
Tare Weight
60000-120000kg
Tire
11.00r20 12.00r20 12r22.5
Color
Customers Optional
King Pin
2"(50mm)Or3.5"(90mm) Jost
Platform Plate
5mm Diamond Plate
Main Beam
500mm Height Q345b
Axle Brand
Fuwa/BPW/Derun
Diesel Machine
Weichai
Brake Air Chamber
T30/30+T30
Brake System
Wabco
Leaf Spring
100*12*12layers
Transport Package
Bulk Vessel
Specification
13000*3000
Trademark
DERUN
Origin
Shandong, China
Production Capacity
50000 Units/Year
Packaging & Delivery
Package Size
1300.00cm * 300.00cm * 380.00cm
Package Gross Weight
12000.000kg
Product Description

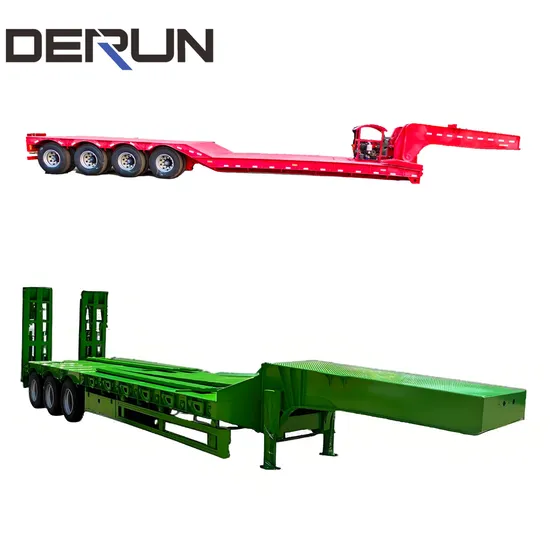

3 4 5 6 Axles 60 80 100 120 tons Heavy Duty Removable Gooseneck Detachable Front Loading Lowbed Lowboy Low Bed Deck Loader excavator Carrier Truck Semi TrailerThe lowbed semi-trailer, also commonly referred to as a flatbed semi-trailer or simply a lowboy, is a specialized type of heavy-duty transportation equipment designed for hauling exceptionally large, tall, or heavy cargo that cannot be accommodated by standard trailers. Its defining feature lies in its low deck height, which allows for the loading and transportation of oversize loads without exceeding legal height restrictions on the road. Product Parameters
| Trailer Model | Low bed Semi Trailer |
| Dimension(Lx W x H)(mm) | 13000*3000 |
| Curb Weight(KG) | 9500 |
| Loading Weight( KG) | 60000-120000 |
| Axle Brand | BPW/FUWA/DERUN |
| Axle Number | 3/4/5 |
| Suspension system | Mechanical/Air suspension |
| Leaf Spring | 120x16 mm x 10 layers |
| Frame | The height of the beam is500mm,upper plate is 20mm,down plate is 20mm,middle plate is 12mm.according to the buyer's requirement |
| Platform plate | 5mm Diamond Plate |
| Tire Type | 11.00R20 12.00R20 12R22.5 |
| Traction Pin | 50inch or 90inch |
| Spare Wheel Bracket | 2 picecs |
| Tool Box | 1 Unit |
| Landing Gear | 28T load landing leg |
| Rear Ladder | Enhanced Mechanical Ladder |
| Brake system | Dual Line braking system ,none ABS. |
| Brake air chamber | 6 air chambers |
| Electrical system | 24V,7 Pole plug,Tail lamp with turn signal, brake light & reflector, side lamp etc.,One set 6-core standard Cable. |
| Painting | Color by customer's requirement |
| Packing | Polish with wax before shipping |
| Delivery way | Transfer to China port, and carry by ro-ro ship, the freight cost depends on the volume. |
1.What's the lead time?Normally, it's 15 to 20 days after we received the deposit or 100% L/C at sight. And the specific delivery time should depend on the quantity of your order.
2.How about your warranty?We support one-year warranty time. During this period, if there are accessories damage, we would provide new ones for free.
3.What's your payment terms?T/T: 30% or 40% of the total as deposit, the balance should be stteled before shipment; L/C: 100% irrevocable Credit of Letter at sight.
