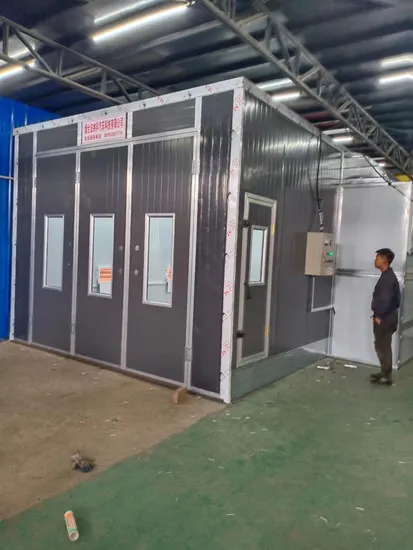

Spray Booth Paint Booth Car Baking Oven for Sale Car Paint Oven
Basic Info.
Model NO.
FA-S001
Type
Spray Booth
Certification
CE
Substrate
Aluminum
Coating
Painting
Airflow Direction
Fully Undershot-type
Heating Mode
Electric
Paint Mist Treatment
Dry-type
Condition
New
Transport Package
569cm*213cm*218cm
Specification
3000kg
Trademark
Fanake
Origin
China
HS Code
8419899090
Production Capacity
600/Piece/Year
Product Description
| FA-S001electric heating Spray Booth | |||
| Outside Dimensions(mm) | 7000*5350*3400(L*W*H) | Inside Dimensions(mm) | 6900*3900*2650(L*W*H) |
| Front Door(mm) | 2800×2600mm(W×H) | Service Door(mm) | 650*1800(W×H) |
| Total Power | 12.5 kw | Voltage | 380V/50Hz/3Ph; 380V/60Hz/3Ph,etc. |
| Cabin System | Wall Panel | 75mm EPS colorful steel skin board, tongue& groove style compound construction, anti-flame and heat-insulation, steel sheet thinkness: 0.476mm | |
| Ceiling Panel | 0.8mm Galvanized Steel Sheet | ||
| Basement | Grid Plates (Galvanized)* 2 rows, made of 30x4mm flat bar and 10mm twisted steel,surface galvanised treatment. Diamond Plates (Powder Coated or Galvanized)* 3 rows. 2 ramps,each size 800x2,000mm(WxL) | ||
| Front Door | 3 folds,size is 2,800×2,600mm(W×H), equipped with Handle & Lock | ||
| Service Door | size is 650×1,800mm(W×H),equipped with Handle & Anti-Explosion Lock | ||
| Air Make-up System | Air-Intake Fan System | 2*4KW Centrifugal fan | |
| Air-Exhaust Fan System | 1*4KW Centrifugal fan | ||
| Air Capacity | 24000m³/h | ||
| Air Flowing Speed | 0.35m/s in empty booth | ||
| Purification System | Primary Filter | Filtering rate > 83% G3 Grade(EN779),type is C16-300 ; Fibre glass filter, G3 Grade(EU-3) | |
| Air-Intake Filter | Filtering rate > 97% Supporting net is made of C shape steel with surface painted treatment,sub-high efficiency filter,F5 Grade(EU-5) | ||
| Heating System | Heating Exchanger | Heating Exchanger*1unit,made of 1.5mm stainless steel SUS304,round type multi-cycle,radiatorpipe. | |
| Heating Burner | Diesel Burner*1unit (Italy RIELLO, G20), Heating capacity: 180,000Kcal/H Belimo NMU230 20NM electric damper | ||
| Max. Heating Temperature | 80ºC | ||
| Fuel Consumption | 5-8kg/vehicle, Heating Time: 4-6min(20-80ºC) | ||
| Lighting System | Ceiling Light | 8 Units, total 32pcs, 16w LED lamp, with Light Fixtures, anti-explosion designed | |
| Side Light | 8 Units, total 32pcs, 16w LED lamp, with Light Fixtures, anti-explosion designed | ||
| Illumination | ≥1000LUX | ||
| Controlling System | Switched Control Panel | Button type control box, with main switch Spraying & baking switch, lighting switch, emergency stop, Breakdown alarm, temperature timer, time accumulator etc. | |
| Accessories | All Hardware, Fasteners, and Sealants | ||
