Single Dipole FM Antenna for Radio Transmitting

Product Description

Single Dipole FM Antenna for Radio Transmitting Product Description Overview of Transmitting Antennas
The FM single dipole transmission antenna is primarily used in FM broadcasting transmission systems to efficiently radiate the RF power signal output by the FM transmitter.
The antenna's radiating element is constructed from 304 stainless steel, with the inner conductor made of silver-plated copper.
This design offers advantages such as excellent corrosion resistance and a wide channel bandwidth.

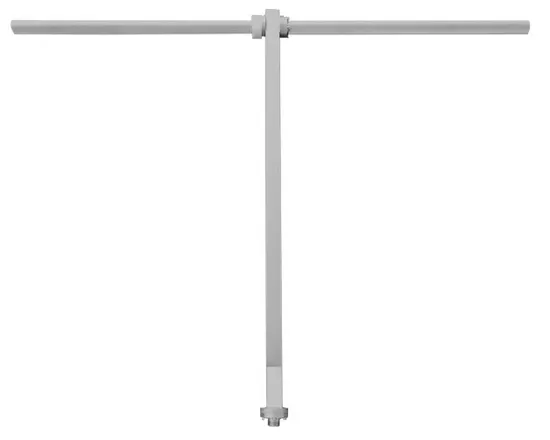

Detailed Photos
Array Horizontal Directional Diagram
Product Parameters Array Parameters

Layer	Phase	Gain(dB)	Weight(kg)	Height(m)
1	1	2	10	1.5
2	1	4.5	20	3.0
3	1	6.5	30	4.5
4	1	7.5	40	6.0
6	1	9.5	60	9.0
8	1	10.5	80	12.0

Technical Parameters

Electrical performance			Mechanical performance
Frequency range	87~108MHz		Antenna material	Radiating element: 304 stainless steel inner conductor with silver-plated copper.
Input impedance	50Ω		Wind resistance	200km/h
Standing wave ratio (SWR)	< 1.1 (Specify frequency)		Dimensions	1360*1060*60mm
Gain	2dB (Single element)		Weight	10 kg (Single element)
Maximum power handling	0.1~10kw		Pole diameter	Ø50mm~Ø110mm
Polarization mode	Vertical polarization
Input interface	L27/IF45/IF70/IF110
Lightning protection	Directly grounded
Ambient temperature	-40~60ºC
