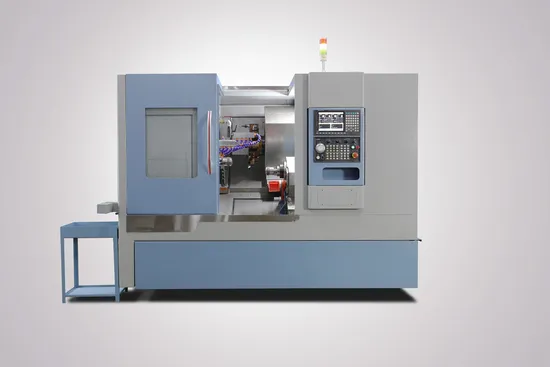

High Performance Slant Bed Dual Spindle Turning Lathe CNC Machine Tools

Product Description

Product Description
Usage:
Two spindle CNC machine tools are widely used in various mechanical processing fields, especially in industries that require high precision and high efficiency processing. For example, automobile, motorcycle, valve, pressure vessel and other machinery, hydraulic, oil circuit and other manufacturing fields, as well as aerospace, mold and other fields. This kind of machine tool can process two workpieces or multiple surfaces at the same time, which is suitable for the processing of various complex parts.
Features:
High efficiency: Two Spindle CNC Machine Tools have two spindles, which can process at the same time.
High precision: Two Spindle CNC Machine Tools have high requirements for machining accuracy, and can achieve particularly high precision cutting requirements, such as internal and external roundness accuracy, roundness, coaxiality, etc..
Saving space and labor costs: Since a Two Spindle CNC Machine Tools is equivalent to the function of two machine tools, it can save a lot of space in the production workshop. Furthermore,the machine can carry out two procedures at the same time, so it can reduce the number of operators and lower labor costs.

Product Parameters

Project		Name	specification	Unit
Process range		Max bed rotating diameter	Φ400	mm
		Maximum processing length	500	mm
		Maximum processing diameter (shafts)	Φ75 Φ45	mm
		Maximum processing diameter (disk type)	Φ400	mm
X / Z / Y X2 / Z2 / Y2		X / Z / Y axis travel	500 / 600 / 100	mm
		X2 / Z2 / Y2 Axis Travel	400 / 650 / 300	mm
		Repetition accuracy X / Z / Y	±0.003	mm
		Position accuracy	±0.005	mm
Movement		X / Z / Y	30/30/28	mm
		X2 / Z2 / Y2	30/30/18	mm
Screwdriver		X / Z / Y	32/36/40	mm
		X2/Y2/Z2	32/33/25	mm
Rails		X / Z / Y	35/35/30	mm
		X2/Y2/Z2	30/35/25	mm
Turrets		Turrets	12T
		Turning tool specifications	25X25(rectangular)
		Bore cutter specification	Φ25 Φ32	mm
Spindle		Positive/sub spindle nose form	A-26(75) / A2-5(45 ) - A2-4(36)	/
		Through-hole diameter of main/sub spindle	Φ75(Φ45) / Φ36	mm
		Positive/sub spindle speed	3500-4500 / 5000	rpm
Control System		Positive/sub spindle motor power (electric spindle)	18.5 / 7.5	kw
		X / Z / Y axis servo motor	3.0 /2.2 / 2.0	kw
		X2/ Z2 / Y2 axis servo motor	1.8 / 2.0 / 1.0	kw
		Turret power head milling cutter motor/backside shaft end motor	2.0 / 1.0	kw
Dimension		Length/Width/Height	2700 X 1950 X 2050	mm
		Heavy	4.9	T

Detailed Photos
Turret: Each turret can be configured with multiple tools (e.g. 12), some of which have a powered holder (e.g. 8) for rotary-based cutting and some of which are unpowered (e.g. 4) for rotary-based cutting. This multi-tool configuration allows the machine to respond flexibly to a wide range of machining requirements.
Spindle: Dual spindle dual turret lathe is not only capable of completing the turning processing of external circle and end face, but also capable of carrying out a variety of processes such as continuous processing of front and back surfaces, milling plane surfaces, drilling center holes, opening side grooves, and carrying out slanting holes of arbitrary angles and slanting surface processing.
This multi-process, multi-functional composite machining capability greatly reduces the auxiliary time and improves the machining accuracy and efficiency.

CNC system: Double spindle Swiss CNC turning bench lathe is controlled by advanced CNC system, which realizes automatic machining through computer program. The CNC system includes hardware and software parts, the hardware part includes CNC unit, servo motor, drive, sensor, etc.; the software part includes machining program, user interface, data processing and so on.
Automatic Measurement and Compensation System: This system can realize online detection and correction of the machining process to improve the machining accuracy and stability. Various parameters in the machining process (such as temperature, vibration, cutting force, etc.) are monitored in real time by sensors, and the machining process is adjusted and optimized in real time according to the monitoring results.

Processing Range
Suitable for the following types of parts due to its unique design and functional features:
Parts with high precision requirements:
Equipped with a high-precision motion control system and an automatic measurement and compensation system, the twin-spindle CNC lathe is able to ensure that the machined parts require high precision. This gives it a significant advantage in machining parts that require high precision.
Complex shaped parts:
The lathe has five-axis linkage processing capability, which can process complex parts and surfaces, such as internal and external cylindrical surfaces, conical surfaces, stepped surfaces, spherical surfaces and various rotary surfaces and other geometrically complex parts.
Parts with multi-process and multi-function requirements:
The design of dual spindles and dual turrets makes the machine capable of simultaneous multi-axis machining, completing a wide range of processes such as external round and face turning, continuous machining of front and back surfaces, milling flat surfaces, drilling center holes, opening side grooves and performing slanting and beveling of holes at arbitrary angles.
Parts with wide material adaptability:
It is able to meet the rough and finish machining needs of rough cast and forged parts made of various high-temperature alloys, titanium alloys, heat-resistant alloys, stainless steel, cast iron, cast steel and other materials. This wide material adaptability makes it a great potential for applications in different industries.
Our Advantages

Dongguan Luotuo Industrial Co.,Ltd provides professional pre-sales consulting services, recommending suitable CNC lathe models and configurations according to customer needs. We are able to answer customer questions and provide technical support. We can make customized solutions according to customer needs, including equipment selection, process design, installation and commissioning and other one-stop services to meet the individual needs of customers.
Adopting advanced CNC system to realize precise control and efficient machining. Support complex programming and parameter adjustment to ensure machining accuracy and efficiency.
CNC lathe utilizes high quality materials and precision manufacturing process to ensure the stability and reliability of equipment operation. Reduce the failure rate and maintenance cost, and improve productivity.
Packaging & Delivery
FAQ
1. What are the Payment Terms?
A: We accept T/T. A 40% initial payment is required when placing the order, with the remaining 60% balance due before shipment.
2. What are your Trade Terms?
A: We are flexible with trade terms and accept FOB, CFR, and CIF.
3. When is the Delivery Time?
A: For standard machines, delivery can be arranged within 30 days. Custom or special machines may require a longer lead time. You can place your order based on the provided delivery and shipping schedule.
4. What is your Minimum Order Quantity and Warranty?
A: The minimum order quantity (MOQ) is one set, and our machines come with a one-year warranty.
5. How are the Machines Packaged?
A: Our machines are securely packed in standard wooden cases to ensure safe delivery.
6. How Can I Choose the Most Suitable Machines?
A: Provide us with your specifications, and we will help you select the best model. Alternatively, you can choose a specific model if you have one in mind.
