3-15ton/H Agriculture Bottom Discharge Disc Hay Chaff Cutter
| US$6,500.00-11,200.00 | 1 Piece (MOQ) |
Basic Info.
Model NO.
RH-FS-60
Usage
Forage Equipment
Application
Sheep and Cattle
Power Source
P.T.O
Heating and Ventilation Equipment Type
Air Duct
Epidemic Prevention Equipment
Mobile Vaccination Car
Blade Type
Curved Teeth
Computerized
Non-Computerized
Certification
CE
Condition
New
Warranty
2 Years
Weight
1100kg
Power
22kw
Capacity
2-3ton/H
Length of Cutting
50-200mm
Transport Package
Wooden Box Packing
Specification
2700*2000*2100mm
Trademark
JWM
Origin
China
HS Code
8437800000
Production Capacity
1000sets/Year
Product Description

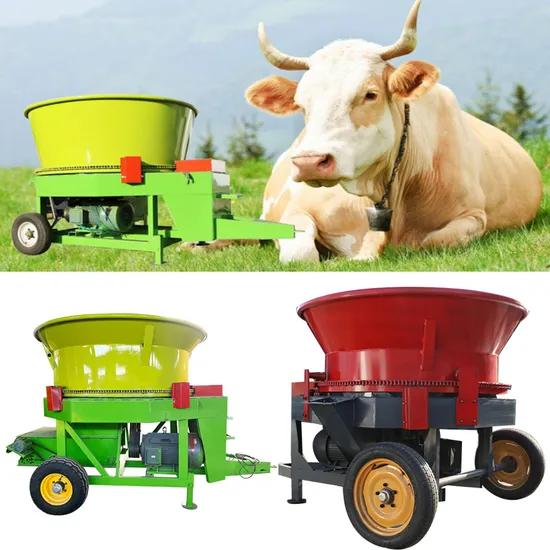

Product DescriptionDisc Straw Rotary Cutter
It is mainly used for crushing crop straw, wheat straw, peanut stalk, sweet potato stalk, tobacco stalk, cotton stalk, bean stalk, corn stalk, pasture, seaweed and various branches, etc. The bale shredder is to put the bundled and bundled materials directly into the rotary cutter to shred the materials. The machine rotates the blades to shred the materials. The output is high, and the fresh and dry materials can be shredded directly. The machine performance is stable. Output according to user requirements. The bale shredder consists of a frame, a rotary cutter, a feeding device and an overload protection device. The machine is reasonable and simple, has a long service life and is not easy to be damaged. The blade of the rotary cutter rotor is sharp and the blades are matched in a variety of ways
Features
1. The turntable can store a large amount of materials to realize intermittent feeding.
2. The inner disc of the rotating disc is equipped with a damping plate, which can catch the bale and rotate it, and the cutting efficiency is high.
3. High chopping strength.
4. Breaking into bundles saves more human resources.
Product Parameters
| Model | Power | Dimension | Capacity | Weight |
| RH-FS-60 | 22kw | 2700*2000*2100mm | 2-3ton/h | 1100kg |
| RH-FS-100 | 45kw | 3200*3500*2200mm | 5-8ton/h | 2000kg |
| RH-FS-130 | 90kw | 3400*2600*2600mm | 8-15ton/h | 3000kg |
