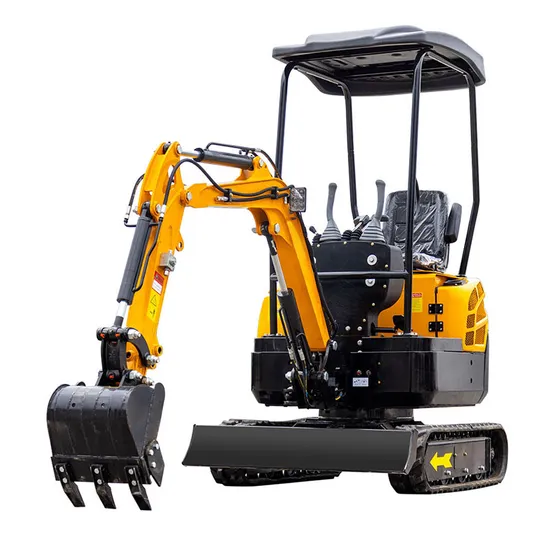

Latest Design Best Quality 1.3 Ton Mini Excavator Chinese Digger

Latest Design Best Quality 1.3 Ton Mini Excavator Chinese Digger

US$6,000.00-8,000.00 1 Piece (MOQ)

Basic Info.

Model NO.
13
Usage
Special Excavator
Bucket
Grab Shovel
Transmission
Hydraulic Transmission
Drive Type
Electric Drive
Bucket Capacity
>1.5m³
Size
Medium-Sized
Certification
CE, ISO9001: 2000
Condition
New
Rated Speed
2-4 Km/H
Maximum Digging Height
2700 mm
Maximum Digging Depth
1710 mm
Max Digging Radius
2910 mm
MOQ
One Unit
Application
Construction Digging
Engine Brand
Koop
Power
10.2kw/2500rpm
Machine Weight
1300kg
Transport Package
Packed in Wooden Case
Specification
2330 * 1100 * 2270mm(L*W*H)
Trademark
MDL
Origin
China
Production Capacity
50 Set/Sets Per Month

Product Description


1.3 ton Excavator (13)
Product Parameters
Transport
2325 mm
Total width
1100mm
Upper width
990 mm
Total height with roof top
2270 mm
Track width
180 mm
Track gauge
920 mm
Bulldozer height ground clearance
105 mm
Bulldozer digging depth
270 mm
Tail turning radiuS
795 mm
Track grounding length
1050 mm
Track length
1545 mm
Engine
KOOP Optional:B& S,CHANGCHAI,KUBOTA
Main valve
BEIFANG
Max. digging height
2700 mm
Max. Dumping Height
1840 mm
Max. digging depth
1710 mm
Max. digging distance
2910 mm
Min. radius
1530 mm
Max. height at min. turning radiusf
2100 mm
Operating
1300 kg
Bucket capactity
0.025 m3
Working device form
Backhoe
Climbing capability
30°


Product Description
Company Profile

Packaging & Shipping
FAQ
1.What kind terms of payment can be accepted?For terms of payment, L/C, T/T, Western Union (can be) could accepted.2. What certificates are availble in Machinery?For the certificate, we have ISO,EPA,SGS and CE.3.What about the delivery time?7-20 days after receiving the deposit.4.What about the warranty time?12 months after shipment or 2000 working hours, whichever occurs first.5.What about the Minum Order Quantity?The MOQ is 1 pcs.
6.How to show your manufacture to customers?It depends on you,if you have time,you can come to visit our manufacture. If you do not have time,then we can have vedio call,then show you around our workshop. Our workshop is working from 8:00 am to 5:00pm in Beijing Time!
